| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_001T03_9000003602_24410cztM0_level2.evt | modeM0/AS1A07_001T03_9000003602_24410cztM0_level2_quad_clean.evt |
| Size (bytes) | 185,803,200 | 38,923,200 |
| Size | 177.2 MB | 37.1 MB |
| Events in quadrant A | 1,318,791 | 250,655 |
| Events in quadrant B | 1,341,866 | 256,100 |
| Events in quadrant C | 1,364,592 | 240,310 |
| Events in quadrant D | 1,412,896 | 234,805 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5651 | 1 |
| B | 0 | 5682 | 1 |
| C | 0 | 5688 | 1 |
| D | 0 | 5972 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2741 | 75 | 2.736228% |
| B | 2741 | 96 | 3.502371% |
| C | 2741 | 115 | 4.195549% |
| D | 2741 | 82 | 2.991609% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3101 | 2743 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3101 | 2743 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3101 | 2743 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3101 | 2743 | 13 | 13 | 0.42% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4366 | 57.28 | 341 | 333 | 70.4 |
| A | 3 | 137 | 3241 | 41.3 | 341 | 333 | 70.4 |
| A | 0 | 226 | 2824 | 35.38 | 341 | 333 | 70.4 |
| B | 12 | 111 | 8292 | 117.01 | 342 | 332 | 68.0 |
| B | 11 | 111 | 7341 | 103.03 | 342 | 332 | 68.0 |
| B | 14 | 111 | 6654 | 92.93 | 342 | 332 | 68.0 |
| C | 14 | 238 | 51762 | 643.98 | 334 | 335 | 79.9 |
| C | 7 | 247 | 4339 | 50.14 | 334 | 335 | 79.9 |
| C | 2 | 16 | 3578 | 40.61 | 334 | 335 | 79.9 |
| D | 1 | 52 | 116990 | 1398.77 | 335 | 323 | 83.4 |
| D | 8 | 195 | 16808 | 197.65 | 335 | 323 | 83.4 |
| D | 2 | 234 | 13601 | 159.2 | 335 | 323 | 83.4 |

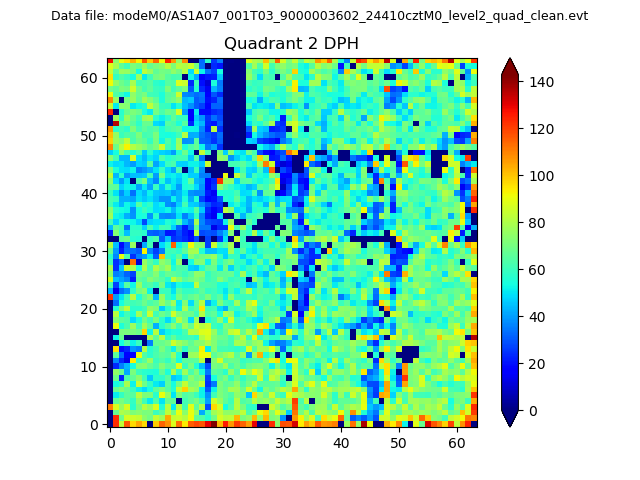

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

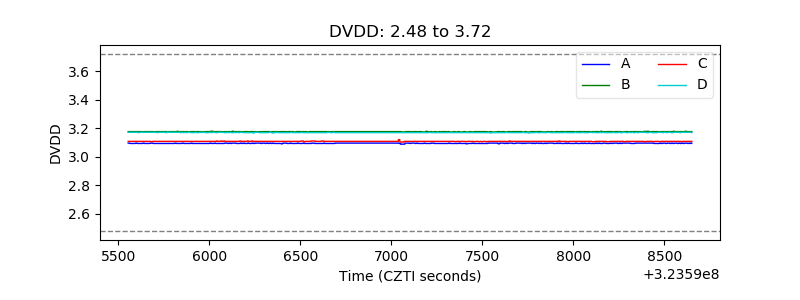

| D_VDD |  |
| Temperature 1 |  |

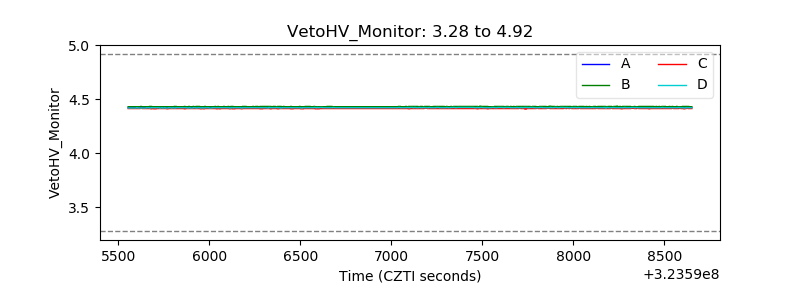

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

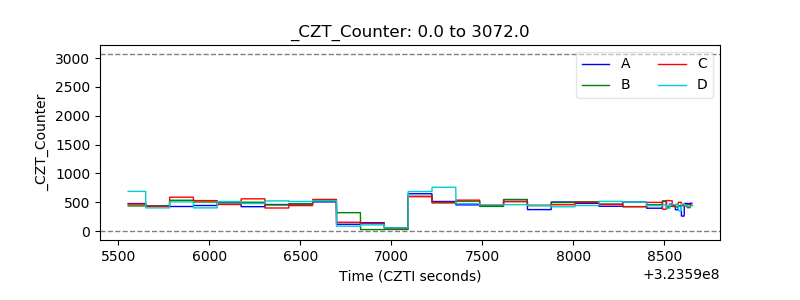

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
