| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003604_24416cztM0_level2.evt | modeM0/AS1A07_054T01_9000003604_24416cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,846,720 | 130,893,120 |
| Size | 455.7 MB | 124.8 MB |
| Events in quadrant A | 3,093,975 | 898,441 |
| Events in quadrant B | 3,374,899 | 906,456 |
| Events in quadrant C | 3,511,379 | 874,637 |
| Events in quadrant D | 4,058,022 | 839,753 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13566 | 2 |
| B | 0 | 14323 | 2 |
| C | 0 | 14486 | 2 |
| D | 0 | 16521 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6373 | 35 | 0.549192% |
| B | 6373 | 124 | 1.945708% |
| C | 6373 | 102 | 1.600502% |
| D | 6373 | 256 | 4.016946% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6373 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7507 | 6373 | 18 | 18 | 0.24% | 0.28% |  |
| C | 7507 | 6373 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7507 | 6373 | 138 | 138 | 1.84% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10823 | 63.2 | 802 | 786 | 158.8 |
| A | 0 | 226 | 7007 | 39.17 | 802 | 786 | 158.8 |
| A | 3 | 137 | 6644 | 36.89 | 802 | 786 | 158.8 |
| B | 15 | 33 | 137763 | 921.93 | 794 | 773 | 148.6 |
| B | 3 | 64 | 60243 | 400.23 | 794 | 773 | 148.6 |
| B | 0 | 190 | 51011 | 338.1 | 794 | 773 | 148.6 |
| C | 10 | 9 | 190093 | 1058.87 | 778 | 783 | 178.8 |
| C | 7 | 247 | 156431 | 870.59 | 778 | 783 | 178.8 |
| C | 14 | 238 | 124002 | 689.2 | 778 | 783 | 178.8 |
| D | 9 | 1 | 548620 | 2910.65 | 776 | 752 | 188.2 |
| D | 1 | 52 | 450348 | 2388.56 | 776 | 752 | 188.2 |
| D | 8 | 195 | 87227 | 459.41 | 776 | 752 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

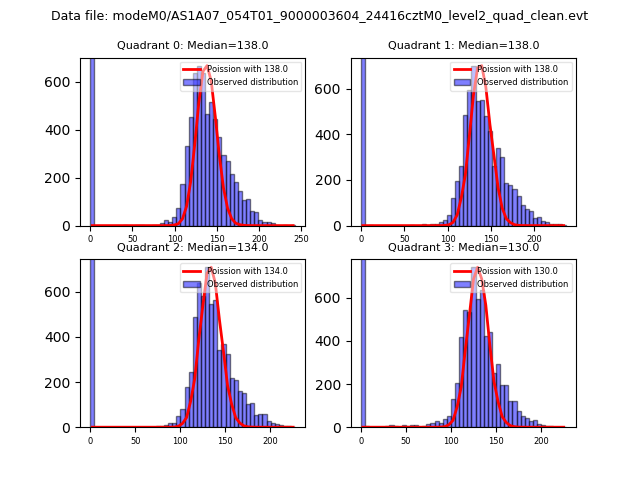

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

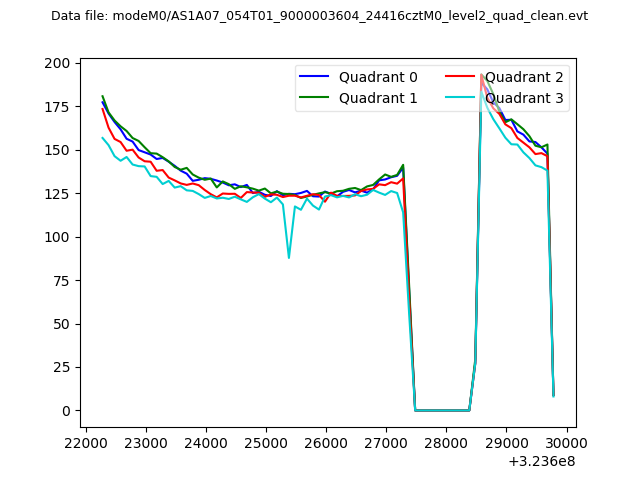

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

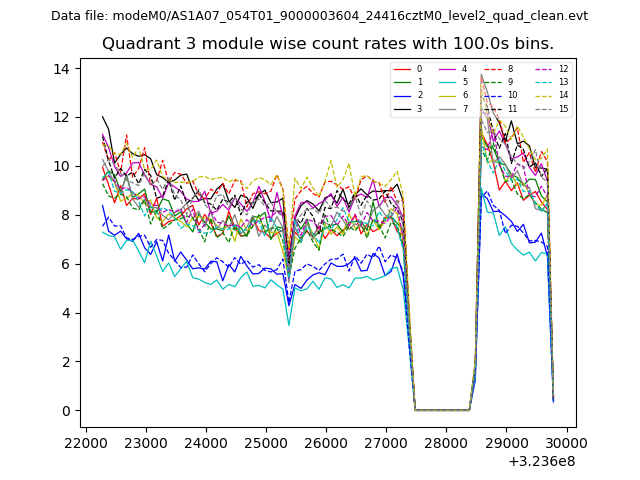

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

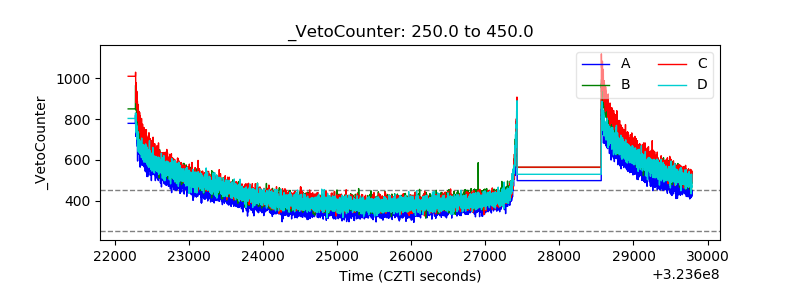

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

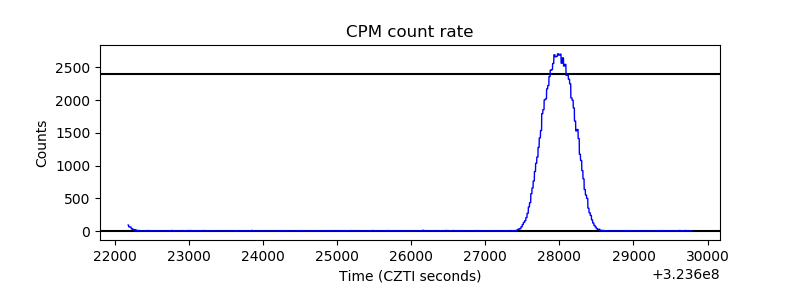

| _CPM_Rate |  |

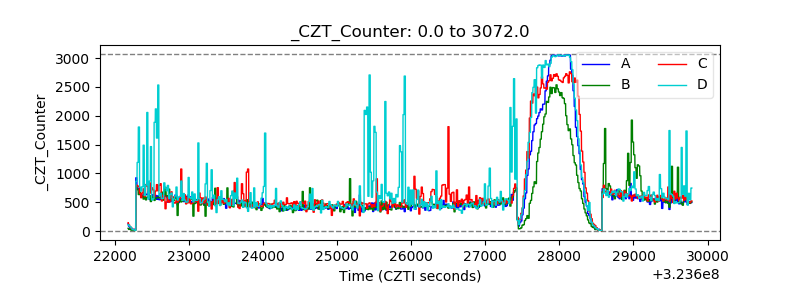

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
