| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003606_24431cztM0_level2.evt | modeM0/AS1T03_183T01_9000003606_24431cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,029,120 | 125,533,440 |
| Size | 493.1 MB | 119.7 MB |
| Events in quadrant A | 3,292,900 | 862,214 |
| Events in quadrant B | 3,326,260 | 882,908 |
| Events in quadrant C | 3,209,967 | 819,508 |
| Events in quadrant D | 5,390,754 | 786,468 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14222 | 2 |
| B | 0 | 14110 | 2 |
| C | 0 | 13773 | 2 |
| D | 0 | 20529 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6470 | 43 | 0.664606% |
| B | 6471 | 60 | 0.927214% |
| C | 6471 | 77 | 1.189924% |
| D | 6471 | 206 | 3.183434% |

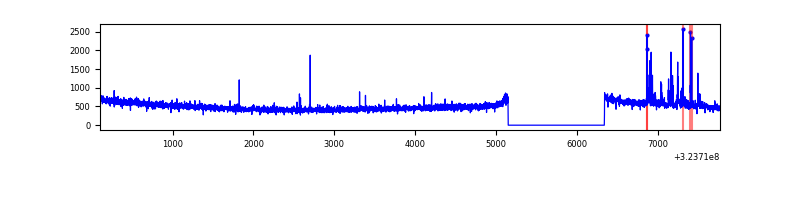

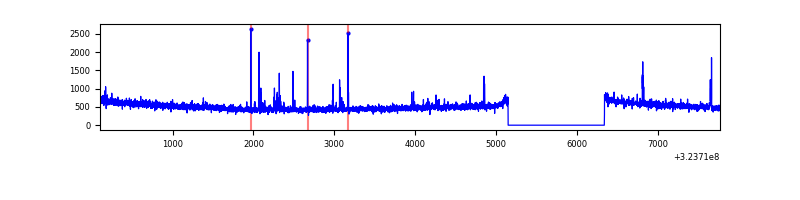

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

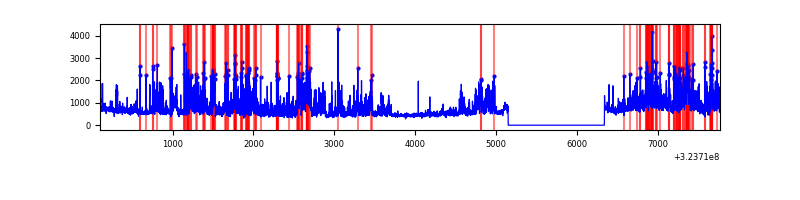

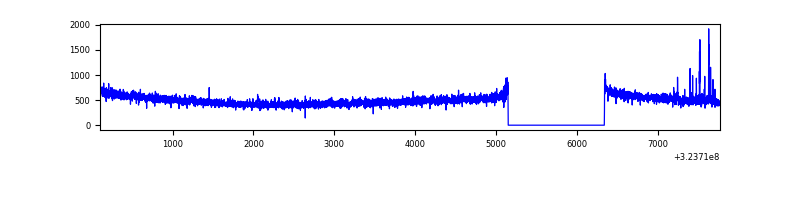

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7660 | 6471 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7661 | 6472 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7661 | 6472 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7661 | 6472 | 196 | 196 | 2.56% | 3.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 95016 | 567.63 | 829 | 815 | 166.0 |
| A | 13 | 254 | 10023 | 55.49 | 829 | 815 | 166.0 |
| A | 0 | 226 | 7224 | 38.62 | 829 | 815 | 166.0 |
| B | 3 | 64 | 69394 | 443.81 | 828 | 812 | 154.5 |
| B | 12 | 111 | 18093 | 111.83 | 828 | 812 | 154.5 |
| B | 11 | 111 | 16026 | 98.45 | 828 | 812 | 154.5 |
| C | 14 | 238 | 127839 | 704.48 | 781 | 787 | 180.3 |
| C | 2 | 16 | 29795 | 160.85 | 781 | 787 | 180.3 |
| C | 3 | 233 | 8154 | 40.85 | 781 | 787 | 180.3 |
| D | 8 | 195 | 1543239 | 8216.87 | 784 | 763 | 187.7 |
| D | 1 | 52 | 400593 | 2129.92 | 784 | 763 | 187.7 |
| D | 12 | 218 | 304708 | 1619.14 | 784 | 763 | 187.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

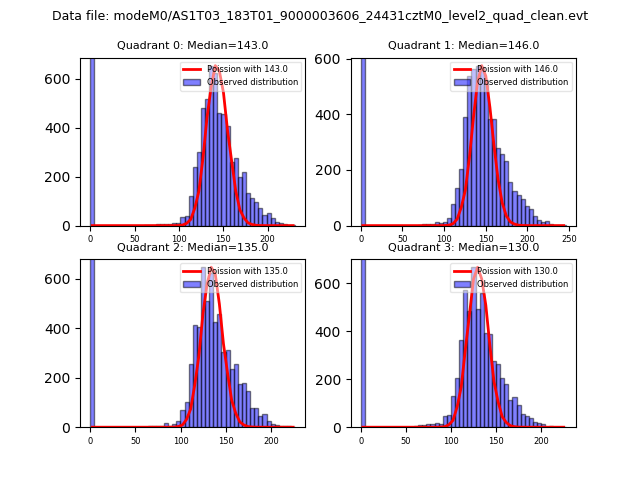

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

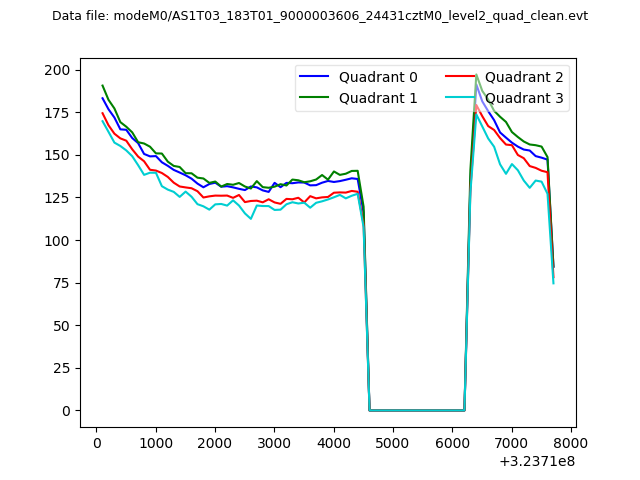

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

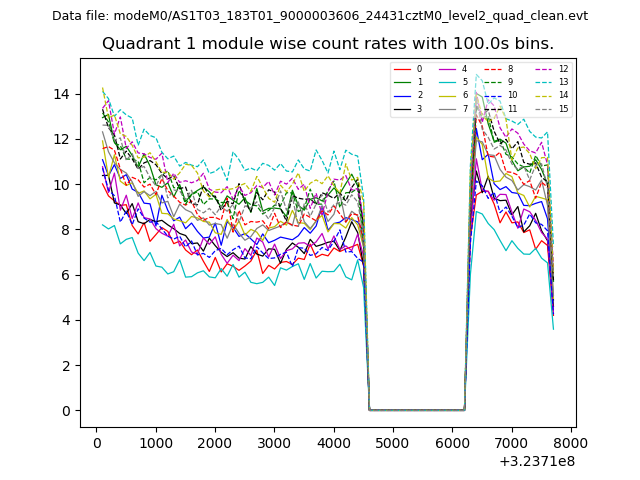

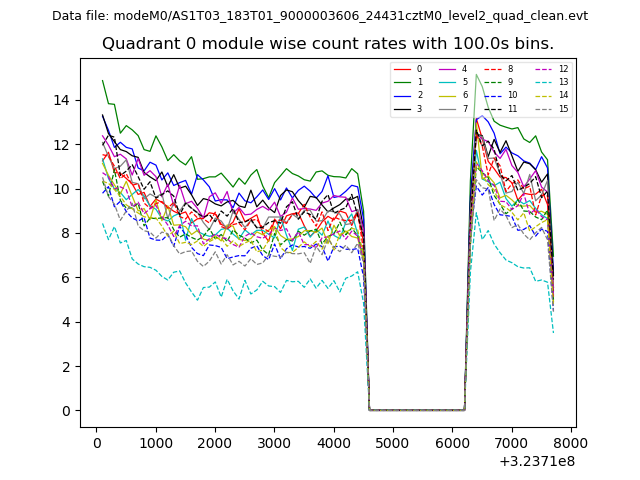

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

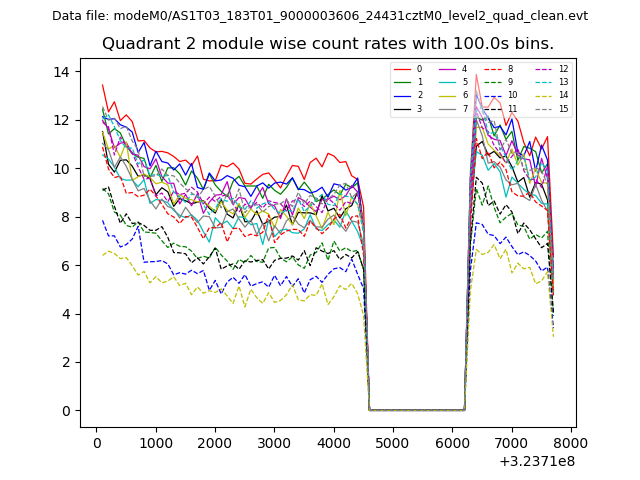

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

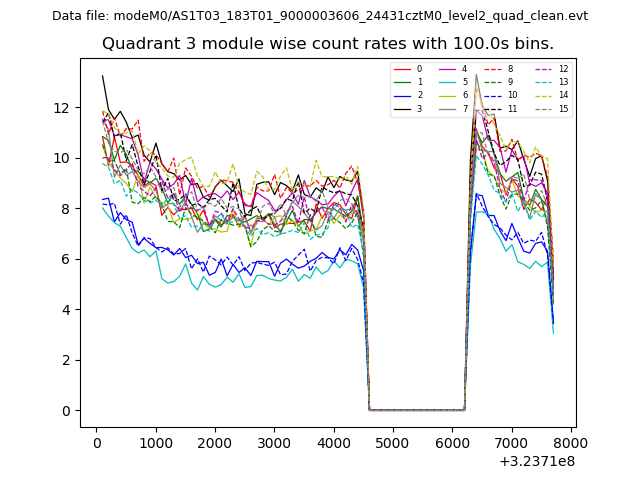

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

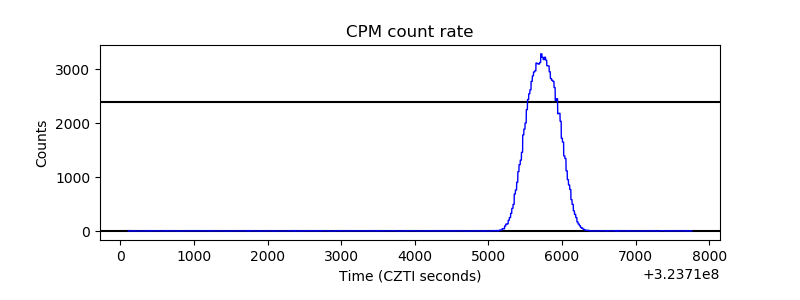

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

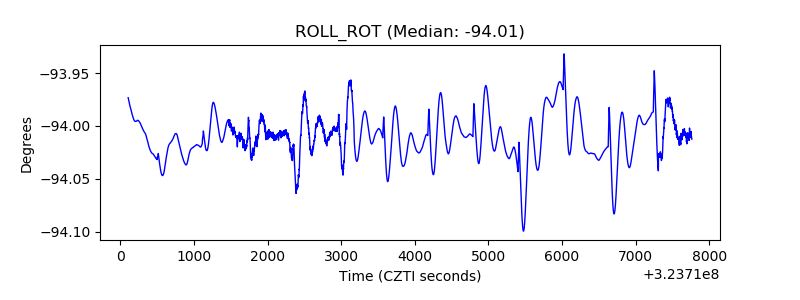

| _ROLL_ROT |  |

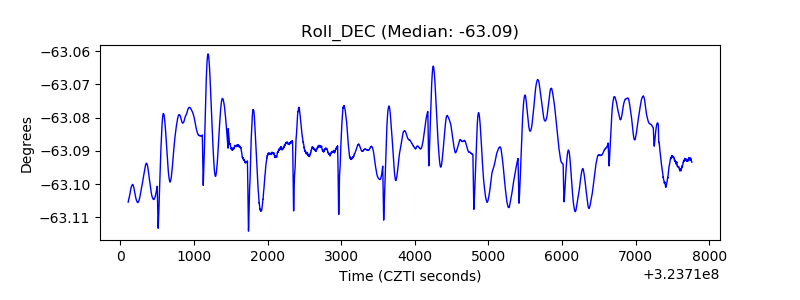

| _Roll_DEC |  |

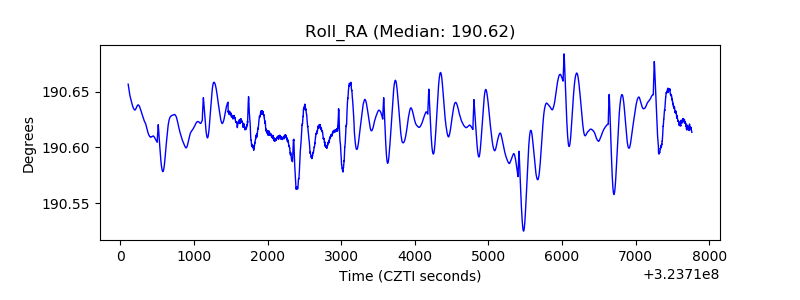

| _Roll_RA |  |

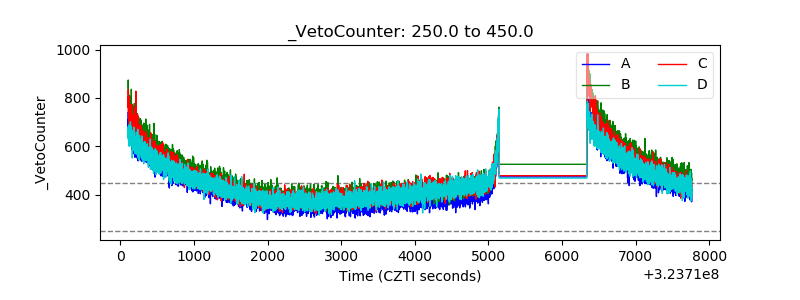

| Veto Counter |  |
