| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003606_24445cztM0_level2.evt | modeM0/AS1T03_183T01_9000003606_24445cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,078,720 | 125,403,840 |
| Size | 440.7 MB | 119.6 MB |
| Events in quadrant A | 3,159,811 | 865,259 |
| Events in quadrant B | 3,203,624 | 880,963 |
| Events in quadrant C | 3,112,089 | 822,286 |
| Events in quadrant D | 4,091,927 | 791,462 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13602 | 1 |
| B | 0 | 13590 | 1 |
| C | 0 | 13378 | 1 |
| D | 0 | 16509 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6271 | 63 | 1.004624% |
| B | 6272 | 58 | 0.924745% |
| C | 6272 | 82 | 1.307398% |
| D | 6272 | 237 | 3.778699% |

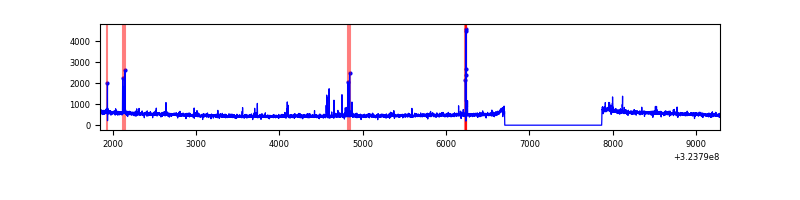

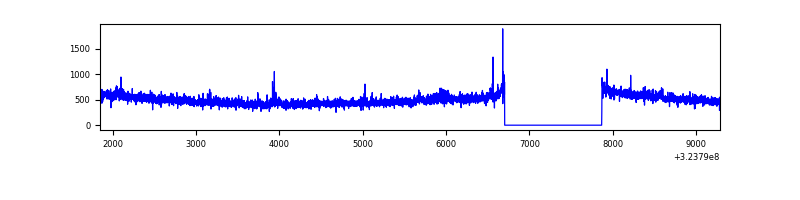

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7436 | 6272 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7437 | 6273 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7437 | 6273 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7437 | 6273 | 149 | 149 | 2.00% | 2.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 99042 | 620.01 | 794 | 779 | 158.5 |
| A | 13 | 254 | 9753 | 56.62 | 794 | 779 | 158.5 |
| A | 0 | 226 | 7044 | 39.53 | 794 | 779 | 158.5 |
| B | 3 | 64 | 73228 | 485.8 | 791 | 773 | 149.1 |
| B | 12 | 111 | 17208 | 110.19 | 791 | 773 | 149.1 |
| B | 11 | 111 | 15413 | 98.16 | 791 | 773 | 149.1 |
| C | 14 | 238 | 123694 | 707.35 | 748 | 754 | 173.8 |
| C | 10 | 9 | 46507 | 263.25 | 748 | 754 | 173.8 |
| C | 2 | 16 | 19841 | 109.82 | 748 | 754 | 173.8 |
| D | 1 | 52 | 827084 | 4579.09 | 749 | 727 | 180.5 |
| D | 12 | 218 | 256626 | 1418.01 | 749 | 727 | 180.5 |
| D | 8 | 195 | 139983 | 771.66 | 749 | 727 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

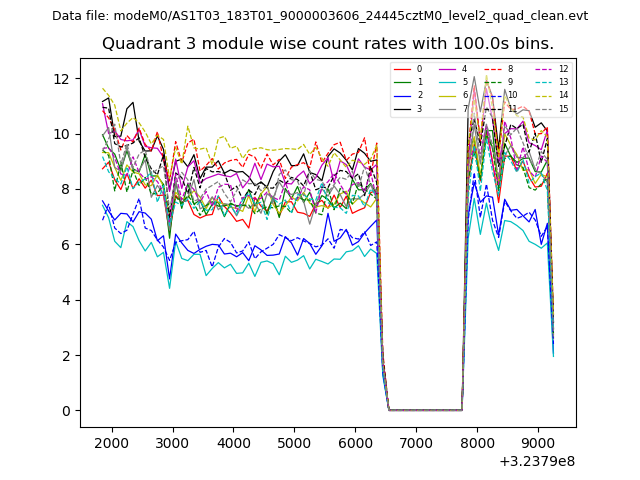

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

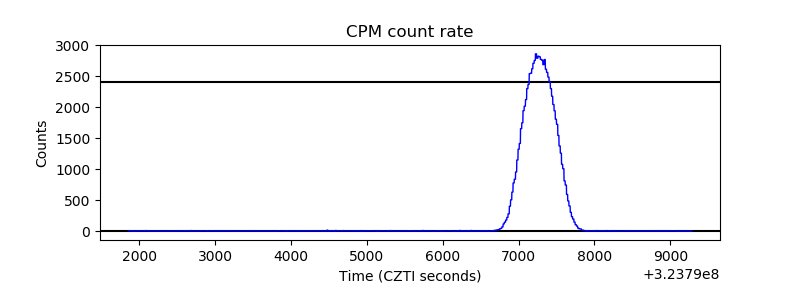

| _CPM_Rate |  |

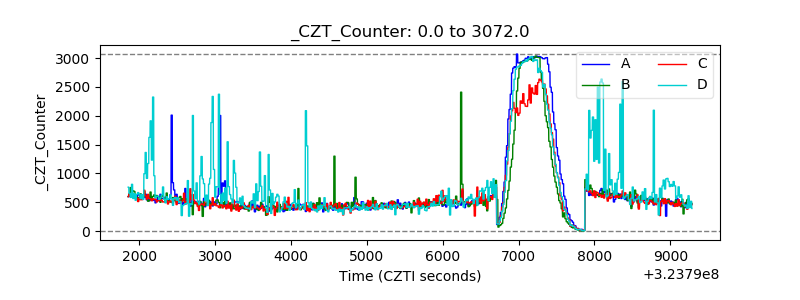

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

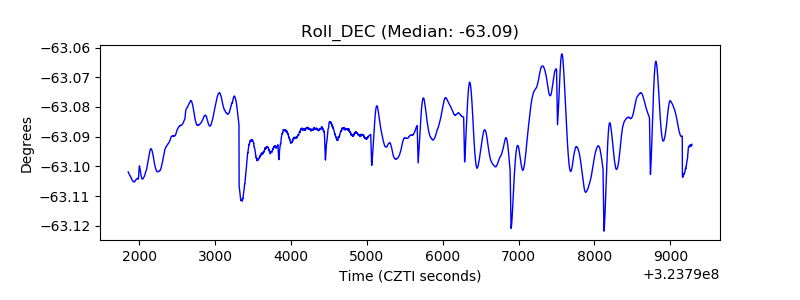

| _Roll_DEC |  |

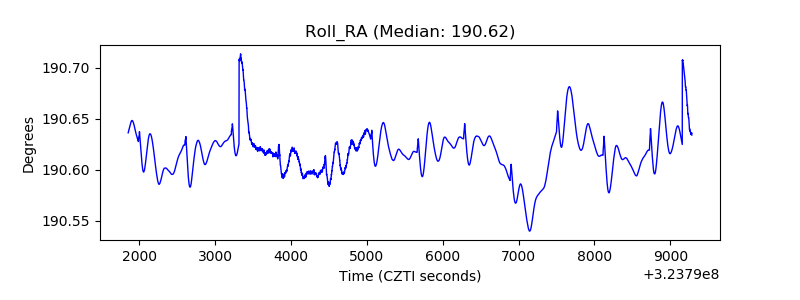

| _Roll_RA |  |

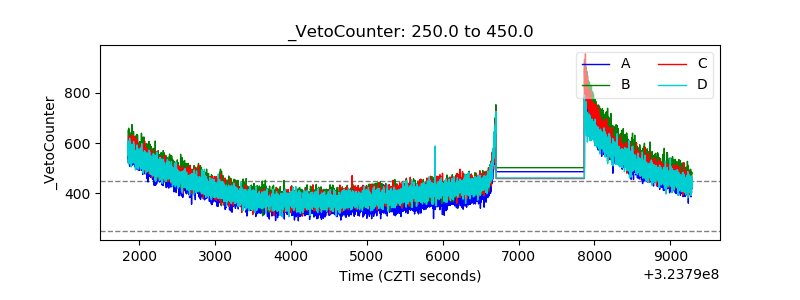

| Veto Counter |  |
