| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003606_24462cztM0_level2.evt | modeM0/AS1T03_183T01_9000003606_24462cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,322,880 | 109,889,280 |
| Size | 596.4 MB | 104.8 MB |
| Events in quadrant A | 3,130,746 | 782,687 |
| Events in quadrant B | 3,333,536 | 801,293 |
| Events in quadrant C | 4,468,509 | 719,705 |
| Events in quadrant D | 7,597,268 | 602,860 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13070 | 1 |
| B | 0 | 13665 | 1 |
| C | 0 | 17191 | 5 |
| D | 0 | 26633 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6021 | 59 | 0.979904% |
| B | 6022 | 121 | 2.009299% |
| C | 6021 | 414 | 6.875934% |
| D | 6021 | 1619 | 26.889221% |

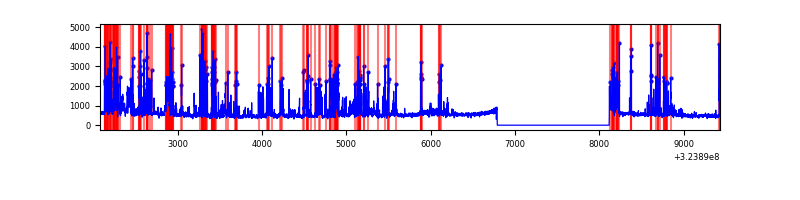

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7351 | 6022 | 22 | 22 | 0.30% | 0.37% |  |
| B | 7352 | 6023 | 42 | 42 | 0.57% | 0.70% |  |
| C | 7351 | 6022 | 233 | 233 | 3.17% | 3.87% |  |
| D | 7351 | 6022 | 1413 | 1413 | 19.22% | 23.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 153917 | 1003.61 | 772 | 759 | 152.6 |
| A | 13 | 254 | 9199 | 55.31 | 772 | 759 | 152.6 |
| A | 0 | 226 | 6652 | 38.62 | 772 | 759 | 152.6 |
| B | 3 | 64 | 270276 | 1871.97 | 775 | 758 | 144.0 |
| B | 12 | 111 | 16699 | 110.72 | 775 | 758 | 144.0 |
| B | 6 | 36 | 15746 | 104.1 | 775 | 758 | 144.0 |
| C | 2 | 16 | 1512624 | 9068.38 | 720 | 726 | 166.7 |
| C | 14 | 238 | 117127 | 698.17 | 720 | 726 | 166.7 |
| C | 10 | 9 | 26185 | 152.7 | 720 | 726 | 166.7 |
| D | 1 | 52 | 4089942 | 25979.17 | 649 | 627 | 157.4 |
| D | 12 | 218 | 915507 | 5812.17 | 649 | 627 | 157.4 |
| D | 8 | 195 | 113372 | 716.26 | 649 | 627 | 157.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

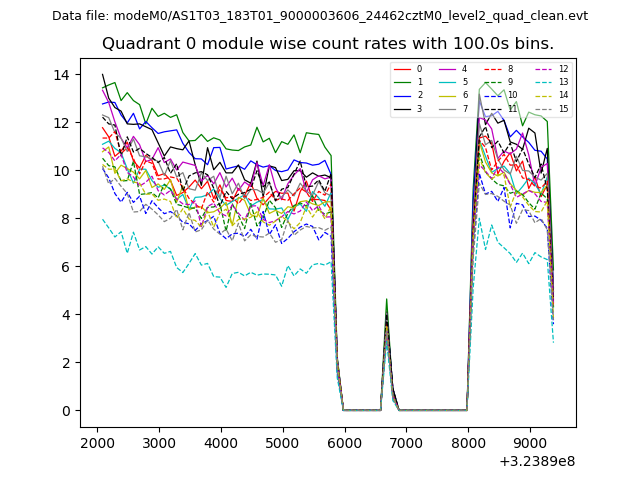

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

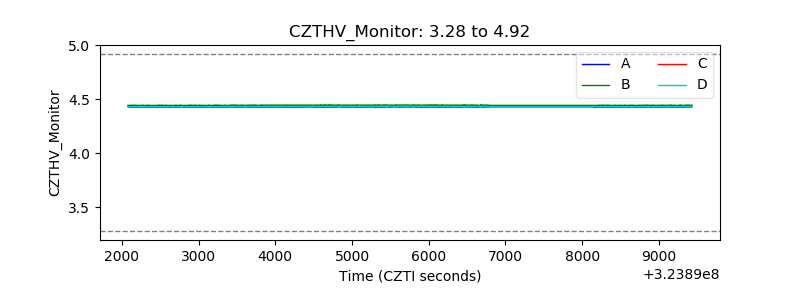

| CZT HV Monitor |  |
| D_VDD |  |

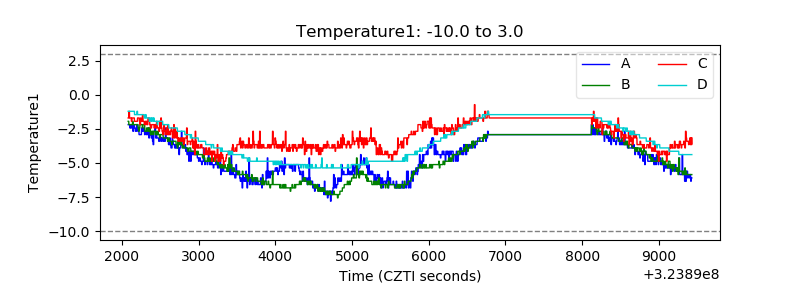

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

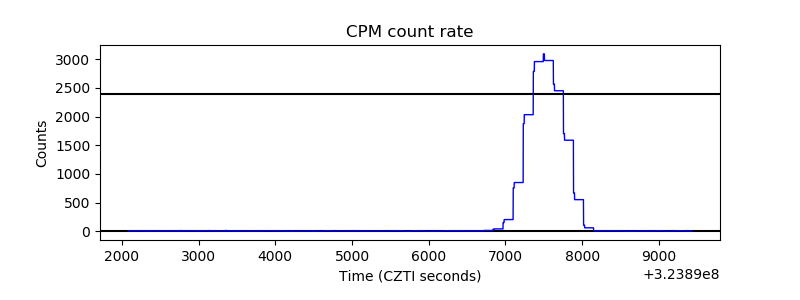

| _CPM_Rate |  |

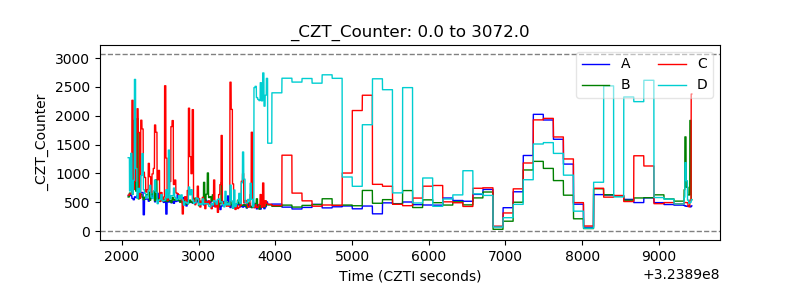

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

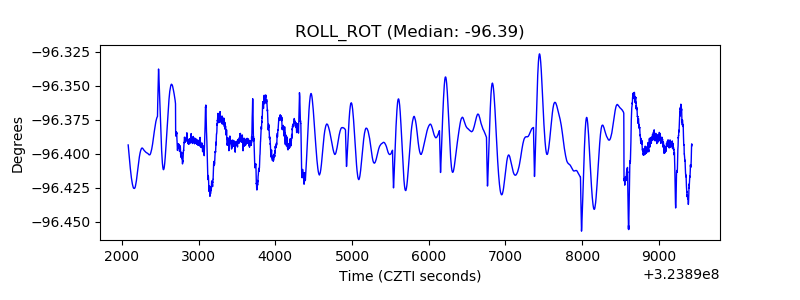

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

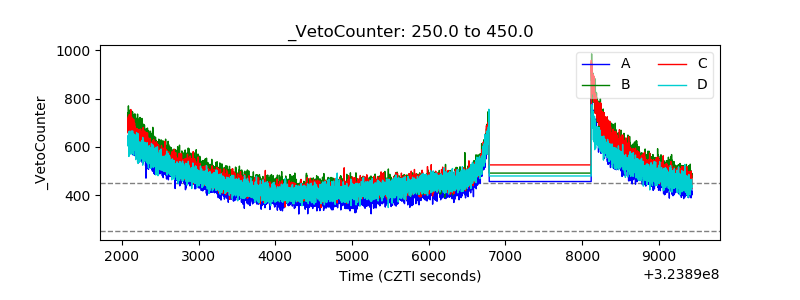

| Veto Counter |  |
