| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003606_24476cztM0_level2.evt | modeM0/AS1T03_183T01_9000003606_24476cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,993,920 | 119,494,080 |
| Size | 442.5 MB | 114.0 MB |
| Events in quadrant A | 2,989,005 | 831,505 |
| Events in quadrant B | 3,064,861 | 852,444 |
| Events in quadrant C | 3,009,858 | 778,780 |
| Events in quadrant D | 4,585,550 | 741,856 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12647 | 1 |
| B | 0 | 12781 | 1 |
| C | 0 | 12625 | 1 |
| D | 0 | 17783 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5937 | 40 | 0.673741% |
| B | 5938 | 57 | 0.959919% |
| C | 5938 | 80 | 1.347255% |
| D | 5938 | 220 | 3.704951% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7277 | 5938 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7278 | 5939 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7278 | 5939 | 18 | 18 | 0.25% | 0.30% |  |
| D | 7278 | 5939 | 169 | 169 | 2.32% | 2.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10188 | 61.37 | 775 | 762 | 153.6 |
| A | 0 | 226 | 6764 | 39.07 | 775 | 762 | 153.6 |
| A | 3 | 137 | 6385 | 36.61 | 775 | 762 | 153.6 |
| B | 12 | 111 | 16532 | 110.52 | 774 | 758 | 142.7 |
| B | 7 | 202 | 16377 | 109.44 | 774 | 758 | 142.7 |
| B | 11 | 111 | 14446 | 95.91 | 774 | 758 | 142.7 |
| C | 14 | 238 | 118513 | 705.64 | 725 | 730 | 166.9 |
| C | 0 | 10 | 55597 | 328.71 | 725 | 730 | 166.9 |
| C | 2 | 16 | 9473 | 52.38 | 725 | 730 | 166.9 |
| D | 1 | 52 | 1189201 | 6779.36 | 722 | 700 | 175.3 |
| D | 12 | 218 | 365298 | 2079.71 | 722 | 700 | 175.3 |
| D | 8 | 195 | 241809 | 1375.32 | 722 | 700 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

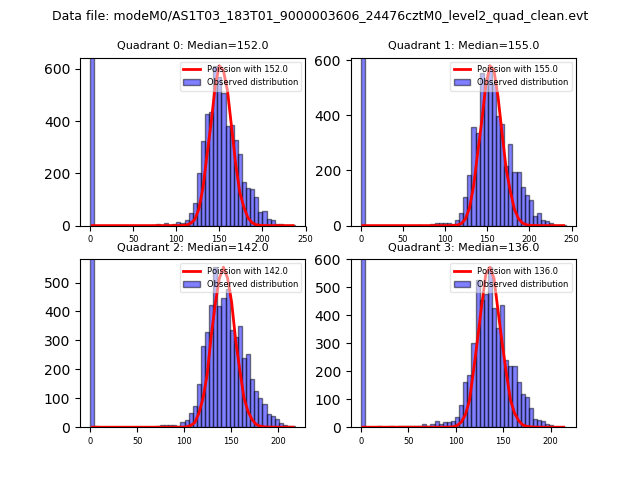

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

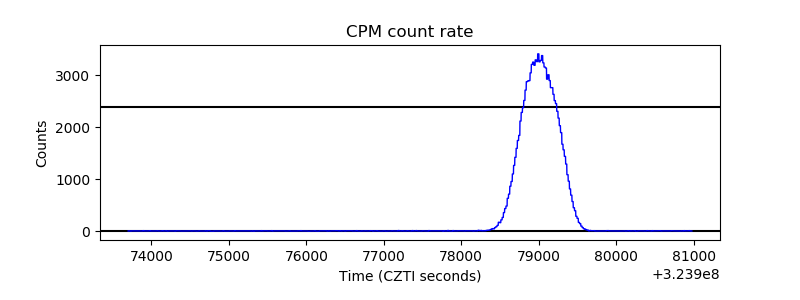

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

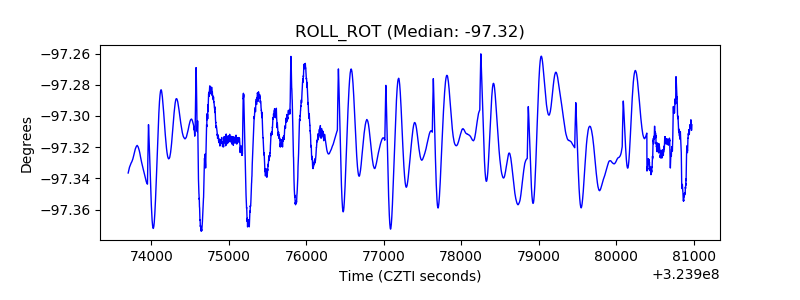

| _ROLL_ROT |  |

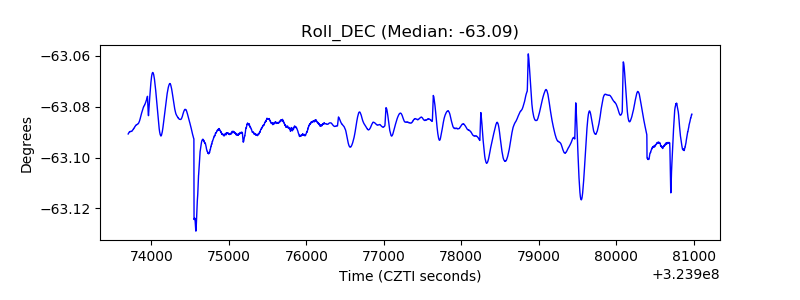

| _Roll_DEC |  |
| _Roll_RA |  |

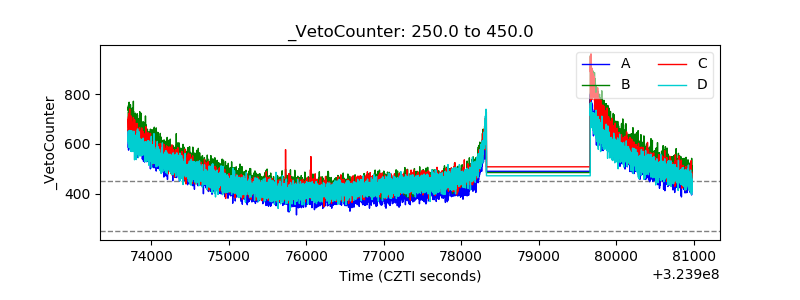

| Veto Counter |  |
