| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003606_24493cztM0_level2.evt | modeM0/AS1T03_183T01_9000003606_24493cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,763,200 | 114,197,760 |
| Size | 532.9 MB | 108.9 MB |
| Events in quadrant A | 5,775,520 | 721,355 |
| Events in quadrant B | 3,610,623 | 806,265 |
| Events in quadrant C | 3,114,613 | 758,619 |
| Events in quadrant D | 3,987,414 | 725,458 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21693 | 3 |
| B | 0 | 14860 | 2 |
| C | 0 | 13373 | 2 |
| D | 0 | 16293 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6401 | 860 | 13.435401% |
| B | 6401 | 151 | 2.359006% |
| C | 6401 | 95 | 1.484143% |
| D | 6401 | 250 | 3.905640% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7501 | 6402 | 306 | 306 | 4.08% | 4.78% |  |
| B | 7501 | 6402 | 59 | 59 | 0.79% | 0.92% |  |
| C | 7501 | 6402 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7501 | 6402 | 175 | 175 | 2.33% | 2.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 2943478 | 20107.5 | 731 | 716 | 146.4 |
| A | 13 | 254 | 10108 | 64.17 | 731 | 716 | 146.4 |
| A | 3 | 1 | 7433 | 45.89 | 731 | 716 | 146.4 |
| B | 3 | 64 | 510964 | 3467.06 | 783 | 765 | 147.2 |
| B | 12 | 111 | 17678 | 114.93 | 783 | 765 | 147.2 |
| B | 11 | 111 | 15341 | 99.05 | 783 | 765 | 147.2 |
| C | 14 | 238 | 122105 | 701.2 | 747 | 754 | 173.1 |
| C | 2 | 16 | 51479 | 293.1 | 747 | 754 | 173.1 |
| C | 0 | 10 | 28102 | 158.02 | 747 | 754 | 173.1 |
| D | 12 | 218 | 918317 | 5106.33 | 737 | 714 | 179.7 |
| D | 1 | 52 | 176359 | 977.44 | 737 | 714 | 179.7 |
| D | 8 | 195 | 68249 | 375.82 | 737 | 714 | 179.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

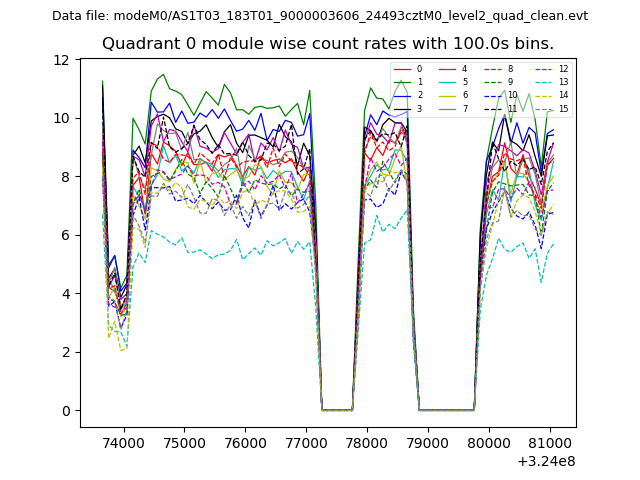

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

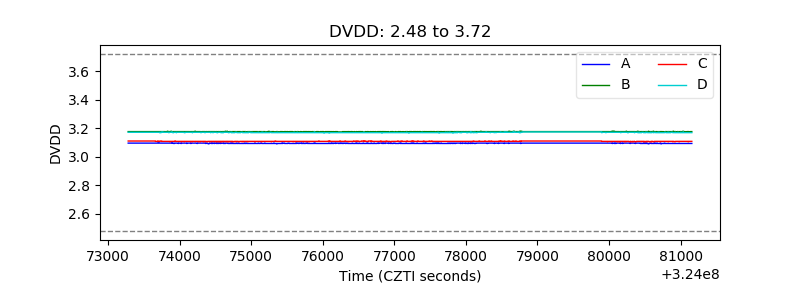

| D_VDD |  |

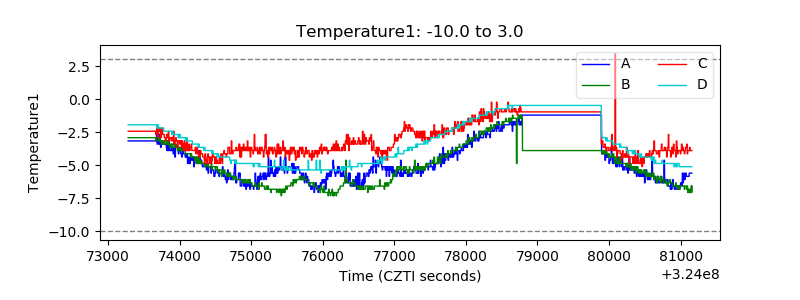

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

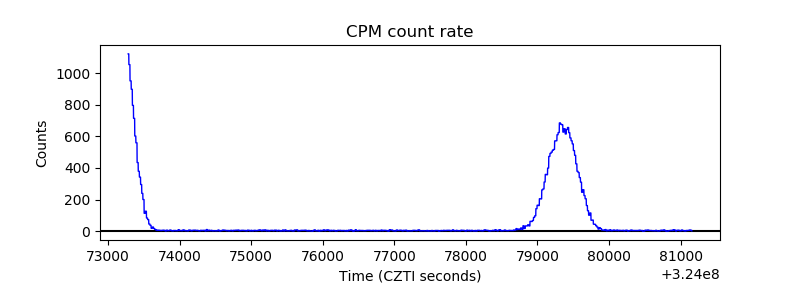

| _CPM_Rate |  |

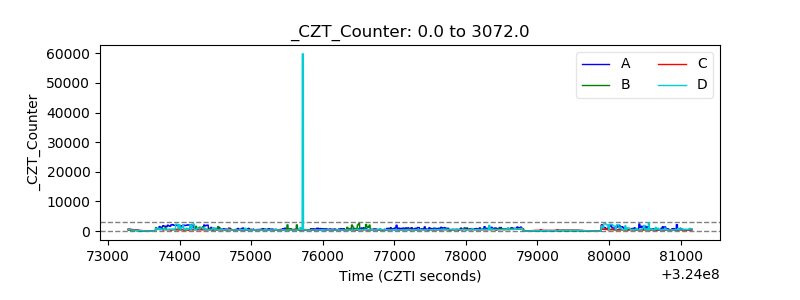

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

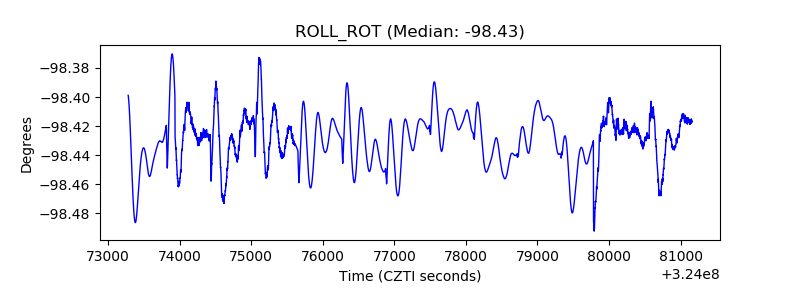

| _ROLL_ROT |  |
| _Roll_DEC |  |

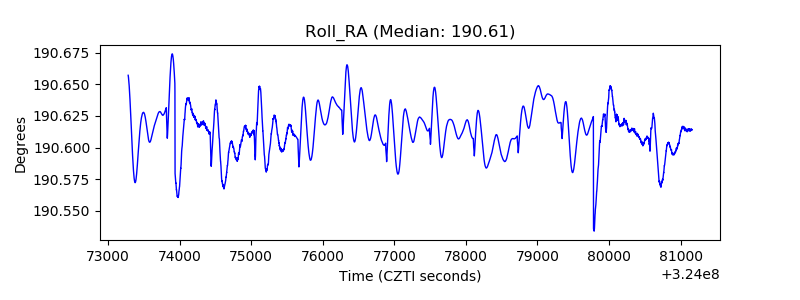

| _Roll_RA |  |

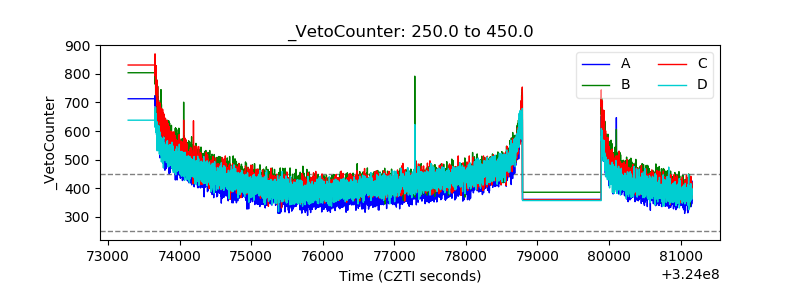

| Veto Counter |  |
