| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003606_24540cztM0_level2.evt | modeM0/AS1T03_183T01_9000003606_24540cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,144,320 | 132,707,520 |
| Size | 587.6 MB | 126.6 MB |
| Events in quadrant A | 3,876,610 | 894,375 |
| Events in quadrant B | 3,957,657 | 913,964 |
| Events in quadrant C | 3,653,238 | 861,963 |
| Events in quadrant D | 6,651,769 | 814,807 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16793 | 2 |
| B | 0 | 16756 | 2 |
| C | 0 | 15948 | 2 |
| D | 0 | 25009 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7674 | 212 | 2.762575% |
| B | 7675 | 159 | 2.071661% |
| C | 7675 | 141 | 1.837134% |
| D | 7675 | 968 | 12.612378% |

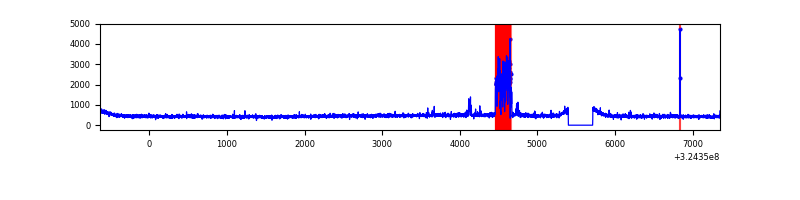

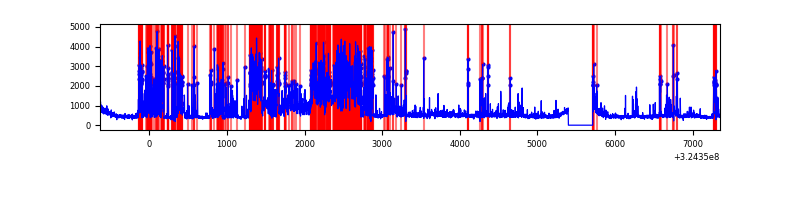

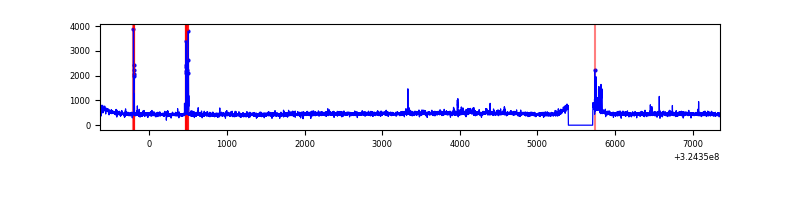

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7989 | 7675 | 128 | 128 | 1.60% | 1.67% |  |
| B | 7990 | 7676 | 49 | 49 | 0.61% | 0.64% |  |
| C | 7990 | 7676 | 15 | 15 | 0.19% | 0.20% |  |
| D | 7990 | 7676 | 783 | 783 | 9.80% | 10.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 378494 | 2090.41 | 900 | 881 | 180.6 |
| A | 6 | 16 | 18073 | 95.17 | 900 | 881 | 180.6 |
| A | 13 | 254 | 12500 | 64.32 | 900 | 881 | 180.6 |
| B | 3 | 64 | 382570 | 2181.57 | 907 | 883 | 175.0 |
| B | 12 | 111 | 20840 | 114.07 | 907 | 883 | 175.0 |
| B | 11 | 111 | 18926 | 103.13 | 907 | 883 | 175.0 |
| C | 14 | 238 | 138473 | 678.85 | 868 | 874 | 202.7 |
| C | 2 | 16 | 76493 | 373.07 | 868 | 874 | 202.7 |
| C | 3 | 233 | 34009 | 163.47 | 868 | 874 | 202.7 |
| D | 1 | 52 | 1648908 | 8170.53 | 832 | 806 | 201.7 |
| D | 9 | 1 | 1591526 | 7886.06 | 832 | 806 | 201.7 |
| D | 10 | 70 | 105508 | 519.06 | 832 | 806 | 201.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

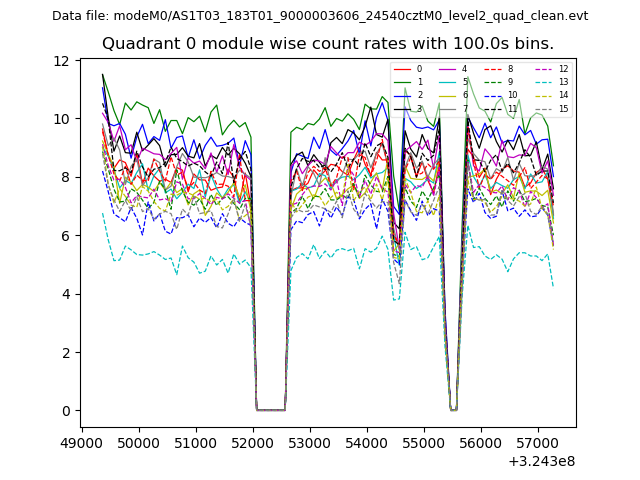

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

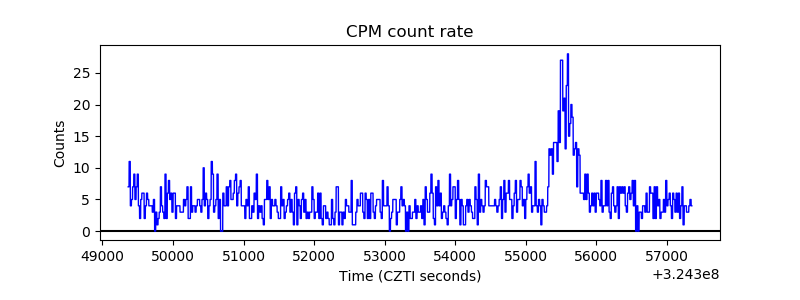

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

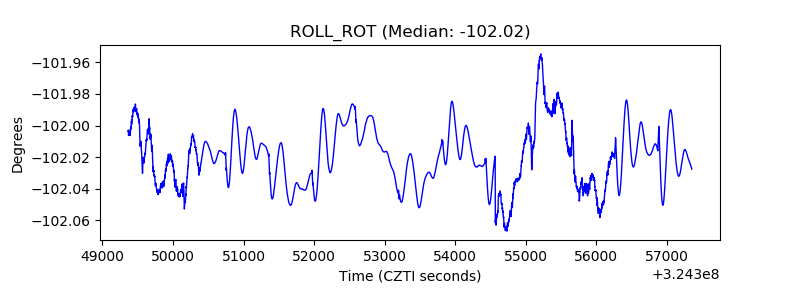

| _ROLL_ROT |  |
| _Roll_DEC |  |

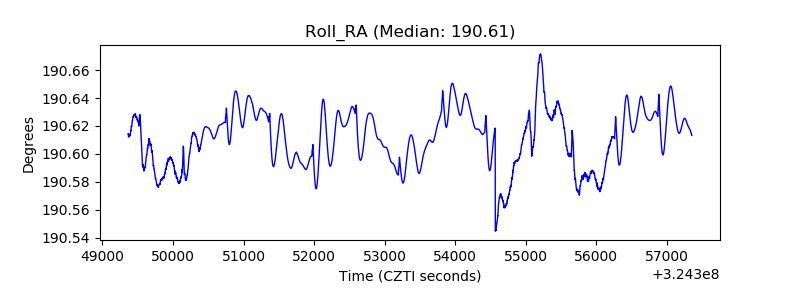

| _Roll_RA |  |
| Veto Counter |  |
