| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003606_24546cztM0_level2.evt | modeM0/AS1T03_183T01_9000003606_24546cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,464,320 | 108,305,280 |
| Size | 445.8 MB | 103.3 MB |
| Events in quadrant A | 3,179,958 | 725,912 |
| Events in quadrant B | 3,263,743 | 732,826 |
| Events in quadrant C | 3,243,768 | 700,153 |
| Events in quadrant D | 4,039,791 | 679,691 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13650 | 1 |
| B | 0 | 13820 | 1 |
| C | 0 | 13914 | 1 |
| D | 0 | 16379 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6332 | 69 | 1.089703% |
| B | 6331 | 73 | 1.153056% |
| C | 6331 | 115 | 1.816459% |
| D | 6332 | 135 | 2.132028% |

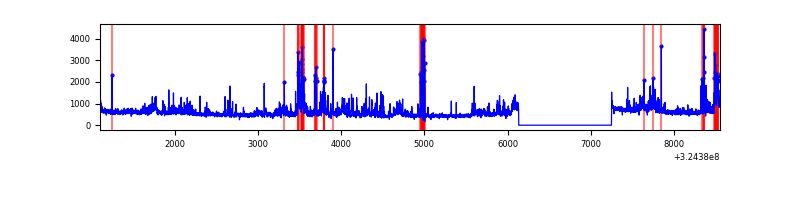

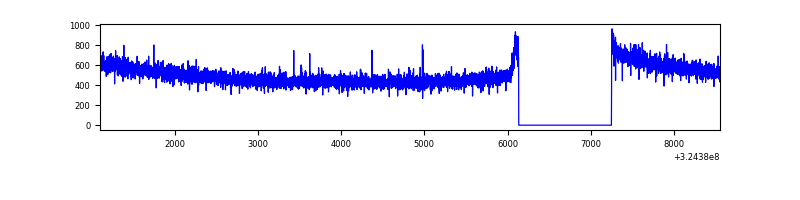

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6332 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7446 | 6331 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7446 | 6331 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7447 | 6332 | 60 | 60 | 0.81% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9630 | 53.8 | 825 | 809 | 164.0 |
| A | 3 | 137 | 7003 | 37.78 | 825 | 809 | 164.0 |
| A | 0 | 226 | 6910 | 37.21 | 825 | 809 | 164.0 |
| B | 3 | 64 | 47537 | 306.03 | 813 | 795 | 152.7 |
| B | 12 | 111 | 17943 | 112.27 | 813 | 795 | 152.7 |
| B | 0 | 190 | 17266 | 107.84 | 813 | 795 | 152.7 |
| C | 14 | 238 | 125452 | 695.36 | 782 | 788 | 179.3 |
| C | 5 | 112 | 50226 | 275.76 | 782 | 788 | 179.3 |
| C | 2 | 16 | 15106 | 79.86 | 782 | 788 | 179.3 |
| D | 1 | 52 | 593893 | 3108.12 | 794 | 772 | 190.8 |
| D | 8 | 195 | 268822 | 1404.66 | 794 | 772 | 190.8 |
| D | 12 | 218 | 164202 | 856.42 | 794 | 772 | 190.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

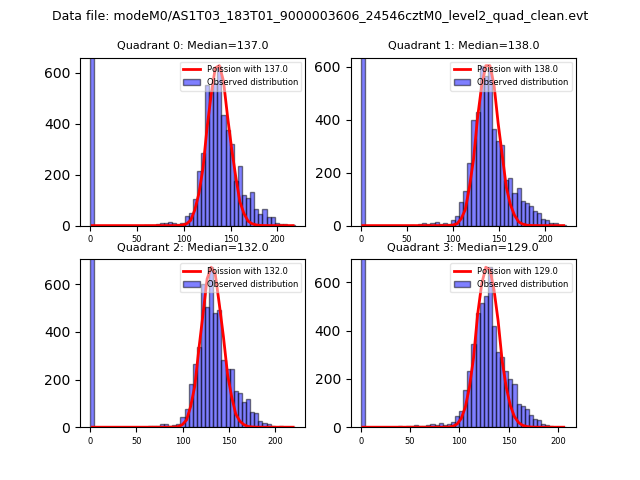

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

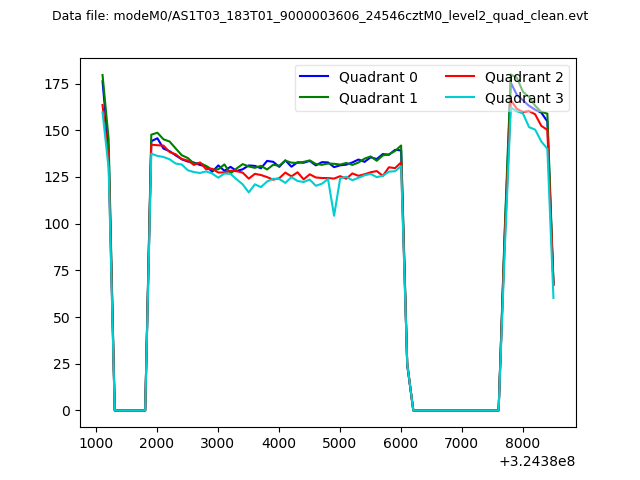

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

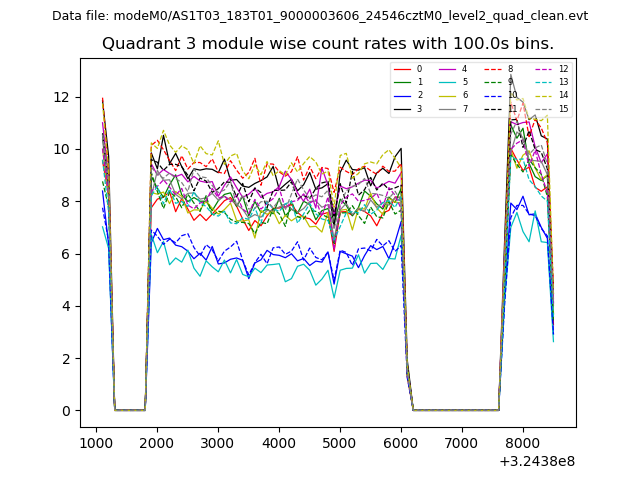

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

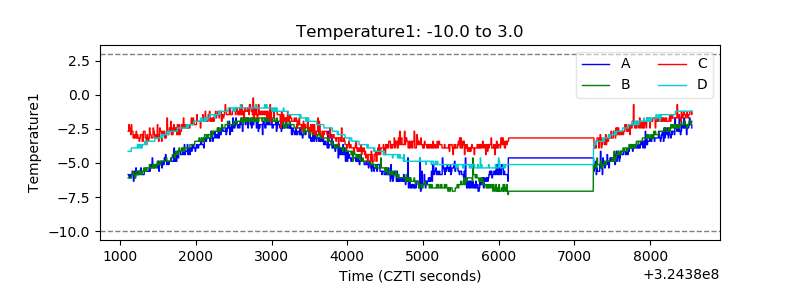

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

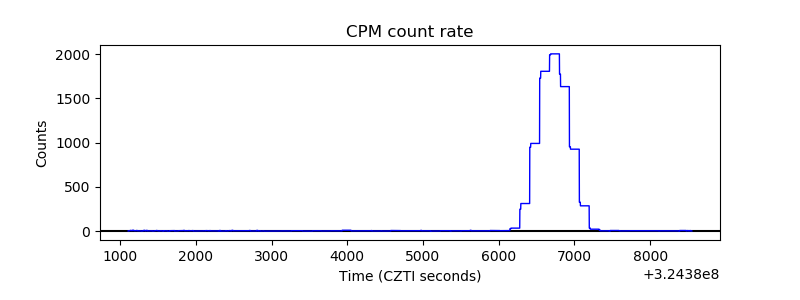

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

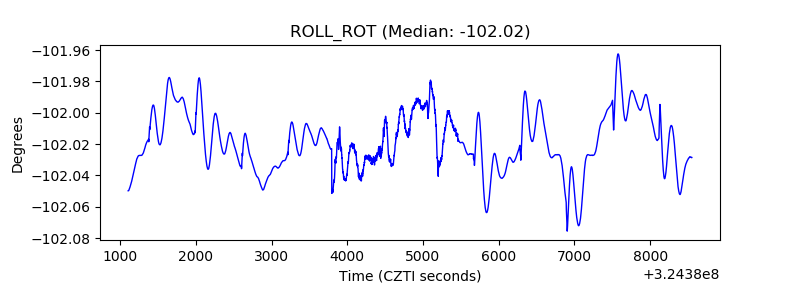

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
