| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_187T01_9000003608_24549cztM0_level2.evt | modeM0/AS1T03_187T01_9000003608_24549cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,266,560 | 118,797,120 |
| Size | 542.9 MB | 113.3 MB |
| Events in quadrant A | 3,212,217 | 844,749 |
| Events in quadrant B | 3,763,913 | 836,579 |
| Events in quadrant C | 3,344,569 | 779,407 |
| Events in quadrant D | 6,512,830 | 717,300 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13284 | 1 |
| B | 0 | 14942 | 1 |
| C | 0 | 13699 | 1 |
| D | 0 | 23589 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6016 | 59 | 0.980718% |
| B | 6017 | 230 | 3.822503% |
| C | 6017 | 89 | 1.479142% |
| D | 6017 | 781 | 12.979890% |

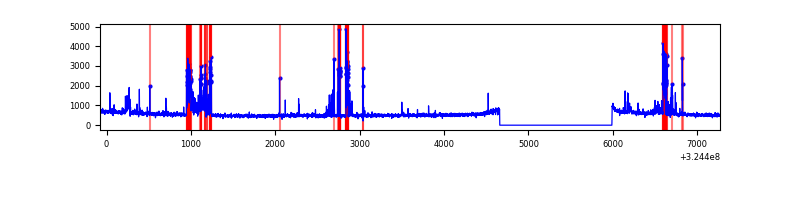

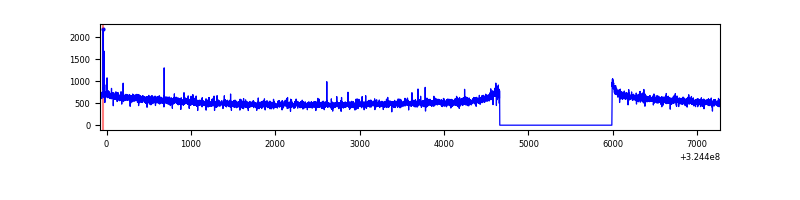

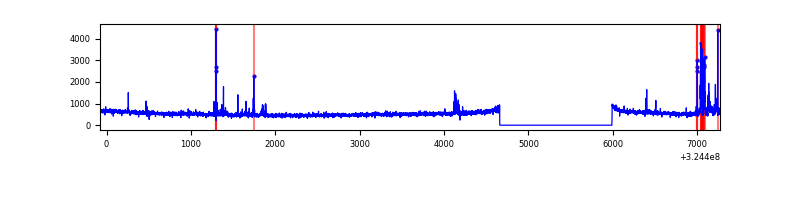

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

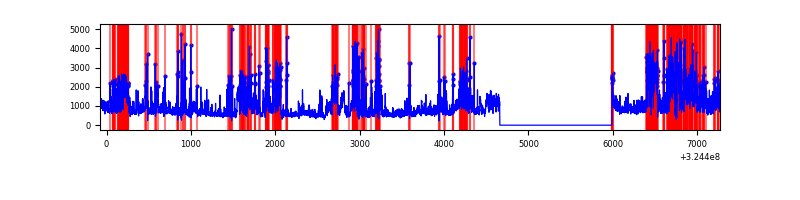

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7346 | 6017 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7347 | 6018 | 108 | 108 | 1.47% | 1.79% |  |
| C | 7347 | 6018 | 21 | 21 | 0.29% | 0.35% |  |
| D | 7347 | 6018 | 646 | 646 | 8.79% | 10.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9607 | 53.77 | 830 | 817 | 163.5 |
| A | 6 | 16 | 7647 | 41.78 | 830 | 817 | 163.5 |
| A | 0 | 226 | 7284 | 39.56 | 830 | 817 | 163.5 |
| B | 3 | 64 | 597579 | 4007.37 | 806 | 790 | 148.9 |
| B | 0 | 190 | 19208 | 123.67 | 806 | 790 | 148.9 |
| B | 12 | 111 | 16809 | 107.57 | 806 | 790 | 148.9 |
| C | 2 | 16 | 169924 | 975.99 | 763 | 768 | 173.3 |
| C | 14 | 238 | 126132 | 723.32 | 763 | 768 | 173.3 |
| C | 5 | 112 | 44070 | 249.84 | 763 | 768 | 173.3 |
| D | 1 | 52 | 2054337 | 11681.23 | 743 | 721 | 175.8 |
| D | 8 | 195 | 937451 | 5328.24 | 743 | 721 | 175.8 |
| D | 12 | 218 | 650038 | 3693.4 | 743 | 721 | 175.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

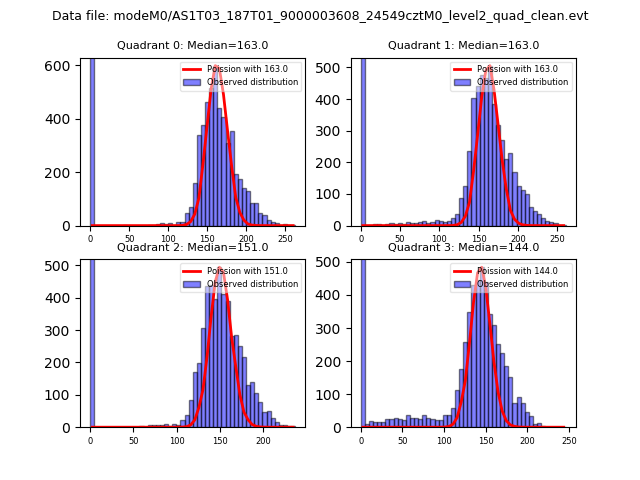

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

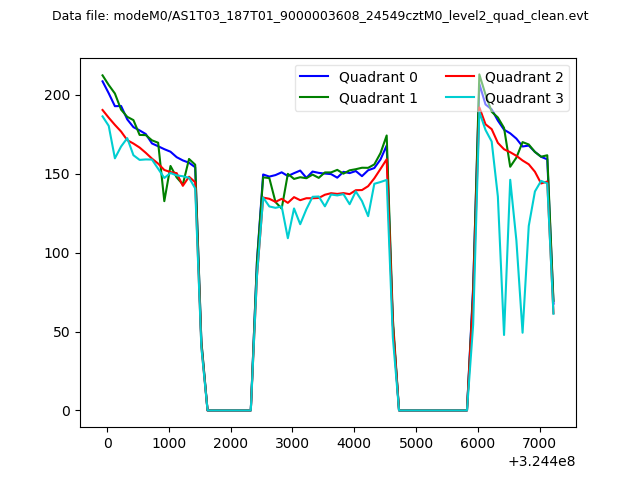

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

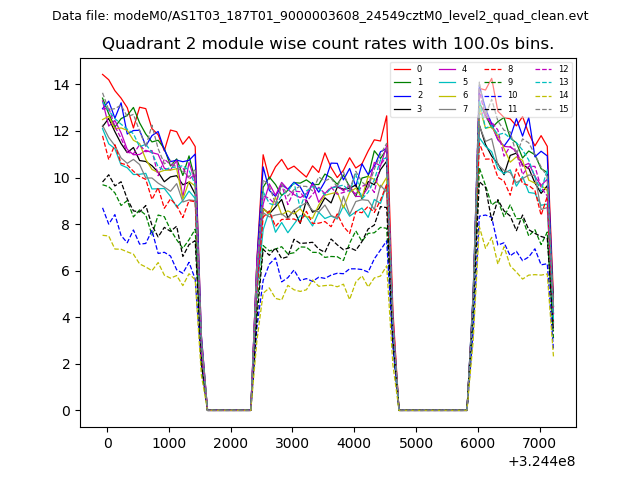

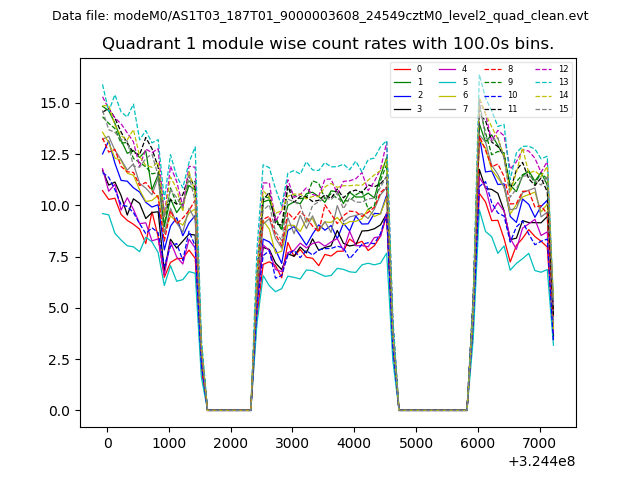

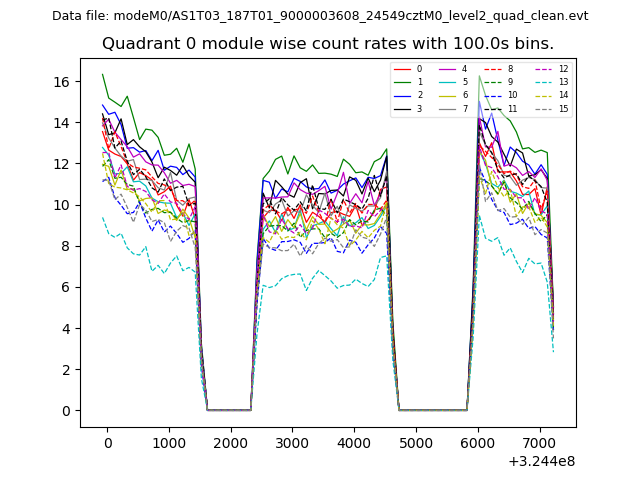

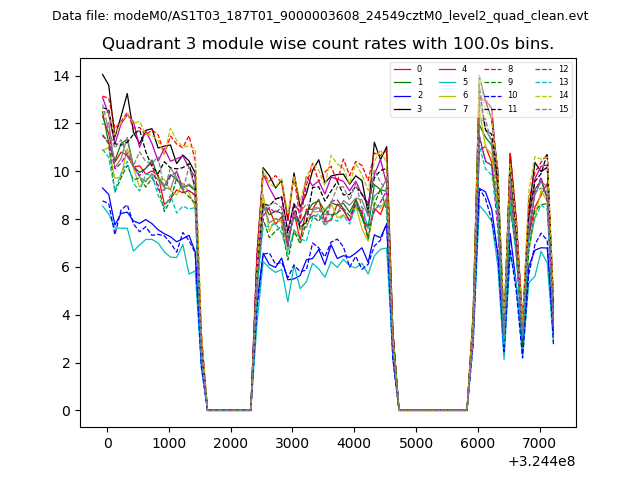

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

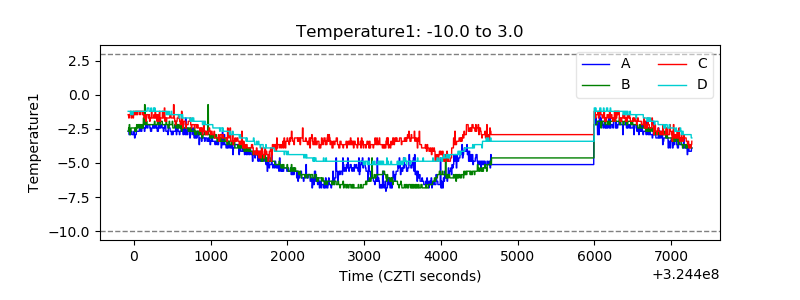

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

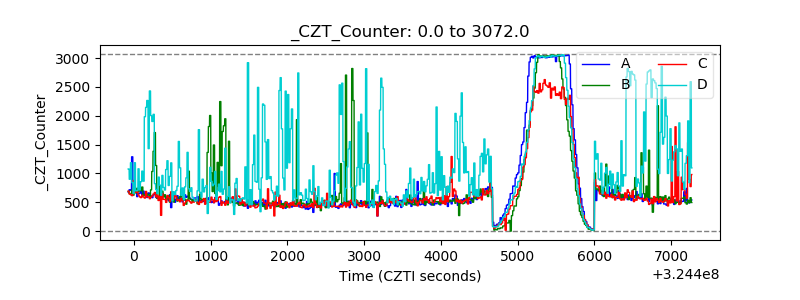

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

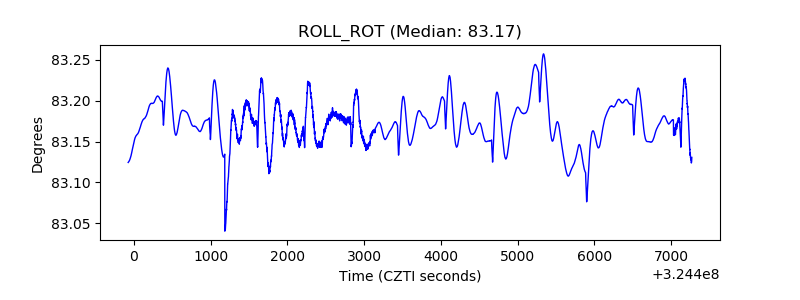

| _ROLL_ROT |  |

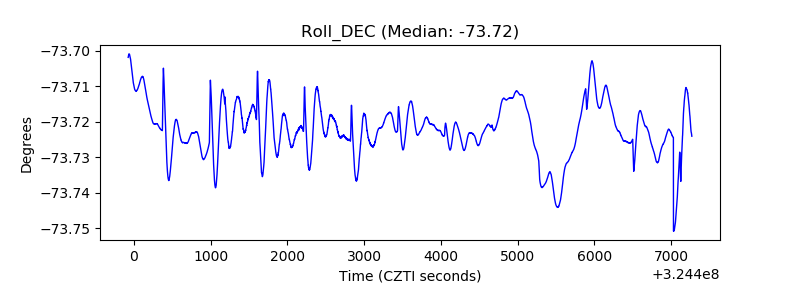

| _Roll_DEC |  |

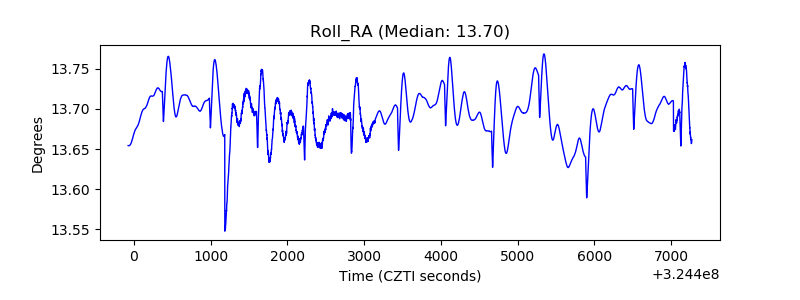

| _Roll_RA |  |

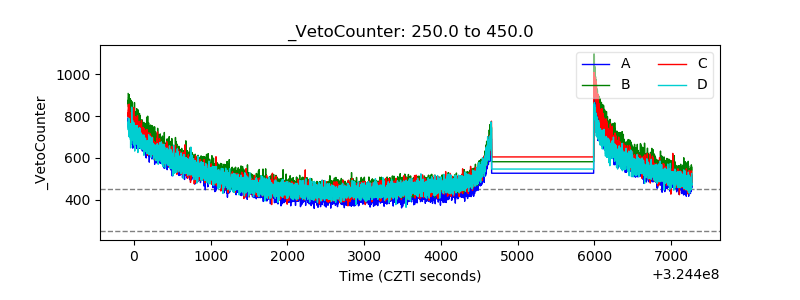

| Veto Counter |  |
