| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_187T01_9000003608_24551cztM0_level2.evt | modeM0/AS1T03_187T01_9000003608_24551cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,501,440 | 104,345,280 |
| Size | 502.1 MB | 99.5 MB |
| Events in quadrant A | 3,176,140 | 702,020 |
| Events in quadrant B | 3,211,418 | 710,787 |
| Events in quadrant C | 3,295,900 | 660,288 |
| Events in quadrant D | 5,821,069 | 633,912 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13432 | 2 |
| B | 0 | 13504 | 2 |
| C | 0 | 13871 | 2 |
| D | 0 | 21724 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6496 | 34 | 0.523399% |
| B | 6497 | 49 | 0.754194% |
| C | 6497 | 66 | 1.015853% |
| D | 6496 | 539 | 8.297414% |

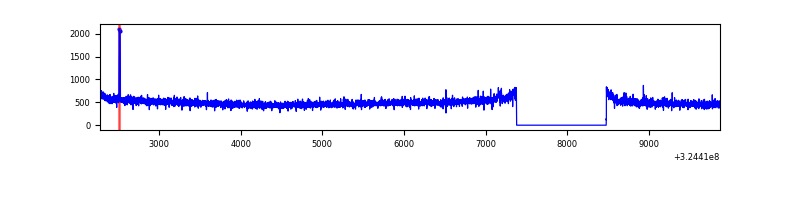

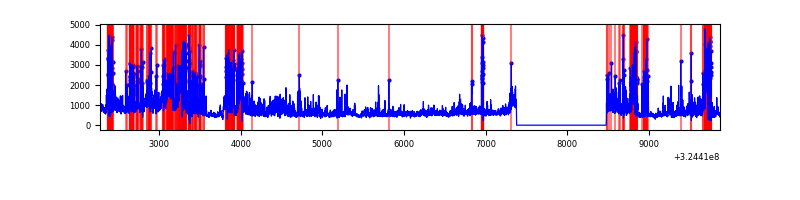

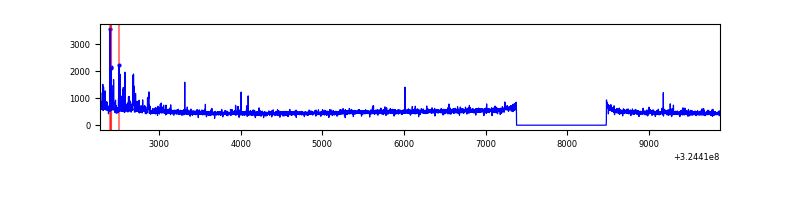

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 6497 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7597 | 6498 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7597 | 6498 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7596 | 6497 | 421 | 421 | 5.54% | 6.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10893 | 62.24 | 822 | 806 | 162.1 |
| A | 3 | 137 | 7130 | 39.02 | 822 | 806 | 162.1 |
| A | 0 | 226 | 6995 | 38.19 | 822 | 806 | 162.1 |
| B | 12 | 111 | 17987 | 112.85 | 816 | 797 | 152.3 |
| B | 11 | 111 | 15966 | 99.58 | 816 | 797 | 152.3 |
| B | 0 | 190 | 14591 | 90.56 | 816 | 797 | 152.3 |
| C | 2 | 16 | 138679 | 784.78 | 769 | 774 | 175.7 |
| C | 14 | 238 | 128325 | 725.86 | 769 | 774 | 175.7 |
| C | 7 | 247 | 11118 | 58.87 | 769 | 774 | 175.7 |
| D | 8 | 195 | 1204319 | 6545.23 | 761 | 739 | 183.9 |
| D | 1 | 52 | 851096 | 4624.35 | 761 | 739 | 183.9 |
| D | 12 | 218 | 537351 | 2918.17 | 761 | 739 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

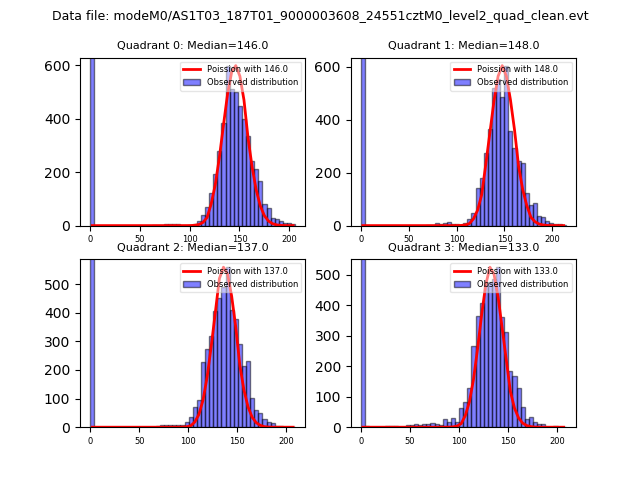

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

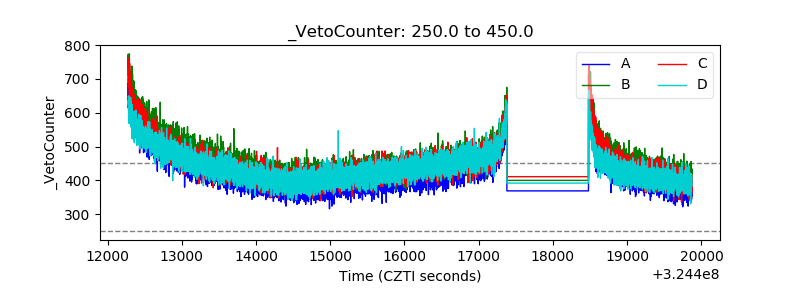

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

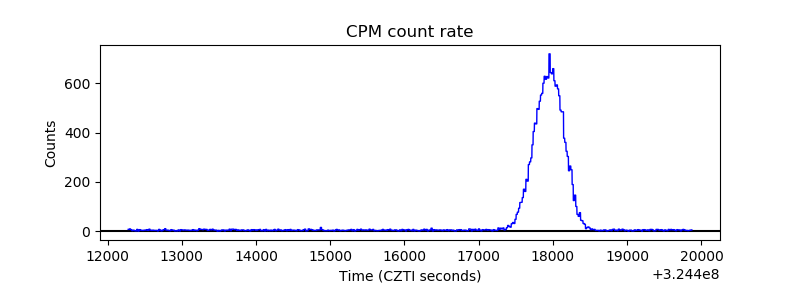

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

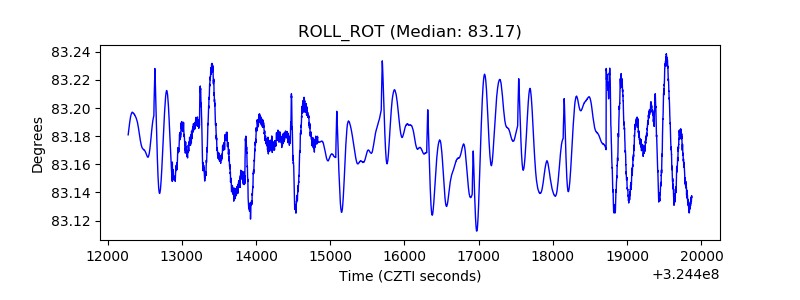

| _ROLL_ROT |  |
| _Roll_DEC |  |

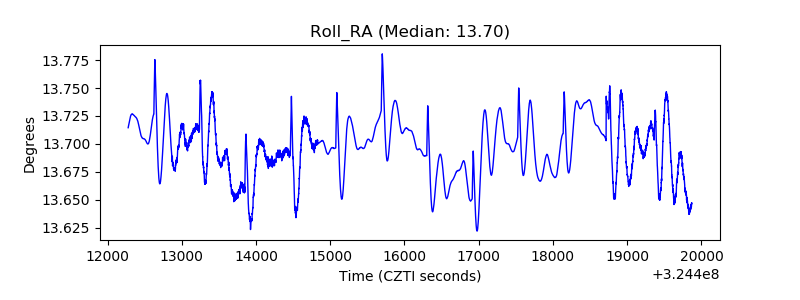

| _Roll_RA |  |
| Veto Counter |  |
