| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_187T01_9000003608_24559cztM0_level2.evt | modeM0/AS1T03_187T01_9000003608_24559cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,968,000 | 84,136,320 |
| Size | 399.6 MB | 80.2 MB |
| Events in quadrant A | 2,388,606 | 563,913 |
| Events in quadrant B | 2,402,726 | 568,938 |
| Events in quadrant C | 2,592,094 | 540,450 |
| Events in quadrant D | 4,968,254 | 521,289 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10514 | 1 |
| B | 0 | 10512 | 1 |
| C | 0 | 11089 | 1 |
| D | 0 | 18363 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5034 | 52 | 1.032976% |
| B | 5034 | 43 | 0.854191% |
| C | 5034 | 84 | 1.668653% |
| D | 5035 | 190 | 3.773585% |

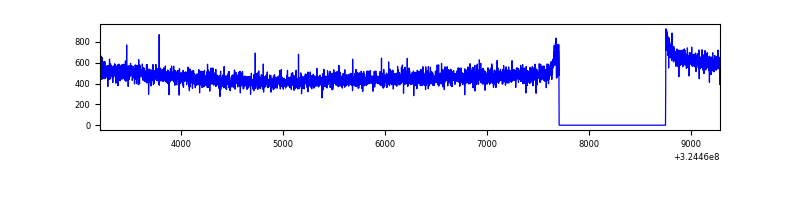

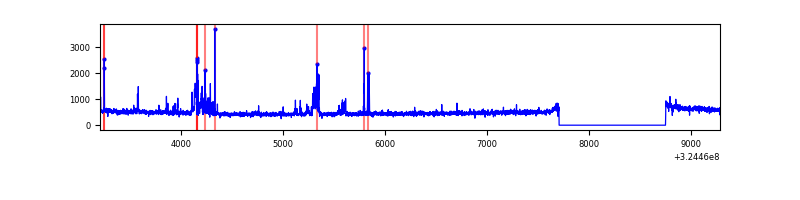

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6079 | 5035 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6079 | 5035 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6079 | 5034 | 10 | 10 | 0.16% | 0.20% |  |
| D | 6080 | 5036 | 116 | 116 | 1.91% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7958 | 58.52 | 619 | 607 | 125.6 |
| A | 3 | 137 | 5564 | 39.46 | 619 | 607 | 125.6 |
| A | 0 | 226 | 5404 | 38.19 | 619 | 607 | 125.6 |
| B | 12 | 111 | 13838 | 113.02 | 610 | 595 | 117.2 |
| B | 11 | 111 | 12647 | 102.85 | 610 | 595 | 117.2 |
| B | 14 | 111 | 11321 | 91.54 | 610 | 595 | 117.2 |
| C | 2 | 16 | 185720 | 1358.06 | 585 | 589 | 136.3 |
| C | 14 | 238 | 95309 | 694.84 | 585 | 589 | 136.3 |
| C | 5 | 112 | 17793 | 126.2 | 585 | 589 | 136.3 |
| D | 8 | 195 | 2271059 | 15760.06 | 594 | 575 | 144.1 |
| D | 1 | 52 | 293228 | 2031.39 | 594 | 575 | 144.1 |
| D | 12 | 218 | 135244 | 934.78 | 594 | 575 | 144.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

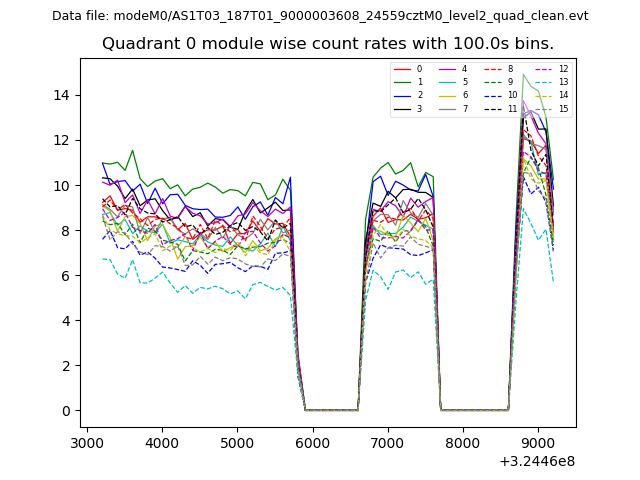

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

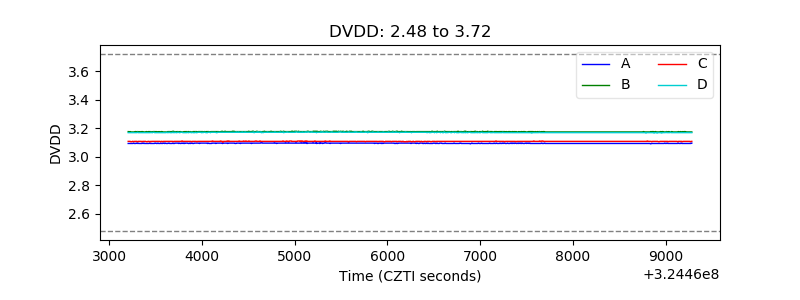

| D_VDD |  |

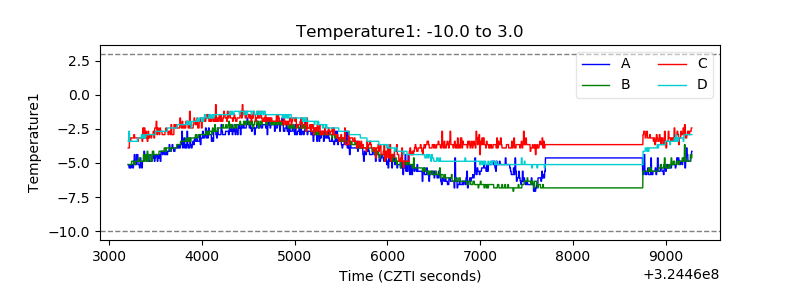

| Temperature 1 |  |

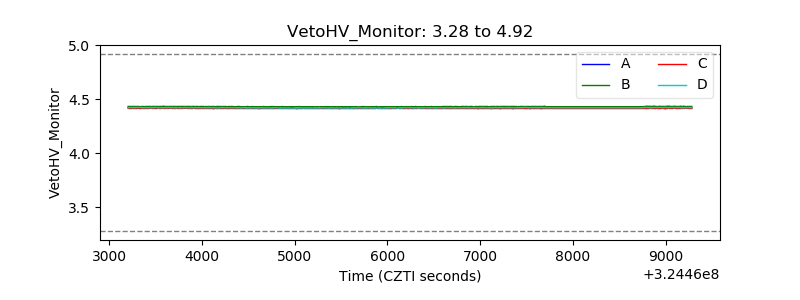

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
