| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003610_24578cztM0_level2.evt | modeM0/AS1T03_183T01_9000003610_24578cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,245,760 | 133,030,080 |
| Size | 509.5 MB | 126.9 MB |
| Events in quadrant A | 3,069,699 | 949,602 |
| Events in quadrant B | 3,233,213 | 957,947 |
| Events in quadrant C | 4,297,306 | 866,676 |
| Events in quadrant D | 5,185,105 | 847,944 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12800 | 1 |
| B | 0 | 13266 | 1 |
| C | 0 | 16659 | 6 |
| D | 0 | 19566 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5830 | 94 | 1.612350% |
| B | 5830 | 127 | 2.178388% |
| C | 5830 | 387 | 6.638079% |
| D | 5830 | 335 | 5.746141% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7195 | 5831 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7195 | 5831 | 11 | 11 | 0.15% | 0.19% |  |
| C | 7195 | 5830 | 173 | 173 | 2.40% | 2.97% |  |
| D | 7195 | 5830 | 305 | 305 | 4.24% | 5.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9691 | 56.13 | 795 | 782 | 158.7 |
| A | 0 | 226 | 6929 | 38.73 | 795 | 782 | 158.7 |
| A | 3 | 137 | 6462 | 35.79 | 795 | 782 | 158.7 |
| B | 3 | 64 | 121806 | 840.67 | 788 | 772 | 144.0 |
| B | 0 | 190 | 18937 | 126.17 | 788 | 772 | 144.0 |
| B | 12 | 111 | 16275 | 107.68 | 788 | 772 | 144.0 |
| C | 7 | 247 | 1244539 | 7446.57 | 732 | 739 | 167.0 |
| C | 14 | 238 | 119678 | 712.08 | 732 | 739 | 167.0 |
| C | 2 | 16 | 68100 | 403.29 | 732 | 739 | 167.0 |
| D | 8 | 195 | 1321598 | 7450.42 | 744 | 723 | 177.3 |
| D | 12 | 218 | 1018926 | 5743.19 | 744 | 723 | 177.3 |
| D | 2 | 234 | 26615 | 146.04 | 744 | 723 | 177.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

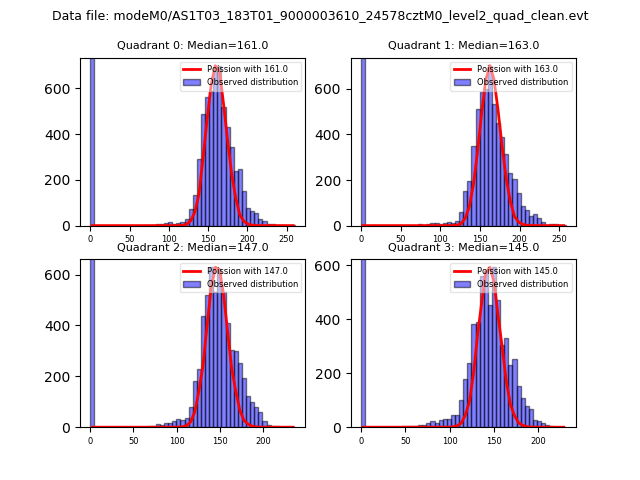

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
