| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_183T01_9000003610_24581cztM0_level2.evt | modeM0/AS1T03_183T01_9000003610_24581cztM0_level2_quad_clean.evt |
| Size (bytes) | 848,194,560 | 115,983,360 |
| Size | 808.9 MB | 110.6 MB |
| Events in quadrant A | 3,217,607 | 827,640 |
| Events in quadrant B | 3,371,675 | 839,279 |
| Events in quadrant C | 13,836,877 | 605,570 |
| Events in quadrant D | 4,797,477 | 760,013 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14097 | 2 |
| B | 0 | 14440 | 2 |
| C | 0 | 45776 | 2 |
| D | 0 | 19101 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6865 | 18 | 0.262200% |
| B | 6865 | 51 | 0.742899% |
| C | 6864 | 4498 | 65.530303% |
| D | 6864 | 65 | 0.946970% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 6866 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7580 | 6866 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7579 | 6864 | 3734 | 3734 | 49.27% | 54.40% |  |
| D | 7579 | 6865 | 33 | 33 | 0.44% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10780 | 59.34 | 833 | 818 | 167.9 |
| A | 3 | 137 | 7609 | 40.45 | 833 | 818 | 167.9 |
| A | 0 | 226 | 7233 | 38.21 | 833 | 818 | 167.9 |
| B | 15 | 32 | 87712 | 550.71 | 831 | 809 | 157.8 |
| B | 12 | 111 | 18674 | 113.21 | 831 | 809 | 157.8 |
| B | 11 | 111 | 16600 | 100.07 | 831 | 809 | 157.8 |
| C | 7 | 247 | 10995551 | 71155.74 | 671 | 676 | 154.5 |
| C | 14 | 238 | 104973 | 674.98 | 671 | 676 | 154.5 |
| C | 2 | 16 | 67383 | 431.71 | 671 | 676 | 154.5 |
| D | 8 | 195 | 1421087 | 7426.15 | 792 | 770 | 191.3 |
| D | 1 | 52 | 145206 | 755.19 | 792 | 770 | 191.3 |
| D | 7 | 238 | 127242 | 661.26 | 792 | 770 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

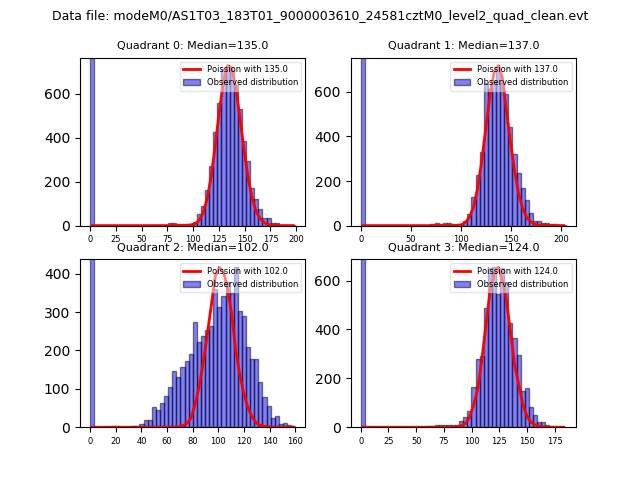

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

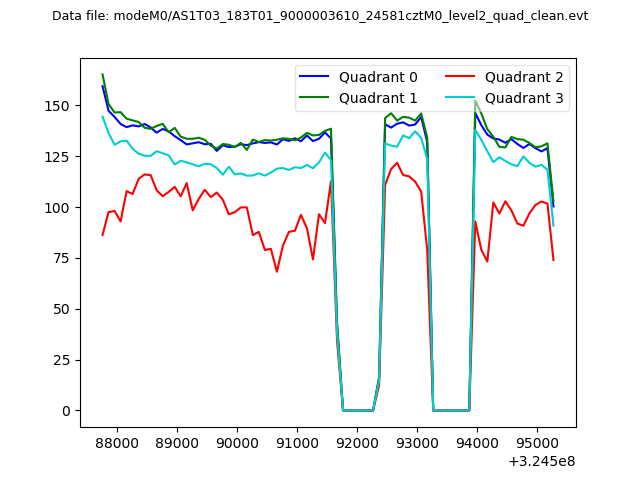

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

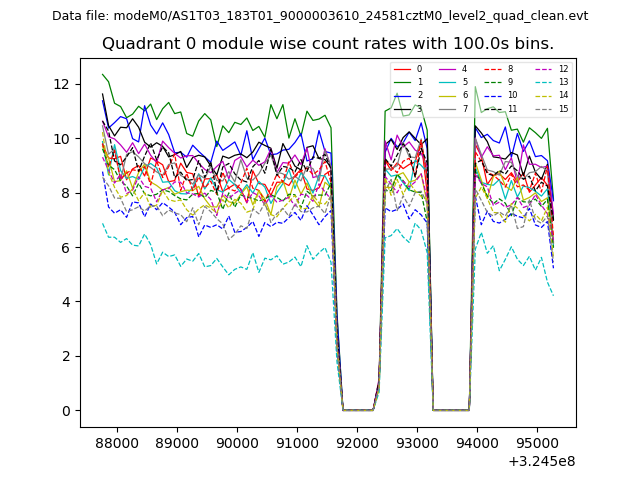

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

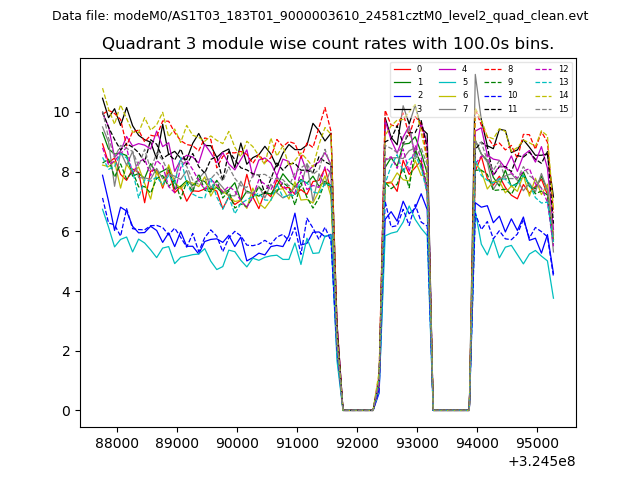

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

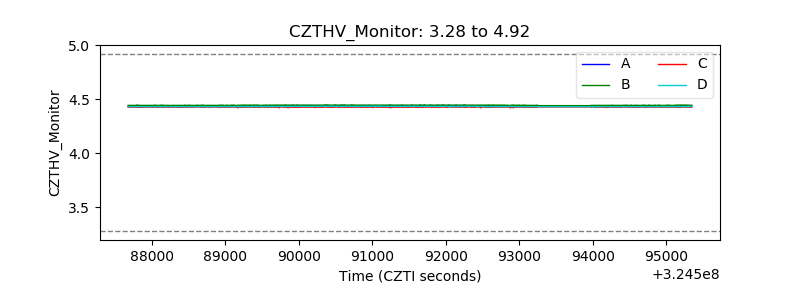

| CZT HV Monitor |  |
| D_VDD |  |

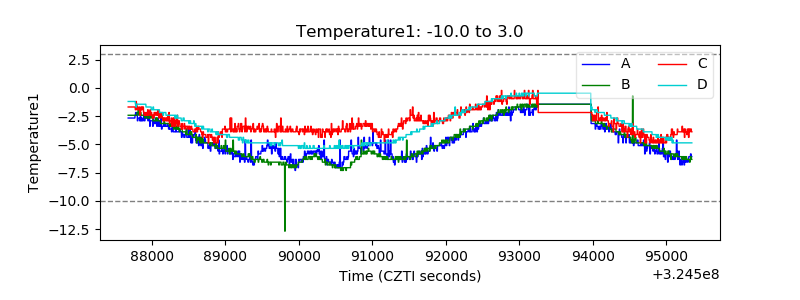

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

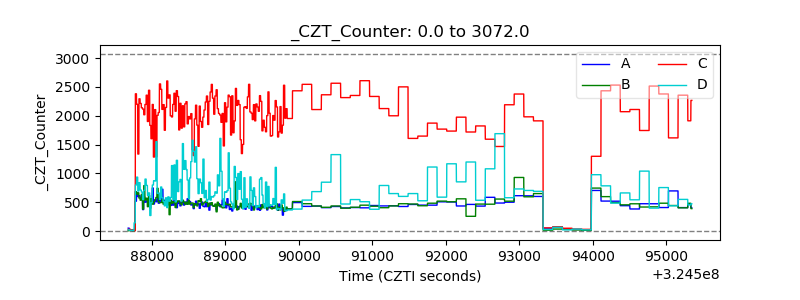

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

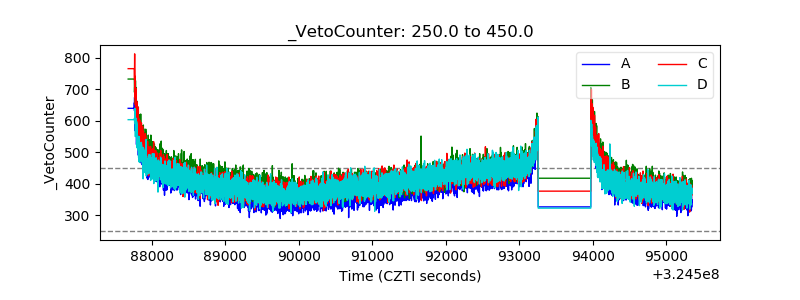

| Veto Counter |  |
