| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_188T01_9000003612_24588cztM0_level2.evt | modeM0/AS1T03_188T01_9000003612_24588cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,537,511,040 | 228,839,040 |
| Size | 1.4 GB | 218.2 MB |
| Events in quadrant A | 8,358,160 | 1,475,393 |
| Events in quadrant B | 10,367,490 | 1,482,031 |
| Events in quadrant C | 11,672,455 | 1,404,156 |
| Events in quadrant D | 14,984,838 | 1,360,725 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36056 | 3 |
| B | 0 | 41828 | 3 |
| C | 0 | 46230 | 3 |
| D | 0 | 56603 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 358 | 0 |
| B | 0 | 358 | 0 |
| C | 0 | 358 | 0 |
| D | 0 | 358 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17525 | 135 | 0.770328% |
| B | 17526 | 668 | 3.811480% |
| C | 17526 | 587 | 3.349310% |
| D | 17525 | 786 | 4.485021% |

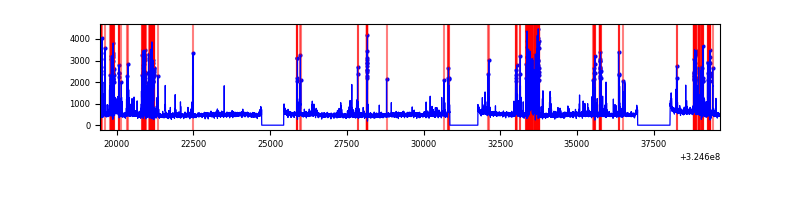

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20215 | 17527 | 1 | 1 | 0.00% | 0.01% |  |
| B | 20216 | 17527 | 318 | 318 | 1.57% | 1.81% |  |
| C | 20216 | 17529 | 151 | 151 | 0.75% | 0.86% |  |
| D | 20215 | 17527 | 719 | 719 | 3.56% | 4.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 255 | 33225 | 72.48 | 2159 | 2115 | 429.2 |
| A | 13 | 254 | 27600 | 59.38 | 2159 | 2115 | 429.2 |
| A | 3 | 137 | 19369 | 40.2 | 2159 | 2115 | 429.2 |
| B | 3 | 64 | 1975633 | 4903.9 | 2120 | 2065 | 402.4 |
| B | 12 | 111 | 48378 | 115.08 | 2120 | 2065 | 402.4 |
| B | 11 | 111 | 44041 | 104.3 | 2120 | 2065 | 402.4 |
| C | 7 | 247 | 2923992 | 6107.8 | 2066 | 2079 | 478.4 |
| C | 2 | 16 | 337300 | 700.73 | 2066 | 2079 | 478.4 |
| C | 14 | 238 | 328639 | 682.62 | 2066 | 2079 | 478.4 |
| D | 8 | 195 | 4887743 | 9763.46 | 2078 | 2017 | 500.4 |
| D | 1 | 255 | 1444329 | 2882.26 | 2078 | 2017 | 500.4 |
| D | 1 | 52 | 720067 | 1434.92 | 2078 | 2017 | 500.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

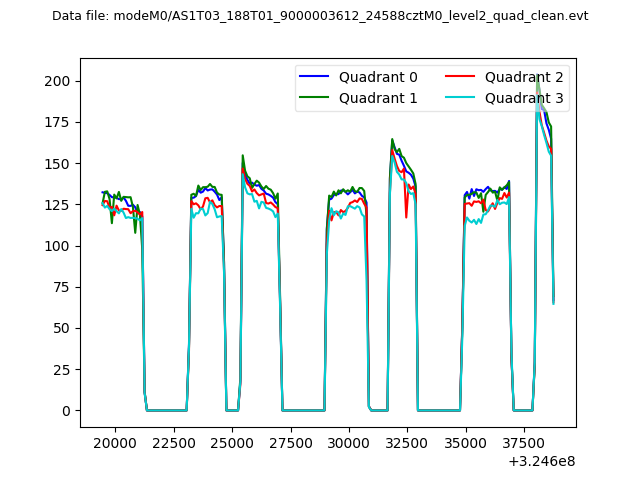

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

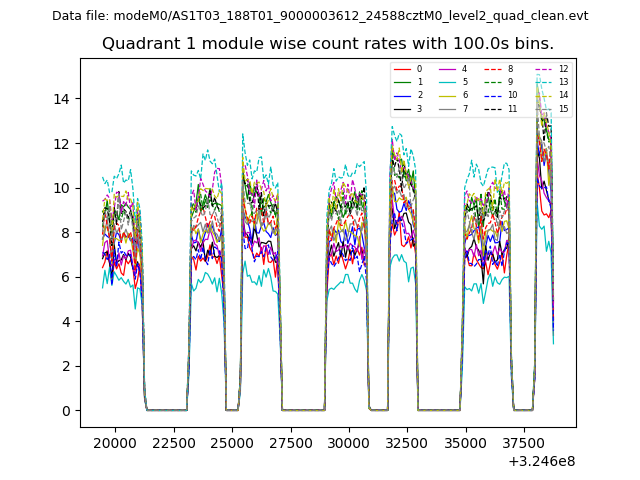

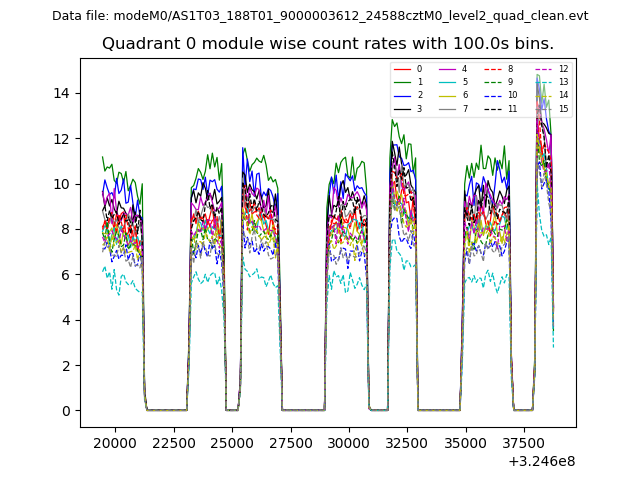

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

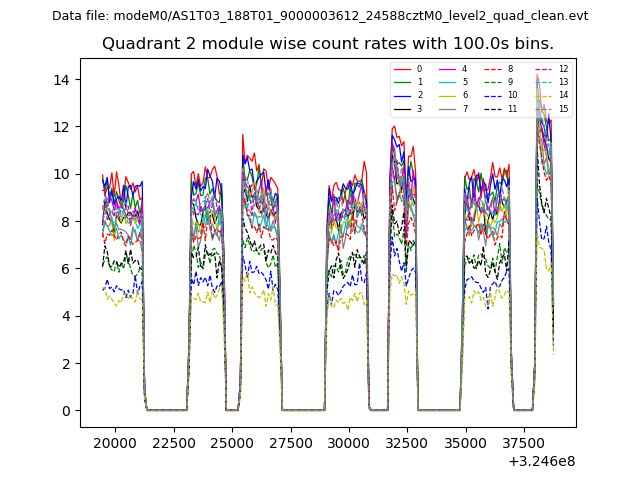

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

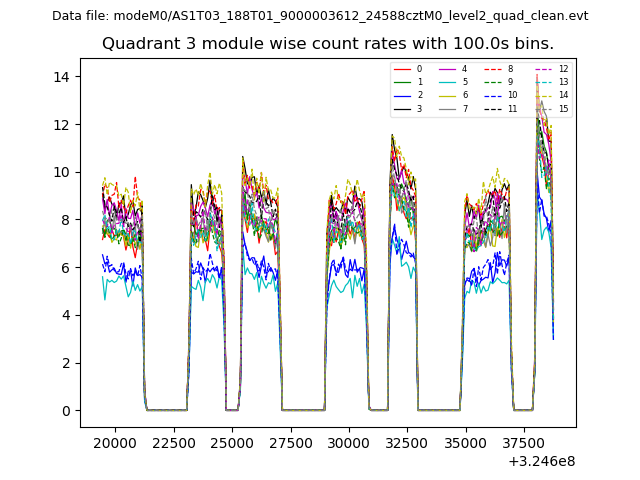

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

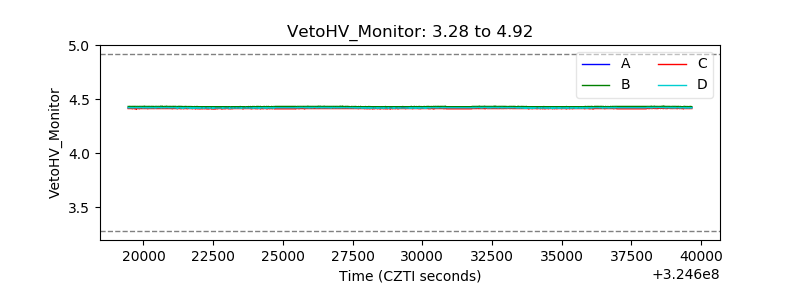

| Veto HV Monitor |  |
| Veto LLD |  |

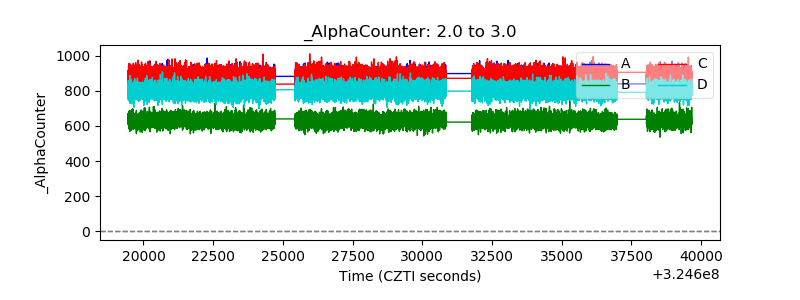

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
