| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_189T01_9000003614_24597cztM0_level2.evt | modeM0/AS1T03_189T01_9000003614_24597cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,252,160 | 115,741,440 |
| Size | 534.3 MB | 110.4 MB |
| Events in quadrant A | 3,789,816 | 757,856 |
| Events in quadrant B | 3,900,332 | 767,242 |
| Events in quadrant C | 4,016,361 | 732,009 |
| Events in quadrant D | 4,731,566 | 705,913 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16478 | 5 |
| B | 0 | 16652 | 2 |
| C | 0 | 17057 | 2 |
| D | 0 | 19437 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7796 | 112 | 1.436634% |
| B | 7798 | 188 | 2.410875% |
| C | 7798 | 224 | 2.872531% |
| D | 7797 | 283 | 3.629601% |

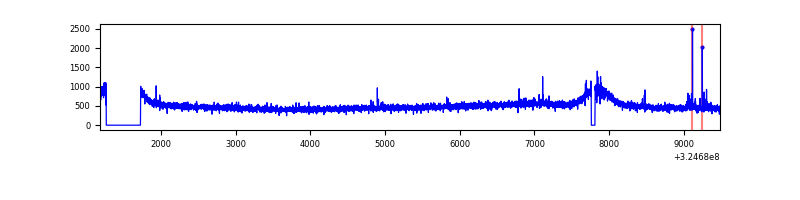

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8307 | 7799 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8308 | 7800 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8308 | 7800 | 8 | 8 | 0.10% | 0.10% |  |
| D | 8308 | 7800 | 202 | 202 | 2.43% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10499 | 47.83 | 981 | 960 | 199.4 |
| A | 3 | 137 | 9333 | 41.99 | 981 | 960 | 199.4 |
| A | 0 | 226 | 8552 | 38.07 | 981 | 960 | 199.4 |
| B | 3 | 64 | 38429 | 198.83 | 977 | 950 | 188.5 |
| B | 7 | 202 | 25620 | 130.87 | 977 | 950 | 188.5 |
| B | 12 | 111 | 23992 | 122.24 | 977 | 950 | 188.5 |
| C | 14 | 238 | 148927 | 660.91 | 947 | 952 | 223.9 |
| C | 10 | 9 | 145677 | 646.4 | 947 | 952 | 223.9 |
| C | 7 | 247 | 18894 | 80.14 | 947 | 952 | 223.9 |
| D | 1 | 52 | 991369 | 4251.89 | 948 | 919 | 232.9 |
| D | 8 | 195 | 119989 | 511.15 | 948 | 919 | 232.9 |
| D | 2 | 234 | 37051 | 155.11 | 948 | 919 | 232.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

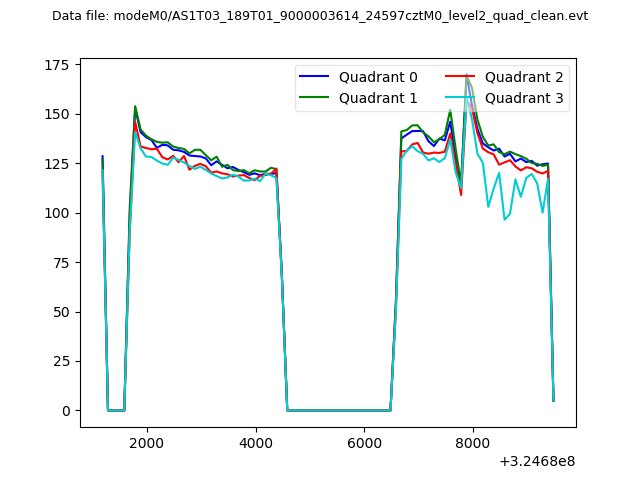

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

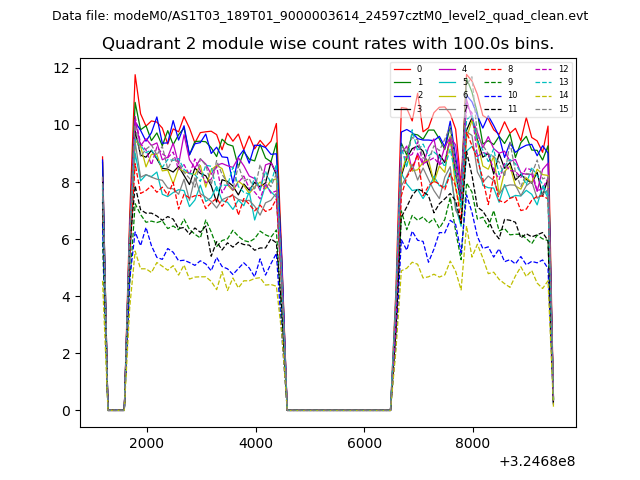

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

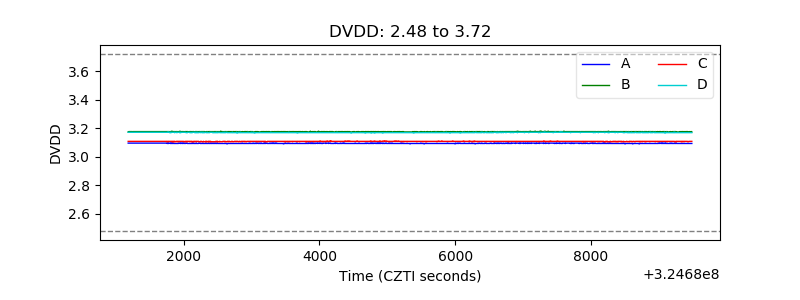

| D_VDD |  |

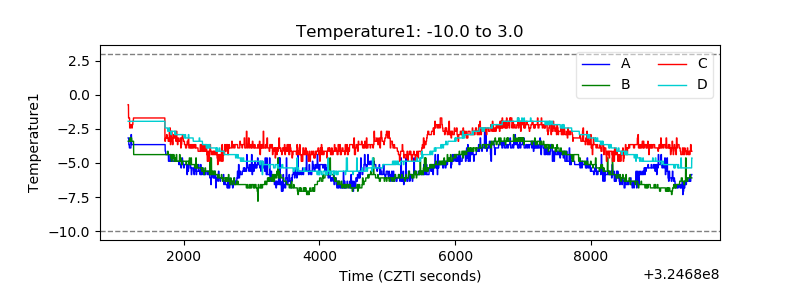

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

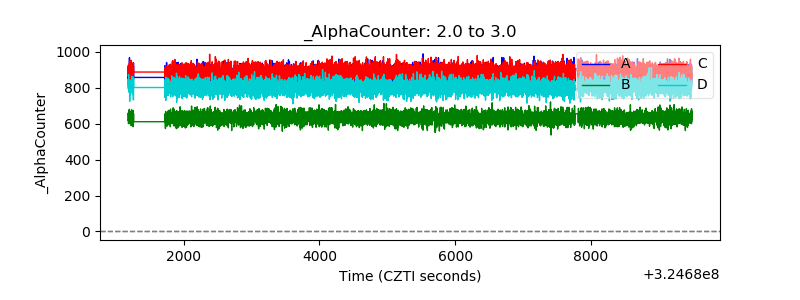

| Alpha Counter |  |

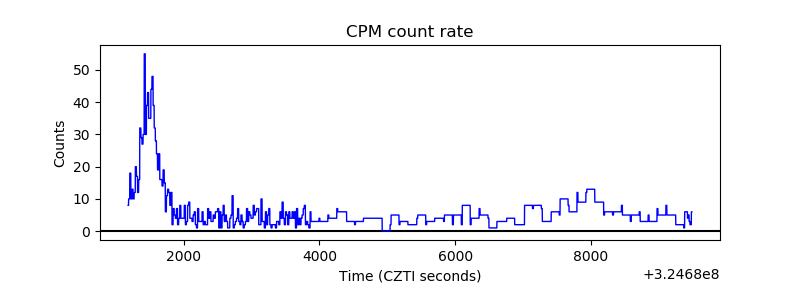

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

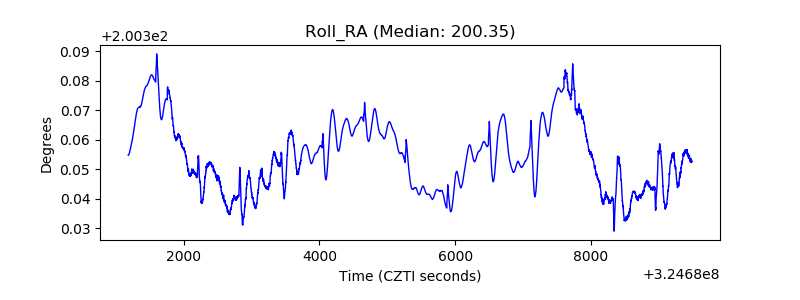

| _Roll_RA |  |
| Veto Counter |  |
