| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_189T01_9000003614_24605cztM0_level2.evt | modeM0/AS1T03_189T01_9000003614_24605cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,289,920 | 77,227,200 |
| Size | 495.2 MB | 73.6 MB |
| Events in quadrant A | 3,499,947 | 486,073 |
| Events in quadrant B | 3,560,241 | 488,888 |
| Events in quadrant C | 3,630,741 | 460,414 |
| Events in quadrant D | 4,602,295 | 456,764 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14548 | 2 |
| B | 0 | 14678 | 2 |
| C | 0 | 14812 | 2 |
| D | 0 | 17775 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6398 | 63 | 0.984683% |
| B | 6398 | 82 | 1.281651% |
| C | 6398 | 113 | 1.766177% |
| D | 6398 | 91 | 1.422319% |

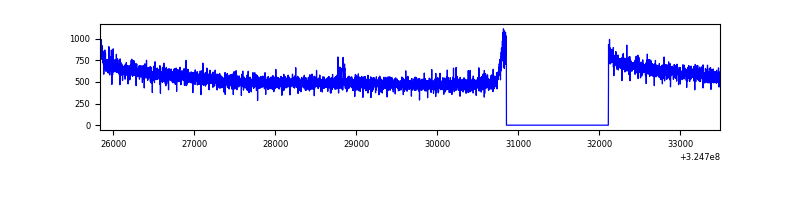

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7658 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7658 | 6398 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7658 | 6399 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7658 | 6398 | 23 | 23 | 0.30% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9276 | 46.87 | 906 | 893 | 178.9 |
| A | 0 | 226 | 7800 | 38.62 | 906 | 893 | 178.9 |
| A | 3 | 137 | 7677 | 37.93 | 906 | 893 | 178.9 |
| B | 3 | 64 | 48984 | 290.96 | 886 | 868 | 165.4 |
| B | 10 | 46 | 33076 | 194.76 | 886 | 868 | 165.4 |
| B | 12 | 111 | 19802 | 114.49 | 886 | 868 | 165.4 |
| C | 14 | 238 | 136978 | 701.49 | 848 | 855 | 194.0 |
| C | 7 | 247 | 81237 | 414.24 | 848 | 855 | 194.0 |
| C | 9 | 54 | 72497 | 369.2 | 848 | 855 | 194.0 |
| D | 13 | 104 | 841102 | 3984.6 | 869 | 845 | 210.9 |
| D | 1 | 52 | 206734 | 976.35 | 869 | 845 | 210.9 |
| D | 8 | 195 | 193202 | 912.18 | 869 | 845 | 210.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

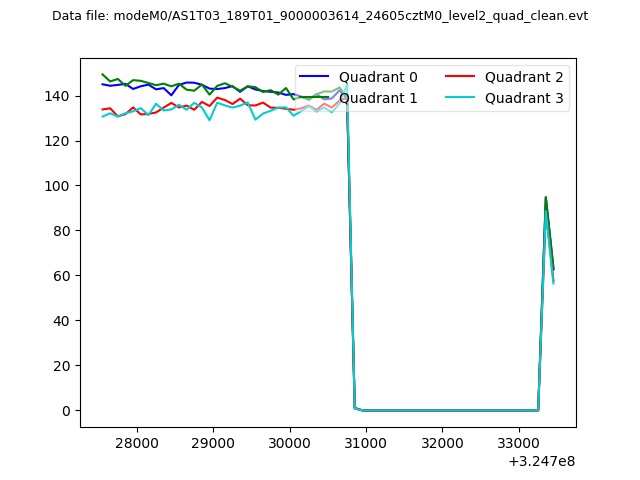

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

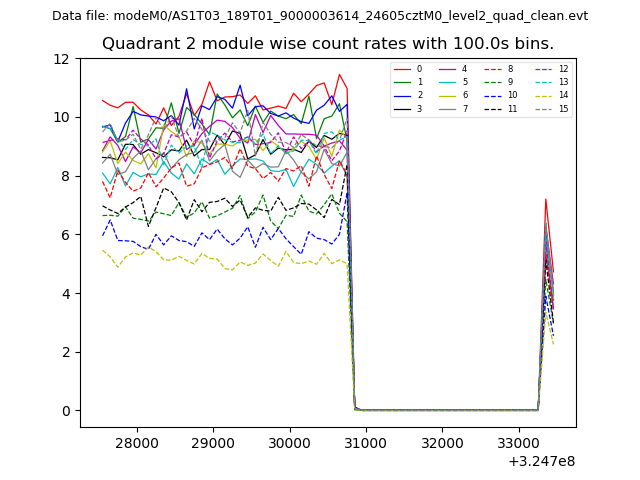

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

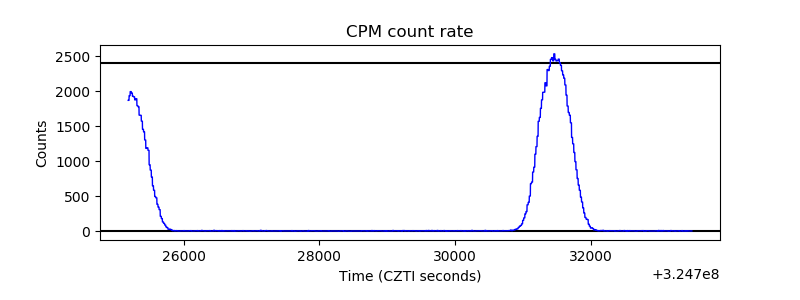

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

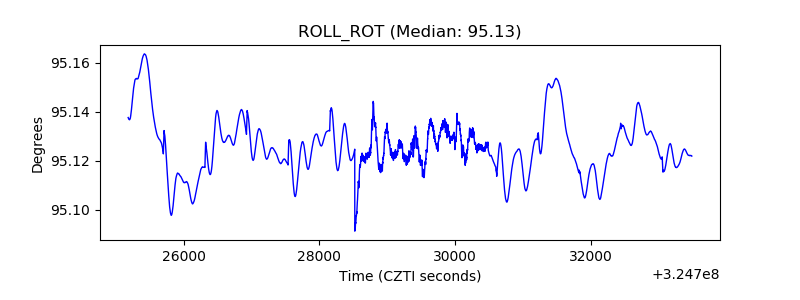

| _ROLL_ROT |  |

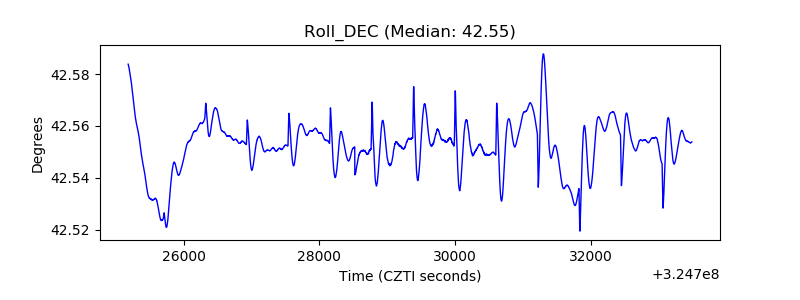

| _Roll_DEC |  |

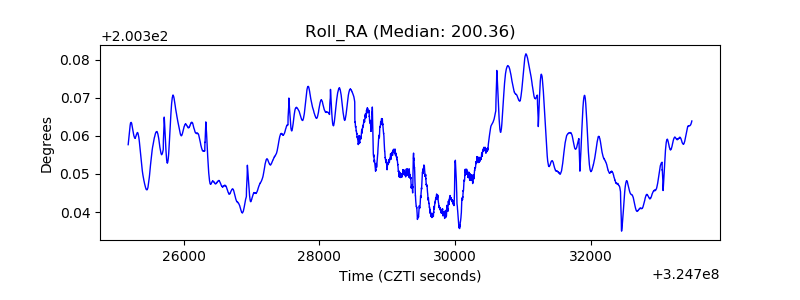

| _Roll_RA |  |

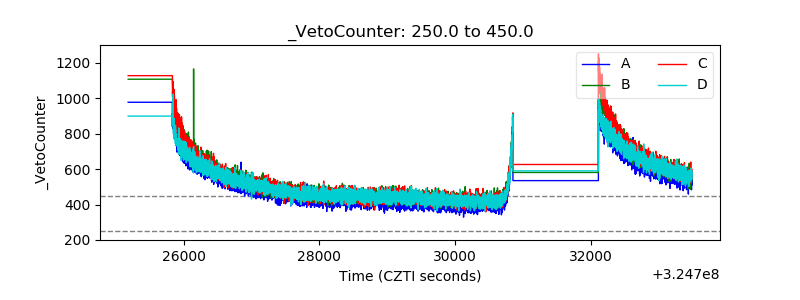

| Veto Counter |  |
