| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_189T01_9000003614_24620cztM0_level2.evt | modeM0/AS1T03_189T01_9000003614_24620cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,748,480 | 86,256,000 |
| Size | 477.6 MB | 82.3 MB |
| Events in quadrant A | 3,666,147 | 553,562 |
| Events in quadrant B | 3,711,626 | 555,496 |
| Events in quadrant C | 3,678,482 | 525,796 |
| Events in quadrant D | 3,667,005 | 523,016 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15123 | 2 |
| B | 0 | 15171 | 2 |
| C | 0 | 15005 | 2 |
| D | 0 | 15025 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6506 | 118 | 1.813710% |
| B | 6507 | 138 | 2.120793% |
| C | 6507 | 153 | 2.351314% |
| D | 6506 | 86 | 1.321857% |

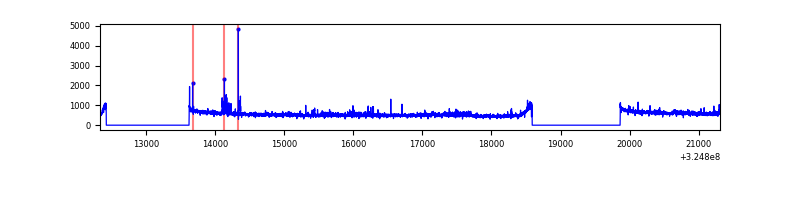

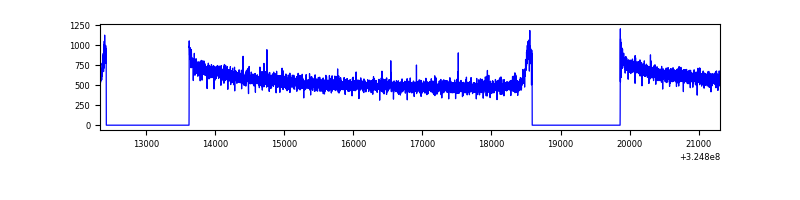

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8981 | 6506 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8982 | 6507 | 11 | 11 | 0.12% | 0.17% |  |
| C | 8982 | 6509 | 3 | 3 | 0.03% | 0.05% |  |
| D | 8981 | 6506 | 3 | 3 | 0.03% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10036 | 48.59 | 951 | 935 | 187.3 |
| A | 0 | 226 | 8288 | 39.25 | 951 | 935 | 187.3 |
| A | 3 | 137 | 8005 | 37.74 | 951 | 935 | 187.3 |
| B | 3 | 64 | 77900 | 442.28 | 926 | 904 | 174.1 |
| B | 12 | 111 | 20448 | 112.26 | 926 | 904 | 174.1 |
| B | 11 | 111 | 18756 | 102.55 | 926 | 904 | 174.1 |
| C | 14 | 238 | 146548 | 713.93 | 891 | 899 | 204.0 |
| C | 9 | 54 | 42442 | 203.63 | 891 | 899 | 204.0 |
| C | 3 | 233 | 7696 | 33.32 | 891 | 899 | 204.0 |
| D | 1 | 52 | 116492 | 529.7 | 915 | 891 | 218.2 |
| D | 8 | 195 | 93825 | 425.84 | 915 | 891 | 218.2 |
| D | 2 | 234 | 28835 | 128.04 | 915 | 891 | 218.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

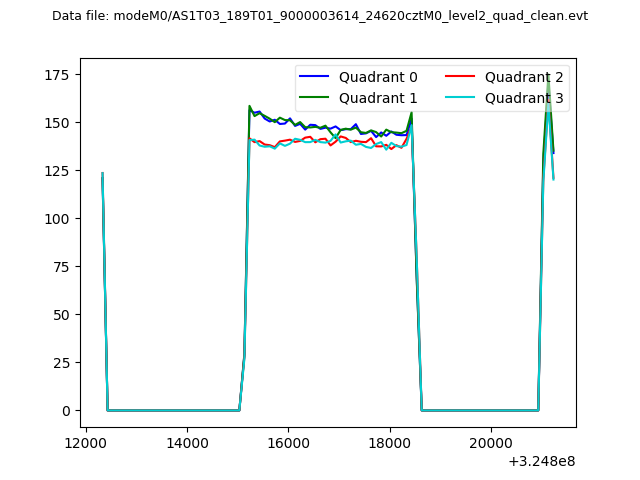

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

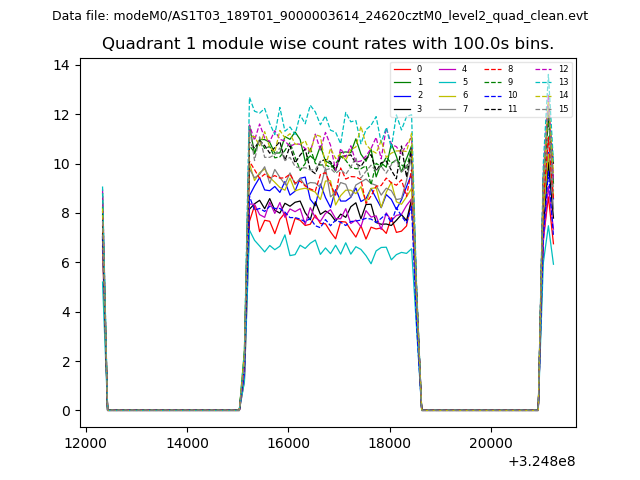

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

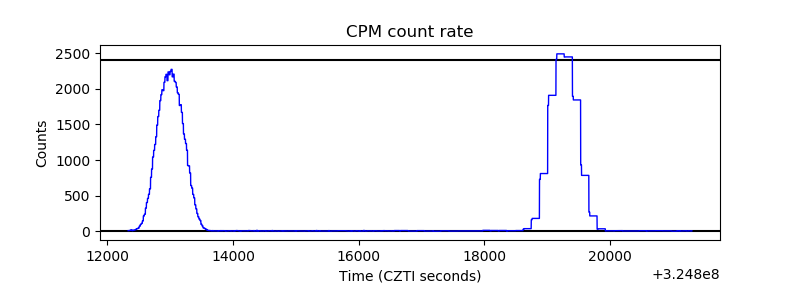

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

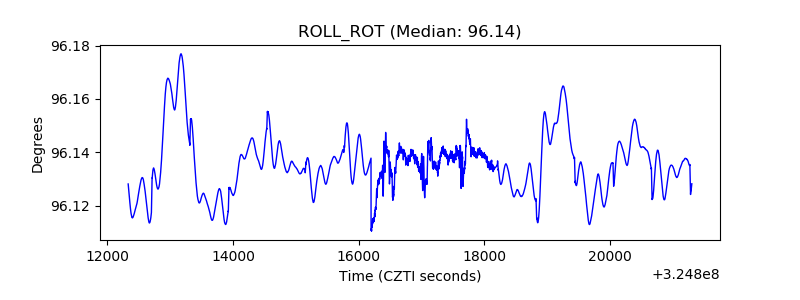

| _ROLL_ROT |  |

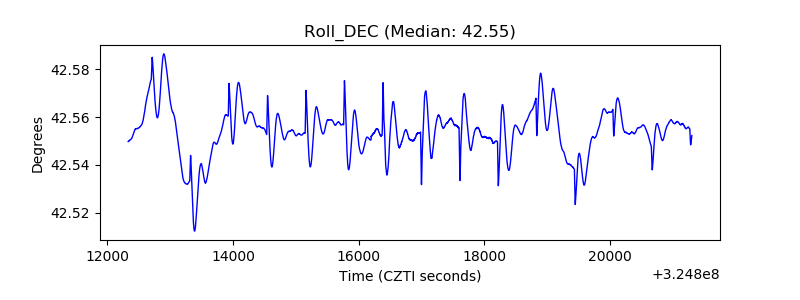

| _Roll_DEC |  |
| _Roll_RA |  |

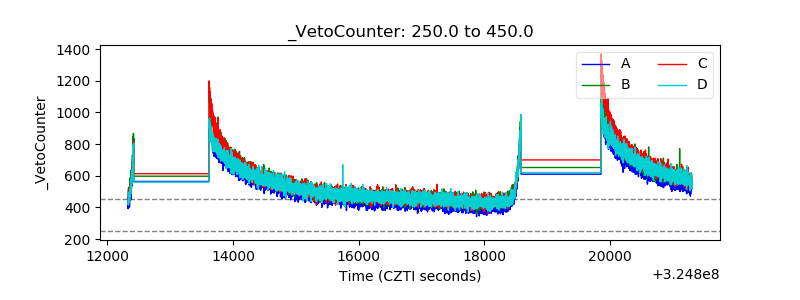

| Veto Counter |  |
