| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_189T01_9000003614_24625cztM0_level2.evt | modeM0/AS1T03_189T01_9000003614_24625cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,587,840 | 104,065,920 |
| Size | 476.4 MB | 99.2 MB |
| Events in quadrant A | 3,446,355 | 675,012 |
| Events in quadrant B | 3,871,282 | 675,739 |
| Events in quadrant C | 3,869,215 | 654,653 |
| Events in quadrant D | 3,459,772 | 650,452 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14833 | 2 |
| B | 0 | 16026 | 3 |
| C | 0 | 15949 | 2 |
| D | 0 | 15033 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7120 | 52 | 0.730337% |
| B | 7119 | 151 | 2.121084% |
| C | 7119 | 170 | 2.387976% |
| D | 7119 | 35 | 0.491642% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7595 | 7121 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7594 | 7120 | 37 | 37 | 0.49% | 0.52% |  |
| C | 7594 | 7120 | 18 | 18 | 0.24% | 0.25% |  |
| D | 7594 | 7120 | 13 | 13 | 0.17% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11491 | 59.79 | 890 | 873 | 177.6 |
| A | 6 | 16 | 8726 | 44.22 | 890 | 873 | 177.6 |
| A | 3 | 137 | 8400 | 42.38 | 890 | 873 | 177.6 |
| B | 3 | 64 | 406615 | 2425.69 | 876 | 854 | 167.3 |
| B | 12 | 111 | 21039 | 120.67 | 876 | 854 | 167.3 |
| B | 11 | 111 | 19064 | 108.86 | 876 | 854 | 167.3 |
| C | 7 | 247 | 196615 | 968.54 | 858 | 863 | 202.1 |
| C | 9 | 54 | 168928 | 831.55 | 858 | 863 | 202.1 |
| C | 14 | 238 | 135209 | 664.72 | 858 | 863 | 202.1 |
| D | 8 | 195 | 62038 | 288.15 | 873 | 850 | 212.3 |
| D | 1 | 52 | 33107 | 151.91 | 873 | 850 | 212.3 |
| D | 2 | 234 | 31643 | 145.01 | 873 | 850 | 212.3 |

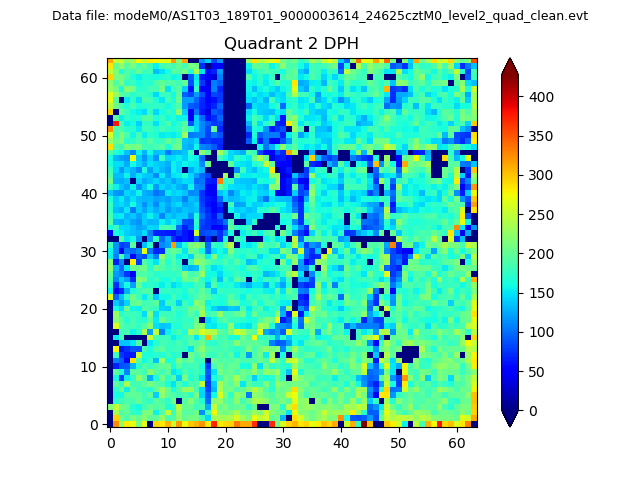

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

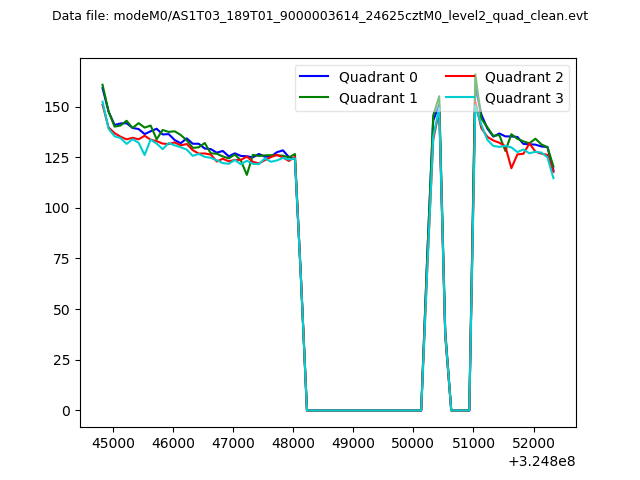

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

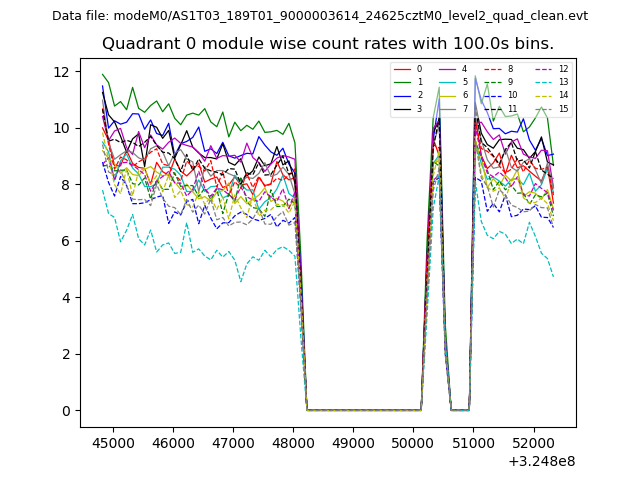

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

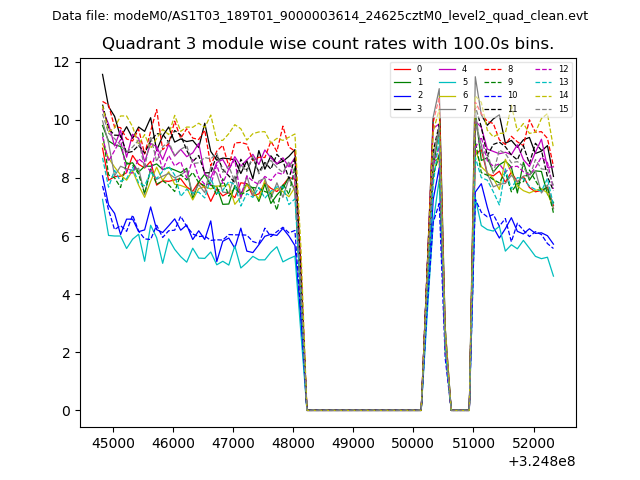

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

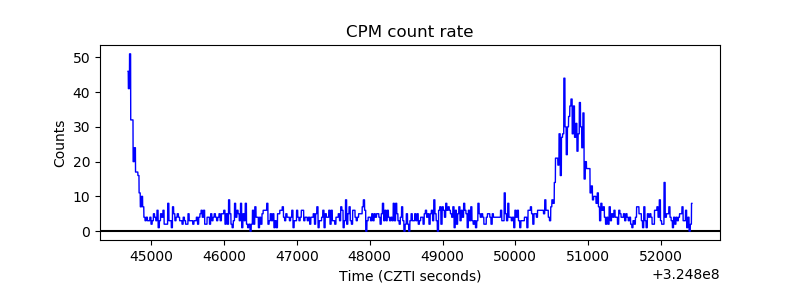

| _CPM_Rate |  |

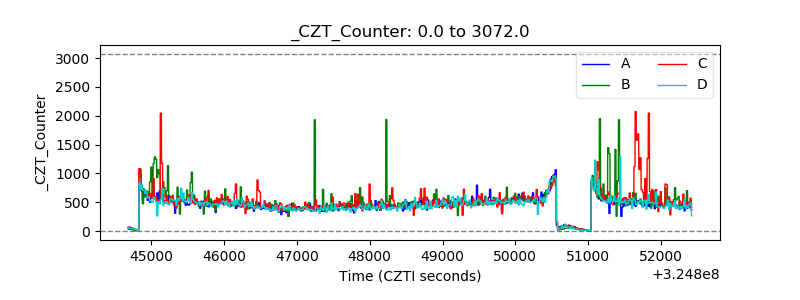

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

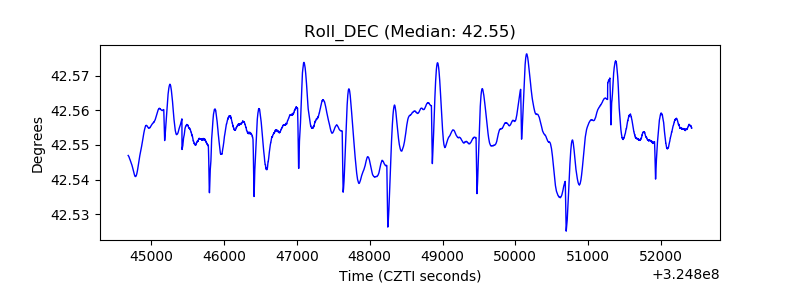

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
