| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T06_9000003616_24639cztM0_level2.evt | modeM0/AS1C05_012T06_9000003616_24639cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,124,160 | 135,293,760 |
| Size | 501.8 MB | 129.0 MB |
| Events in quadrant A | 3,872,405 | 916,884 |
| Events in quadrant B | 3,388,139 | 936,973 |
| Events in quadrant C | 4,287,354 | 885,578 |
| Events in quadrant D | 3,920,847 | 880,809 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16147 | 2 |
| B | 0 | 14489 | 2 |
| C | 0 | 17003 | 2 |
| D | 0 | 16412 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6850 | 117 | 1.708029% |
| B | 6850 | 53 | 0.773723% |
| C | 6850 | 336 | 4.905109% |
| D | 6850 | 107 | 1.562044% |

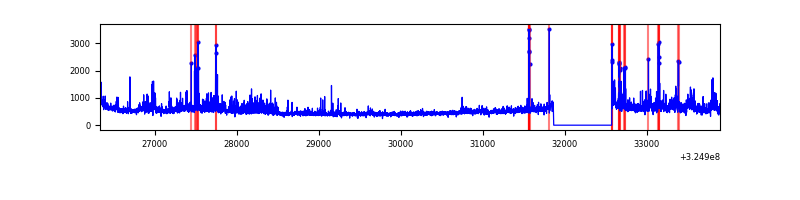

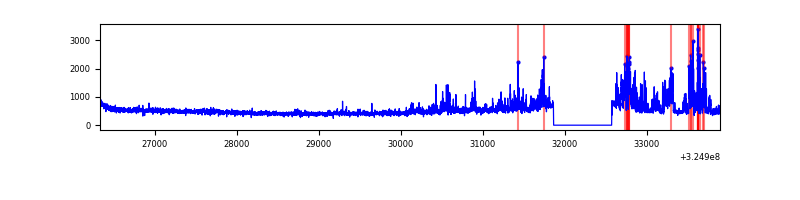

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7560 | 6851 | 24 | 24 | 0.32% | 0.35% |  |
| B | 7560 | 6851 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7560 | 6850 | 42 | 42 | 0.56% | 0.61% |  |
| D | 7560 | 6851 | 33 | 33 | 0.44% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 643407 | 3832.04 | 835 | 817 | 167.7 |
| A | 13 | 254 | 12349 | 68.77 | 835 | 817 | 167.7 |
| A | 5 | 168 | 7872 | 42.07 | 835 | 817 | 167.7 |
| B | 5 | 172 | 55051 | 347.08 | 832 | 810 | 156.3 |
| B | 0 | 190 | 45987 | 289.08 | 832 | 810 | 156.3 |
| B | 12 | 111 | 18904 | 115.78 | 832 | 810 | 156.3 |
| C | 7 | 247 | 687240 | 3711.11 | 802 | 806 | 185.0 |
| C | 2 | 16 | 266925 | 1438.73 | 802 | 806 | 185.0 |
| C | 14 | 238 | 128555 | 690.66 | 802 | 806 | 185.0 |
| D | 8 | 195 | 549674 | 2755.35 | 820 | 796 | 199.2 |
| D | 7 | 238 | 95707 | 476.45 | 820 | 796 | 199.2 |
| D | 10 | 70 | 73807 | 366.51 | 820 | 796 | 199.2 |

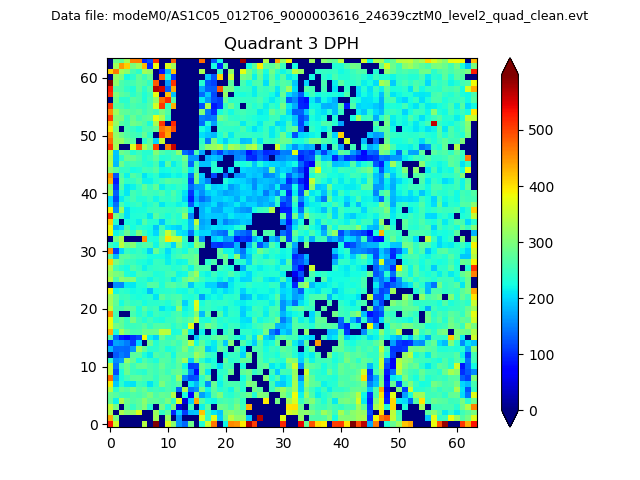

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

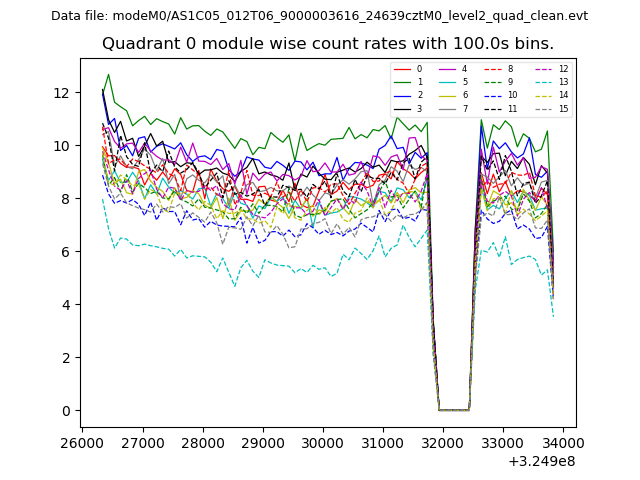

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

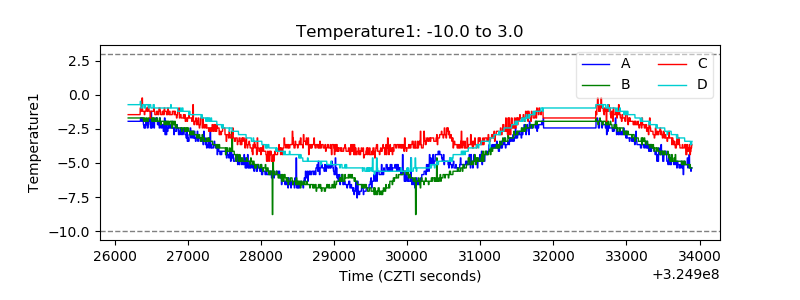

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

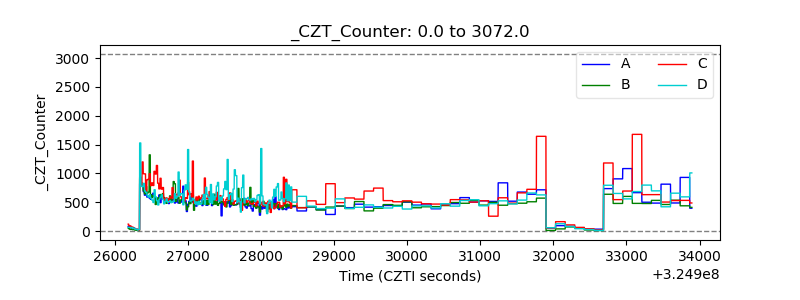

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

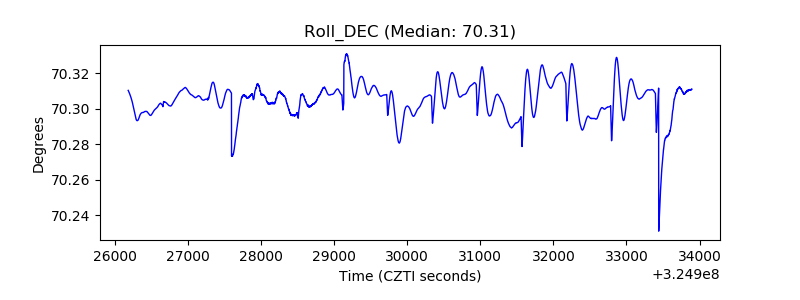

| _Roll_DEC |  |

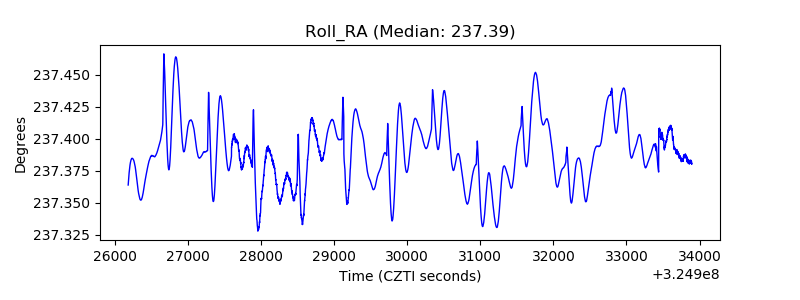

| _Roll_RA |  |
| Veto Counter |  |
