| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_191T01_9000003618_24653cztM0_level2.evt | modeM0/AS1T03_191T01_9000003618_24653cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,086,080 | 134,876,160 |
| Size | 434.0 MB | 128.6 MB |
| Events in quadrant A | 3,184,376 | 933,023 |
| Events in quadrant B | 3,322,013 | 929,617 |
| Events in quadrant C | 3,302,596 | 876,653 |
| Events in quadrant D | 3,516,364 | 877,365 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13782 | 2 |
| B | 0 | 14145 | 2 |
| C | 0 | 14082 | 2 |
| D | 0 | 14844 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6726 | 16 | 0.237883% |
| B | 6727 | 30 | 0.445964% |
| C | 6727 | 67 | 0.995986% |
| D | 6727 | 20 | 0.297309% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 6727 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7647 | 6728 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7647 | 6728 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7647 | 6728 | 7 | 7 | 0.09% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11624 | 65.51 | 825 | 810 | 165.1 |
| A | 3 | 137 | 7222 | 38.84 | 825 | 810 | 165.1 |
| A | 0 | 226 | 7206 | 38.74 | 825 | 810 | 165.1 |
| B | 5 | 172 | 69579 | 451.11 | 813 | 793 | 152.5 |
| B | 0 | 189 | 38366 | 246.41 | 813 | 793 | 152.5 |
| B | 0 | 190 | 23241 | 147.22 | 813 | 793 | 152.5 |
| C | 14 | 238 | 125100 | 693.57 | 774 | 778 | 179.2 |
| C | 7 | 247 | 75513 | 416.93 | 774 | 778 | 179.2 |
| C | 3 | 233 | 44521 | 244.03 | 774 | 778 | 179.2 |
| D | 8 | 195 | 203350 | 1067.74 | 792 | 771 | 189.7 |
| D | 1 | 52 | 69067 | 359.97 | 792 | 771 | 189.7 |
| D | 12 | 235 | 66892 | 348.51 | 792 | 771 | 189.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

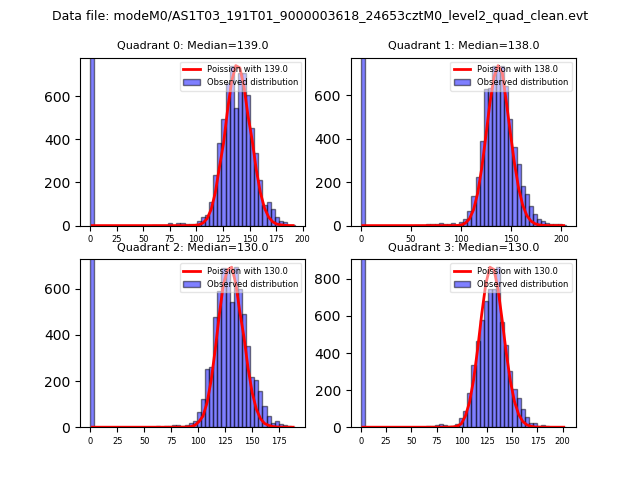

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

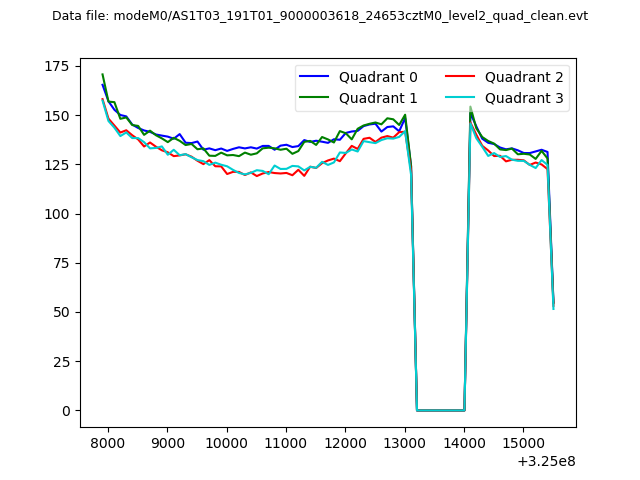

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

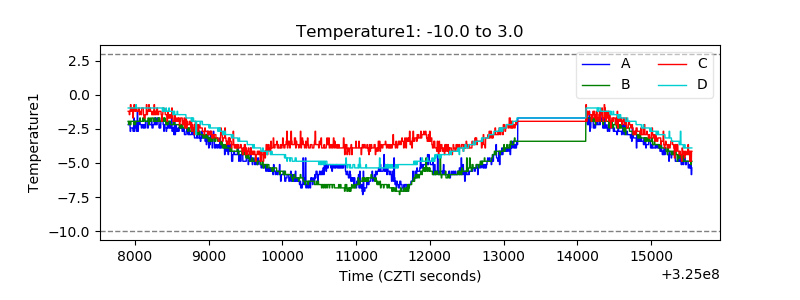

| Temperature 1 |  |
| Veto HV Monitor |  |

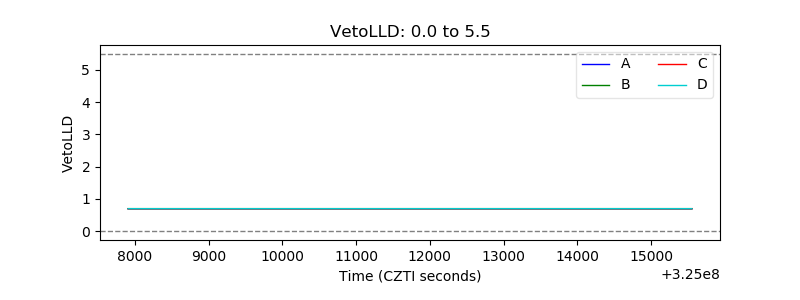

| Veto LLD |  |
| Alpha Counter |  |

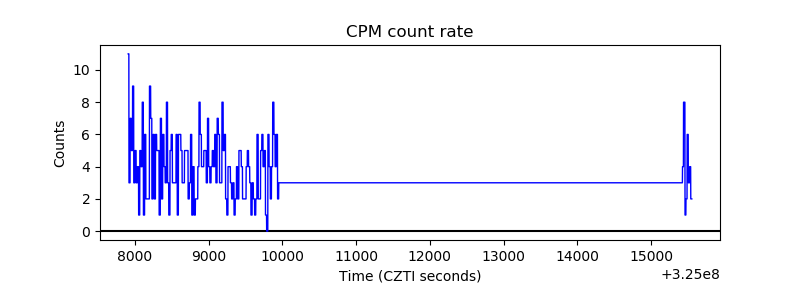

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

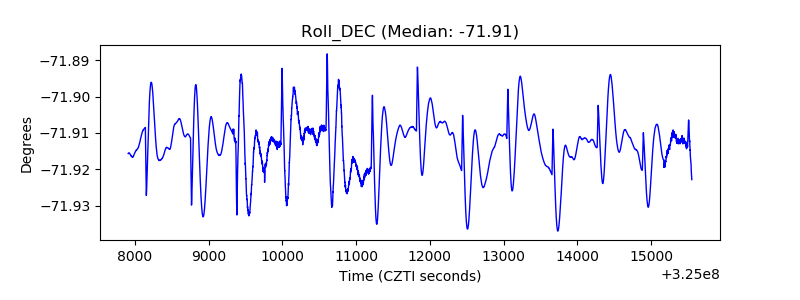

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
