| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_191T01_9000003618_24654cztM0_level2.evt | modeM0/AS1T03_191T01_9000003618_24654cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,760,320 | 139,392,000 |
| Size | 490.0 MB | 132.9 MB |
| Events in quadrant A | 3,381,557 | 956,775 |
| Events in quadrant B | 3,602,822 | 954,899 |
| Events in quadrant C | 3,744,220 | 907,086 |
| Events in quadrant D | 4,340,753 | 900,754 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14815 | 3 |
| B | 0 | 15377 | 2 |
| C | 0 | 15781 | 2 |
| D | 0 | 17671 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7220 | 36 | 0.498615% |
| B | 7220 | 91 | 1.260388% |
| C | 7220 | 101 | 1.398892% |
| D | 7220 | 76 | 1.052632% |

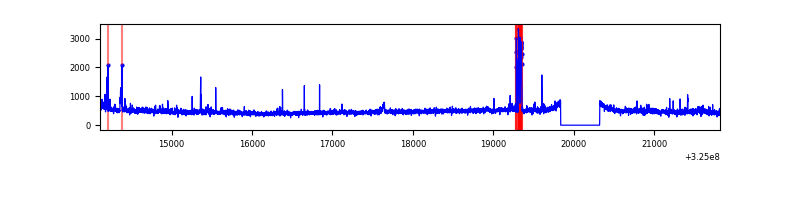

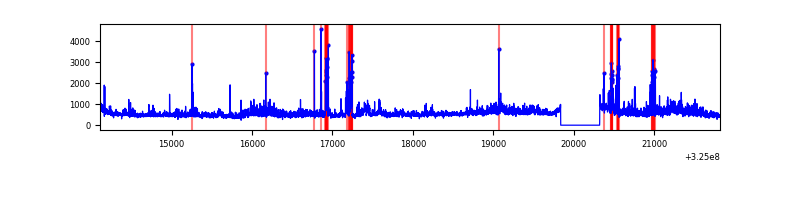

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7705 | 7221 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7705 | 7221 | 36 | 36 | 0.47% | 0.50% |  |
| C | 7705 | 7221 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7705 | 7221 | 49 | 49 | 0.64% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 26948 | 150.44 | 869 | 851 | 173.5 |
| A | 13 | 254 | 12600 | 67.73 | 869 | 851 | 173.5 |
| A | 3 | 137 | 7940 | 40.86 | 869 | 851 | 173.5 |
| B | 5 | 172 | 157037 | 964.95 | 857 | 837 | 161.9 |
| B | 0 | 189 | 35589 | 214.69 | 857 | 837 | 161.9 |
| B | 0 | 190 | 26097 | 156.05 | 857 | 837 | 161.9 |
| C | 3 | 233 | 191520 | 1007.4 | 820 | 826 | 189.3 |
| C | 7 | 247 | 177165 | 931.56 | 820 | 826 | 189.3 |
| C | 14 | 238 | 130204 | 683.48 | 820 | 826 | 189.3 |
| D | 8 | 195 | 686924 | 3412.23 | 836 | 813 | 201.1 |
| D | 1 | 52 | 354725 | 1760.11 | 836 | 813 | 201.1 |
| D | 7 | 238 | 40466 | 197.21 | 836 | 813 | 201.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

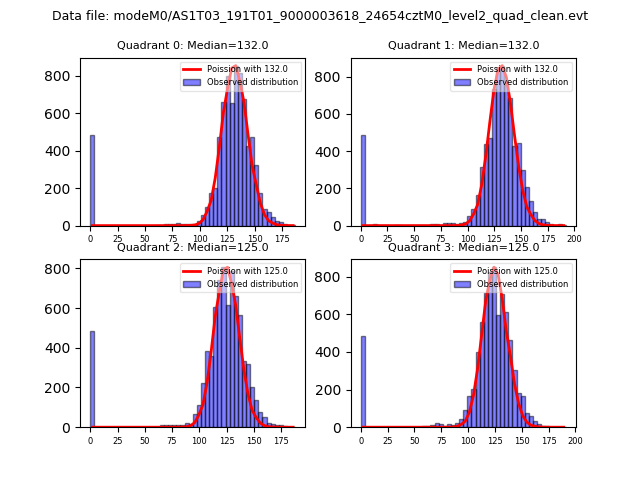

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

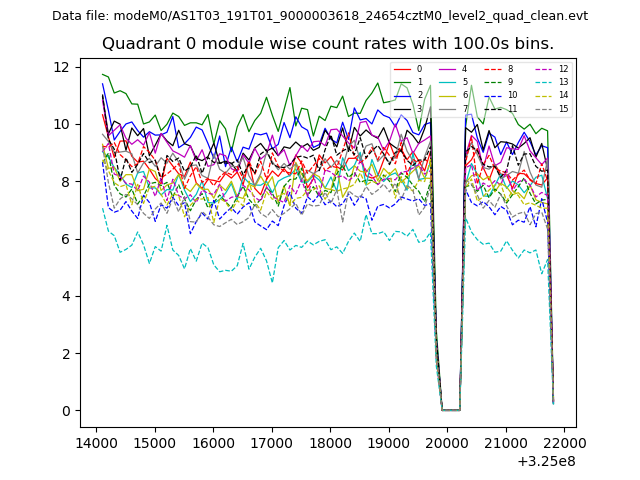

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

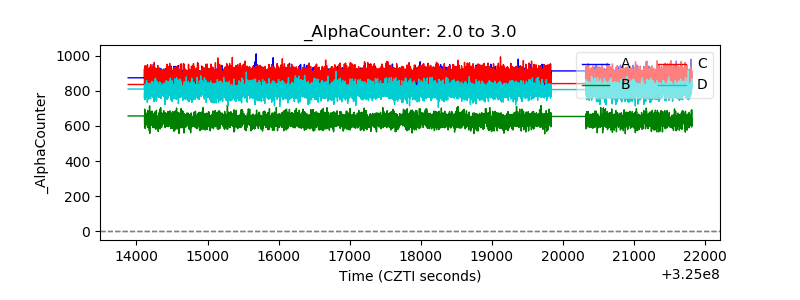

| Alpha Counter |  |
| _CPM_Rate |  |

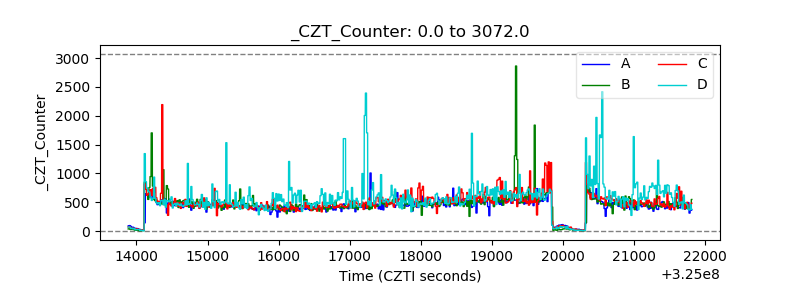

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

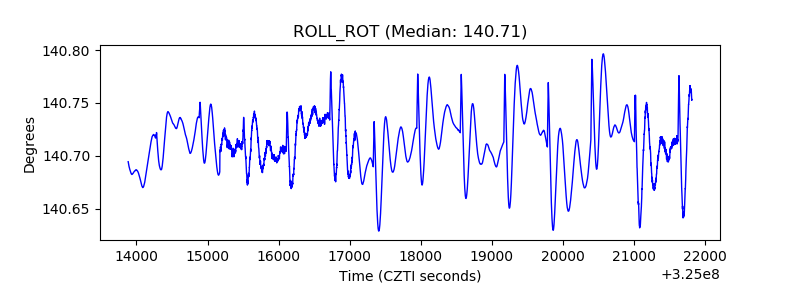

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

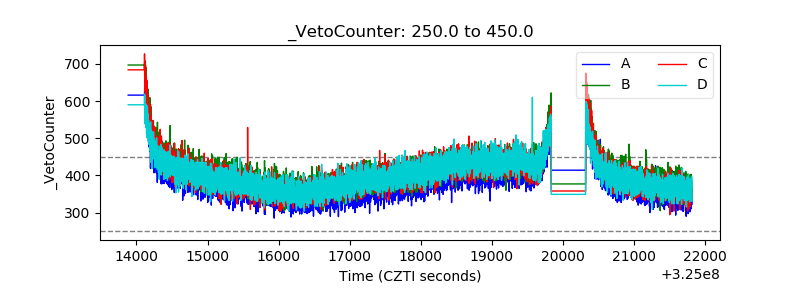

| Veto Counter |  |
