| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_191T01_9000003618_24669cztM0_level2.evt | modeM0/AS1T03_191T01_9000003618_24669cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,181,440 | 137,206,080 |
| Size | 480.8 MB | 130.8 MB |
| Events in quadrant A | 3,370,168 | 939,086 |
| Events in quadrant B | 3,529,592 | 938,053 |
| Events in quadrant C | 3,378,777 | 892,780 |
| Events in quadrant D | 4,499,124 | 882,135 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14846 | 1 |
| B | 0 | 15158 | 1 |
| C | 0 | 14858 | 1 |
| D | 0 | 18127 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7230 | 80 | 1.106501% |
| B | 7231 | 117 | 1.618033% |
| C | 7231 | 98 | 1.355276% |
| D | 7231 | 147 | 2.032914% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

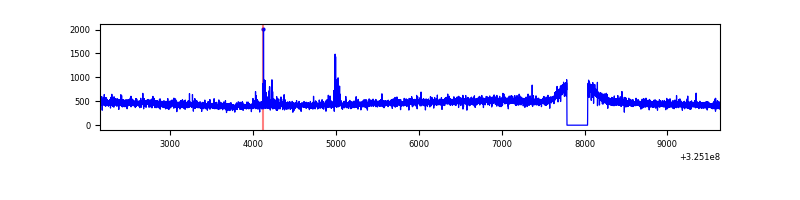

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 7231 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7481 | 7232 | 8 | 8 | 0.11% | 0.11% |  |
| C | 7481 | 7232 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7481 | 7232 | 66 | 66 | 0.88% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 36390 | 206.25 | 864 | 845 | 172.3 |
| A | 13 | 254 | 12506 | 67.66 | 864 | 845 | 172.3 |
| A | 3 | 137 | 7894 | 40.9 | 864 | 845 | 172.3 |
| B | 7 | 205 | 68569 | 416.87 | 855 | 833 | 162.5 |
| B | 7 | 202 | 38194 | 229.93 | 855 | 833 | 162.5 |
| B | 0 | 190 | 29929 | 179.06 | 855 | 833 | 162.5 |
| C | 14 | 238 | 130834 | 686.59 | 816 | 821 | 189.4 |
| C | 5 | 112 | 18300 | 92.31 | 816 | 821 | 189.4 |
| C | 10 | 91 | 12888 | 63.72 | 816 | 821 | 189.4 |
| D | 1 | 52 | 1252720 | 6217.21 | 830 | 806 | 201.4 |
| D | 8 | 195 | 56233 | 275.26 | 830 | 806 | 201.4 |
| D | 2 | 234 | 29971 | 144.84 | 830 | 806 | 201.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

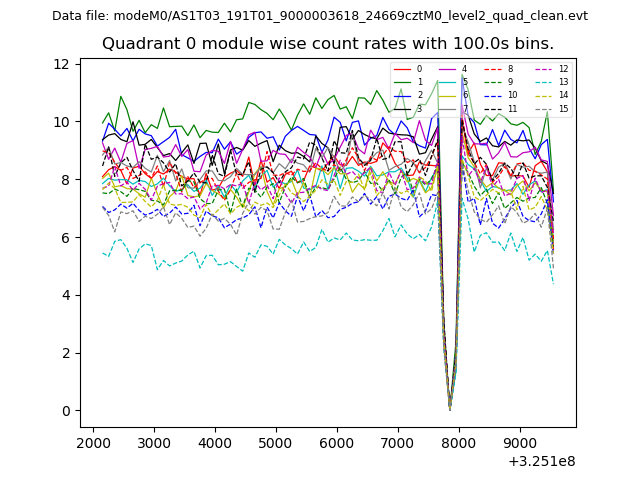

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

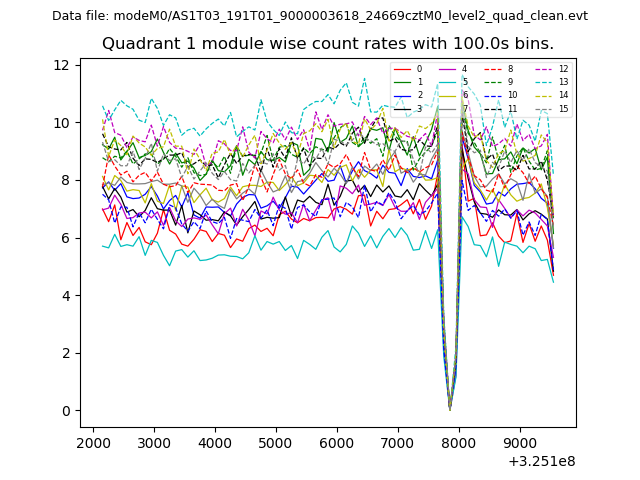

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

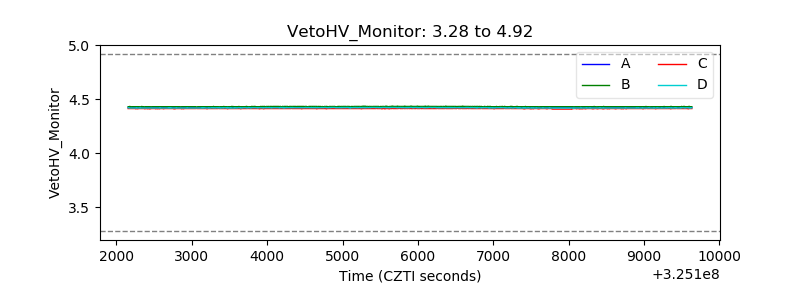

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

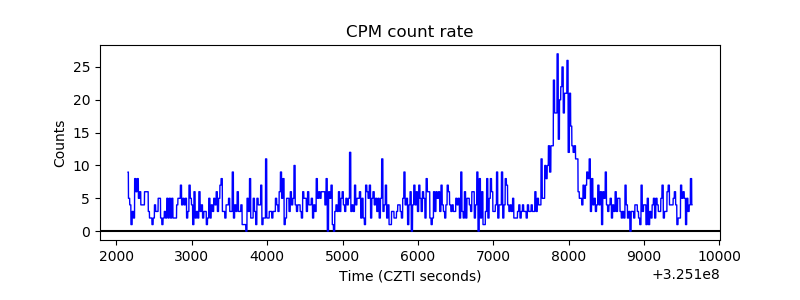

| _CPM_Rate |  |

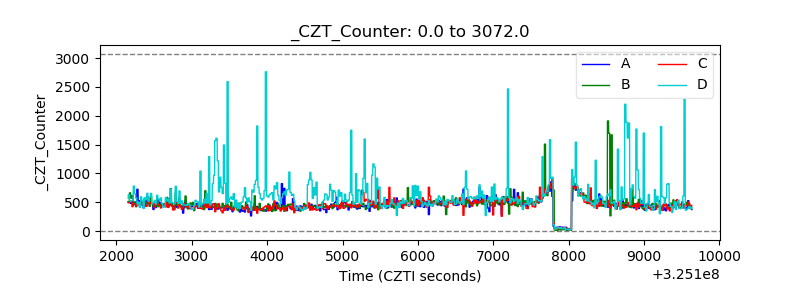

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

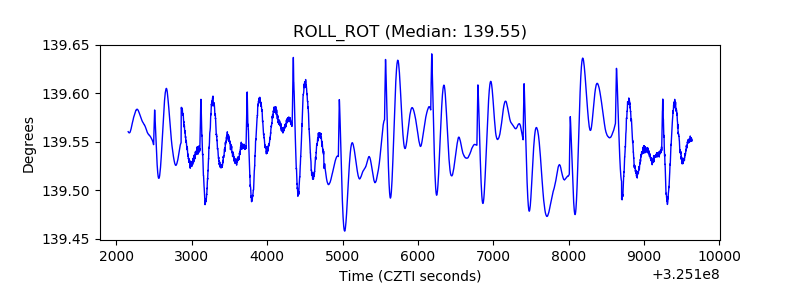

| _ROLL_ROT |  |
| _Roll_DEC |  |

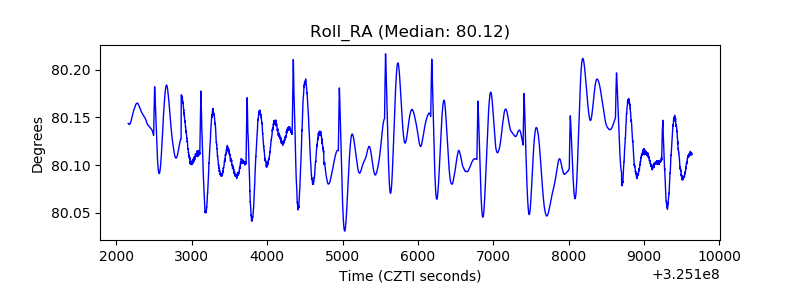

| _Roll_RA |  |
| Veto Counter |  |
