| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_191T01_9000003618_24681cztM0_level2.evt | modeM0/AS1T03_191T01_9000003618_24681cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,136,320 | 117,999,360 |
| Size | 389.2 MB | 112.5 MB |
| Events in quadrant A | 2,802,612 | 821,796 |
| Events in quadrant B | 2,865,747 | 815,787 |
| Events in quadrant C | 2,719,135 | 770,362 |
| Events in quadrant D | 3,585,632 | 767,746 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11840 | 1 |
| B | 0 | 12047 | 1 |
| C | 0 | 11783 | 1 |
| D | 0 | 14381 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5695 | 69 | 1.211589% |
| B | 5696 | 84 | 1.474719% |
| C | 5696 | 63 | 1.106039% |
| D | 5696 | 121 | 2.124298% |

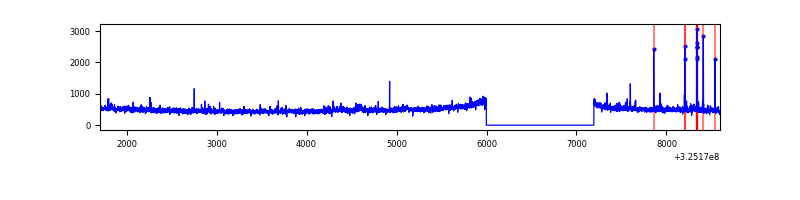

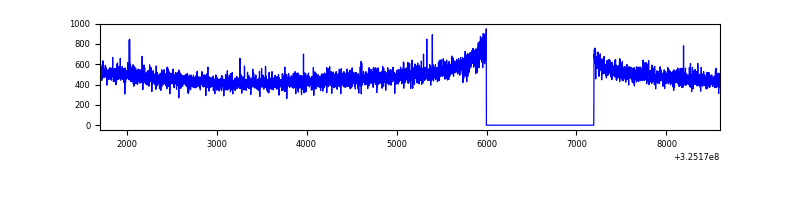

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6890 | 5695 | 4 | 4 | 0.06% | 0.07% |  |
| B | 6891 | 5696 | 12 | 12 | 0.17% | 0.21% |  |
| C | 6891 | 5697 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6891 | 5697 | 69 | 69 | 1.00% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 16520 | 110.36 | 717 | 704 | 143.3 |
| A | 12 | 96 | 10502 | 68.37 | 717 | 704 | 143.3 |
| A | 13 | 254 | 9417 | 60.8 | 717 | 704 | 143.3 |
| B | 4 | 80 | 43859 | 327.4 | 701 | 685 | 131.9 |
| B | 7 | 202 | 37962 | 282.68 | 701 | 685 | 131.9 |
| B | 0 | 189 | 16011 | 116.22 | 701 | 685 | 131.9 |
| C | 14 | 238 | 109093 | 711.35 | 666 | 669 | 152.4 |
| C | 3 | 233 | 6072 | 35.45 | 666 | 669 | 152.4 |
| C | 7 | 247 | 5948 | 34.63 | 666 | 669 | 152.4 |
| D | 1 | 52 | 777624 | 4692.83 | 685 | 665 | 165.6 |
| D | 8 | 195 | 138859 | 834.69 | 685 | 665 | 165.6 |
| D | 7 | 238 | 63827 | 381.5 | 685 | 665 | 165.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

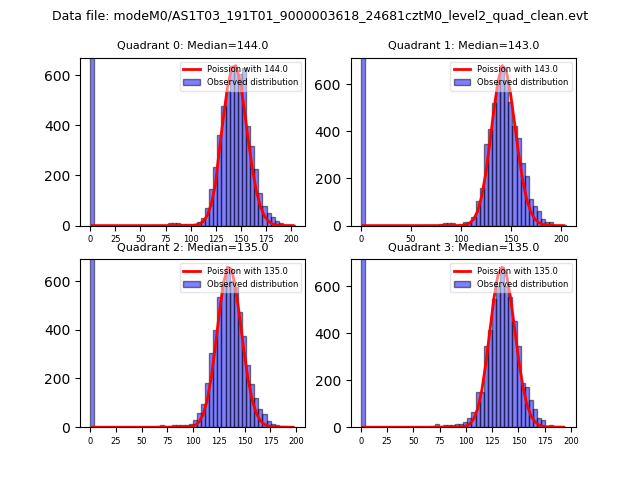

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

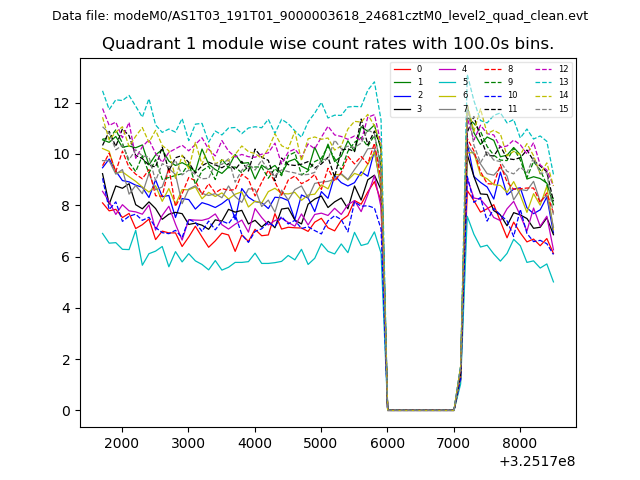

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

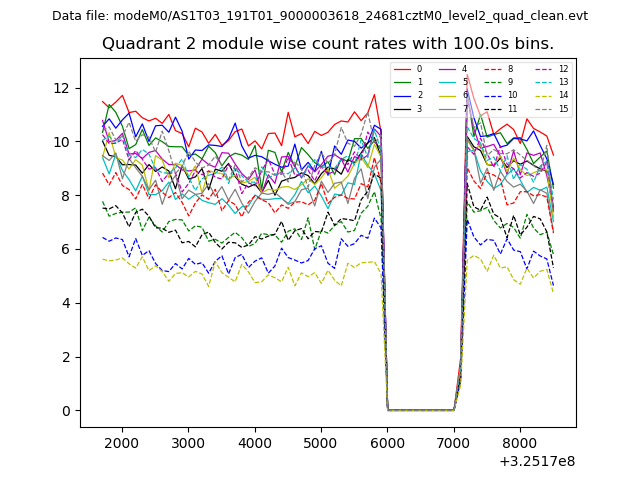

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

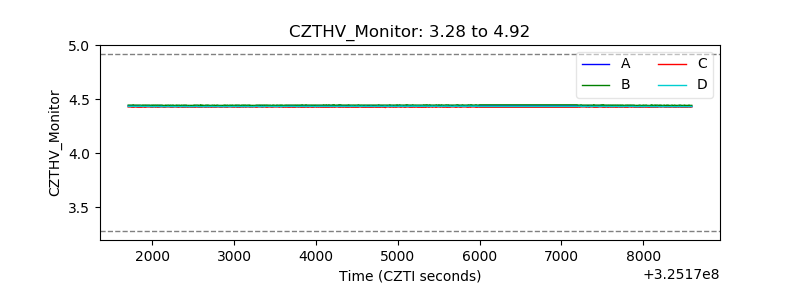

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

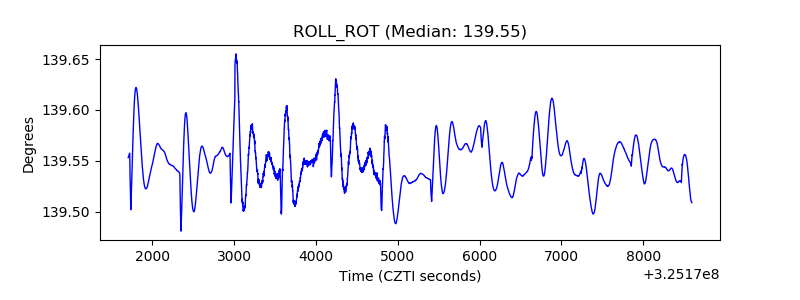

| _ROLL_ROT |  |

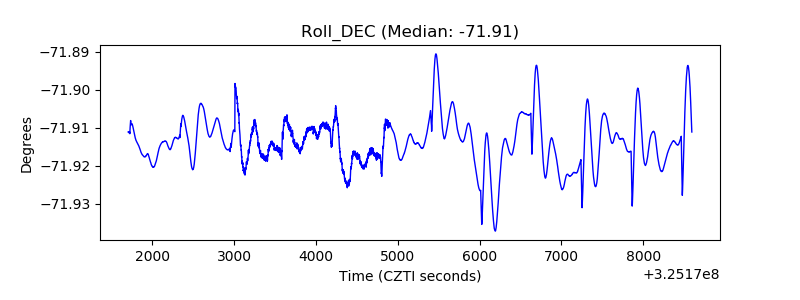

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
