| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_191T01_9000003618_24683cztM0_level2.evt | modeM0/AS1T03_191T01_9000003618_24683cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,580,480 | 127,644,480 |
| Size | 577.5 MB | 121.7 MB |
| Events in quadrant A | 3,128,820 | 885,617 |
| Events in quadrant B | 3,310,910 | 889,939 |
| Events in quadrant C | 3,117,830 | 845,175 |
| Events in quadrant D | 8,324,677 | 773,881 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13812 | 0 |
| B | 0 | 14256 | 0 |
| C | 0 | 13789 | 0 |
| D | 0 | 29343 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6760 | 47 | 0.695266% |
| B | 6760 | 82 | 1.213018% |
| C | 6760 | 47 | 0.695266% |
| D | 6760 | 1411 | 20.872781% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

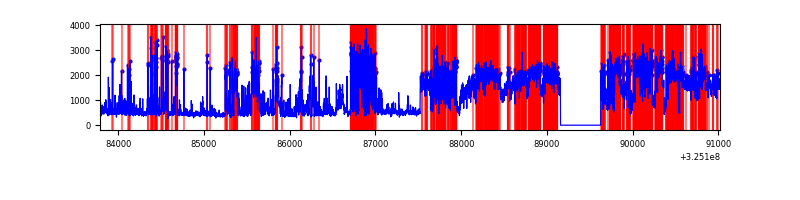

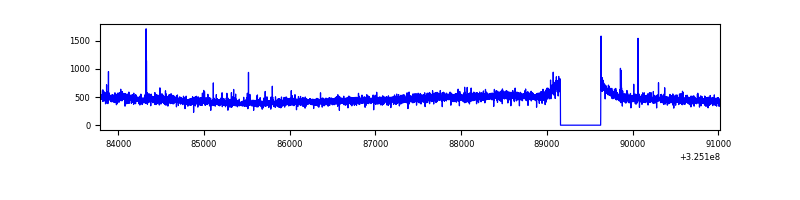

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 6761 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7230 | 6761 | 18 | 18 | 0.25% | 0.27% |  |
| C | 7230 | 6761 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7230 | 6760 | 1276 | 1276 | 17.65% | 18.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 13195 | 76.54 | 804 | 788 | 162.1 |
| A | 13 | 254 | 10485 | 59.82 | 804 | 788 | 162.1 |
| A | 12 | 96 | 9494 | 53.71 | 804 | 788 | 162.1 |
| B | 4 | 80 | 129748 | 846.55 | 797 | 776 | 152.4 |
| B | 7 | 202 | 24547 | 156.03 | 797 | 776 | 152.4 |
| B | 0 | 189 | 20159 | 127.23 | 797 | 776 | 152.4 |
| C | 14 | 238 | 124155 | 691.37 | 762 | 766 | 178.5 |
| C | 6 | 96 | 14435 | 76.59 | 762 | 766 | 178.5 |
| C | 10 | 91 | 5545 | 26.78 | 762 | 766 | 178.5 |
| D | 1 | 52 | 4745744 | 26712.96 | 736 | 715 | 177.6 |
| D | 7 | 238 | 679979 | 3824.03 | 736 | 715 | 177.6 |
| D | 8 | 195 | 81826 | 456.63 | 736 | 715 | 177.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

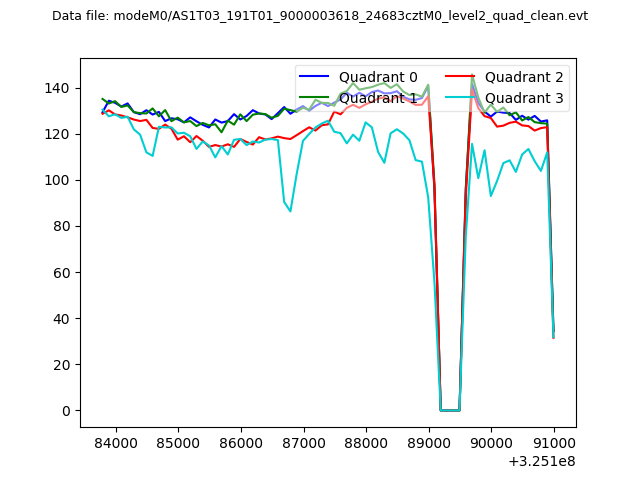

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

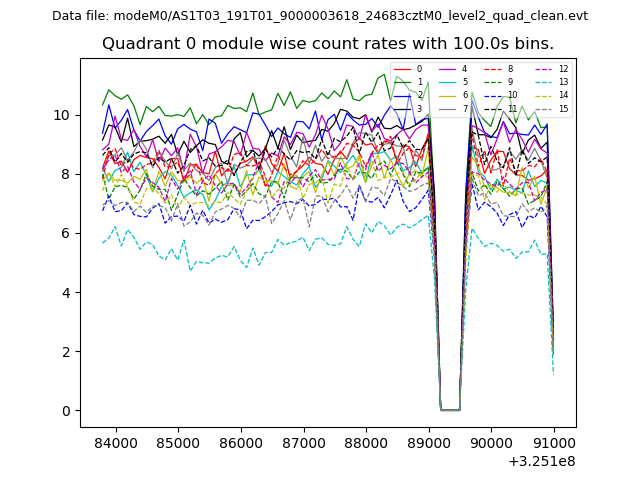

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

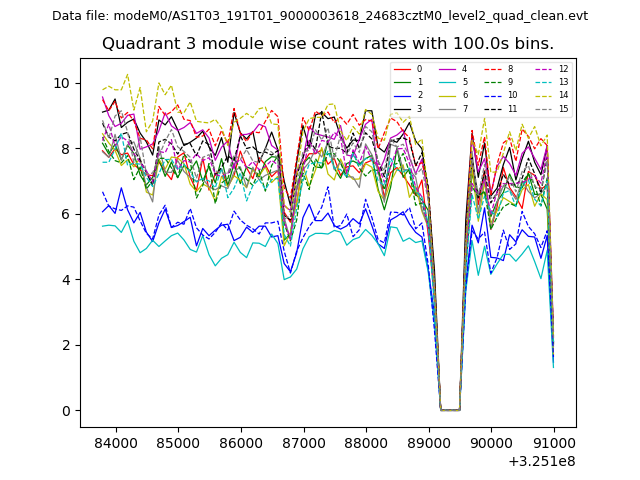

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

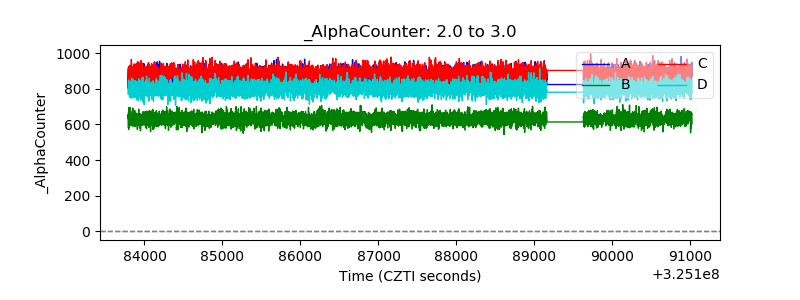

| Alpha Counter |  |

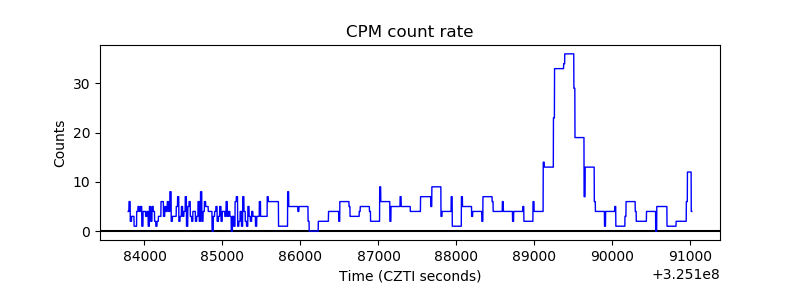

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

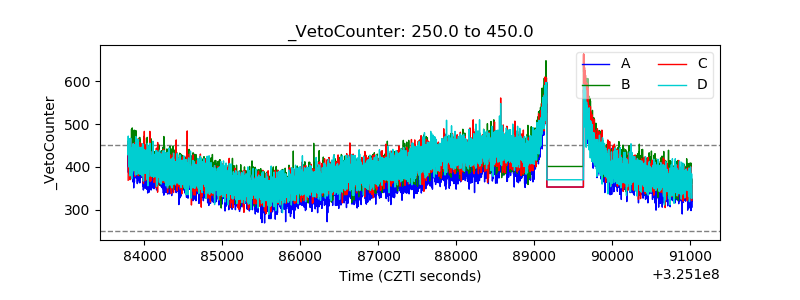

| Veto Counter |  |
