| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_191T01_9000003618_24705cztM0_level2.evt | modeM0/AS1T03_191T01_9000003618_24705cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,147,840 | 119,064,960 |
| Size | 397.8 MB | 113.5 MB |
| Events in quadrant A | 2,828,982 | 815,280 |
| Events in quadrant B | 2,902,124 | 823,024 |
| Events in quadrant C | 3,046,463 | 786,229 |
| Events in quadrant D | 3,456,255 | 771,169 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12176 | 1 |
| B | 0 | 12386 | 1 |
| C | 0 | 12824 | 3 |
| D | 0 | 14085 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5880 | 18 | 0.306122% |
| B | 5881 | 29 | 0.493113% |
| C | 5880 | 63 | 1.071429% |
| D | 5880 | 126 | 2.142857% |

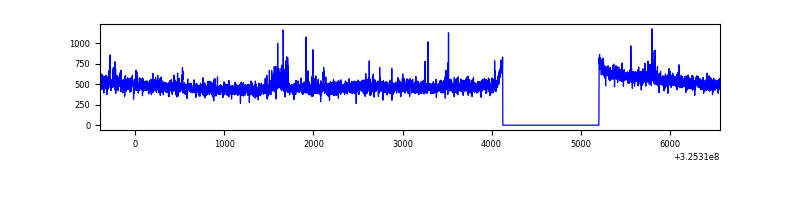

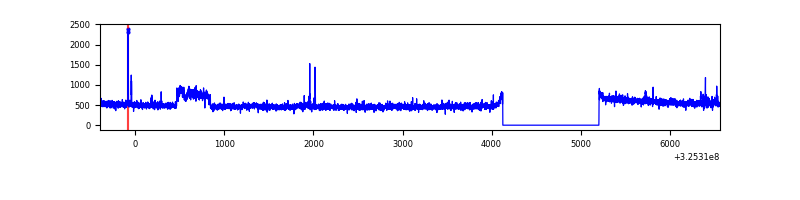

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6960 | 5880 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6961 | 5881 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6960 | 5880 | 2 | 2 | 0.03% | 0.03% |  |
| D | 6960 | 5880 | 69 | 69 | 0.99% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9835 | 62.65 | 732 | 718 | 145.5 |
| A | 3 | 137 | 6417 | 39.17 | 732 | 718 | 145.5 |
| A | 0 | 226 | 6416 | 39.16 | 732 | 718 | 145.5 |
| B | 0 | 230 | 24855 | 177.03 | 725 | 710 | 136.4 |
| B | 0 | 189 | 18488 | 130.35 | 725 | 710 | 136.4 |
| B | 12 | 111 | 16310 | 114.38 | 725 | 710 | 136.4 |
| C | 7 | 247 | 147653 | 903.72 | 703 | 707 | 162.6 |
| C | 14 | 238 | 113016 | 690.7 | 703 | 707 | 162.6 |
| C | 2 | 16 | 31509 | 189.43 | 703 | 707 | 162.6 |
| D | 1 | 52 | 369684 | 2168.62 | 713 | 692 | 170.2 |
| D | 12 | 233 | 208224 | 1219.69 | 713 | 692 | 170.2 |
| D | 8 | 195 | 154878 | 906.17 | 713 | 692 | 170.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

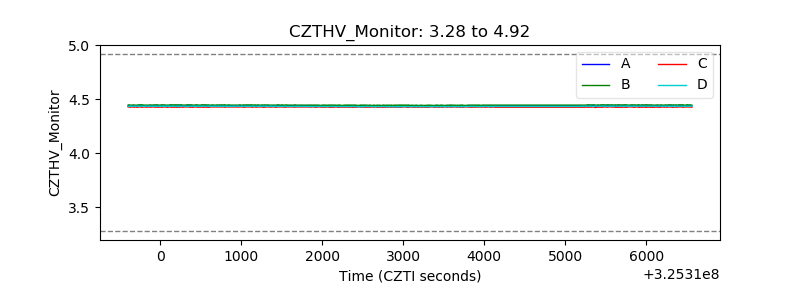

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

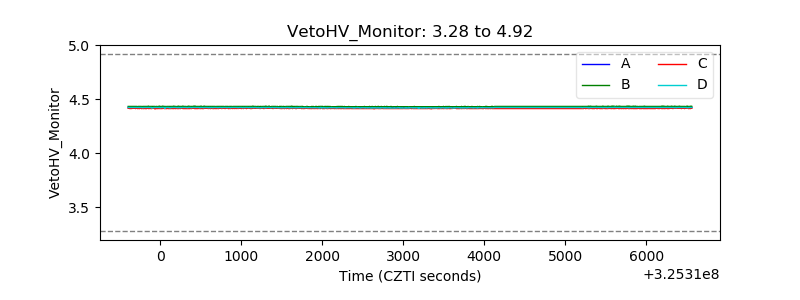

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

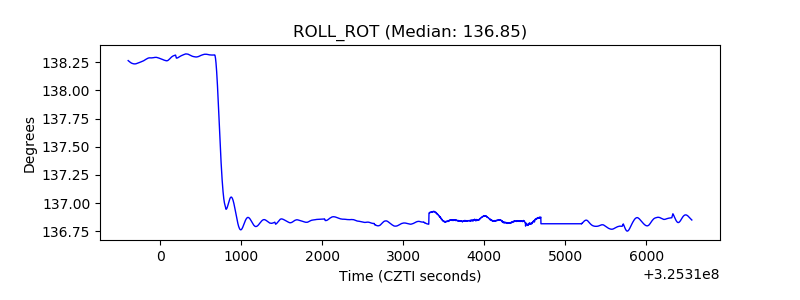

| _ROLL_ROT |  |
| _Roll_DEC |  |

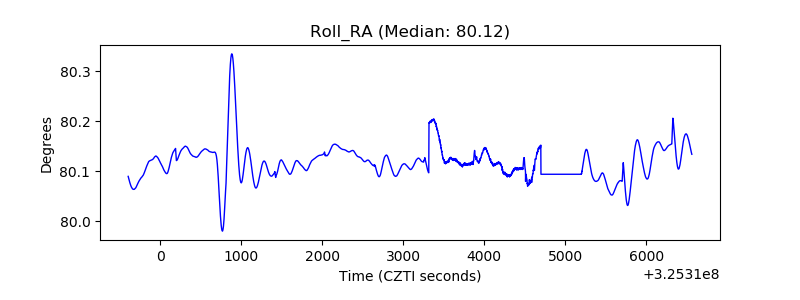

| _Roll_RA |  |

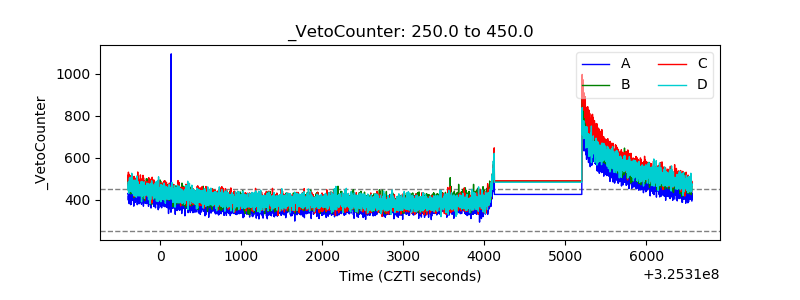

| Veto Counter |  |
