| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_191T01_9000003618_24706cztM0_level2.evt | modeM0/AS1T03_191T01_9000003618_24706cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,116,160 | 138,366,720 |
| Size | 483.6 MB | 132.0 MB |
| Events in quadrant A | 3,256,767 | 957,929 |
| Events in quadrant B | 3,289,619 | 968,822 |
| Events in quadrant C | 3,718,523 | 922,459 |
| Events in quadrant D | 4,661,137 | 897,378 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13797 | 2 |
| B | 0 | 13892 | 2 |
| C | 0 | 15205 | 2 |
| D | 0 | 18147 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6365 | 53 | 0.832679% |
| B | 6366 | 72 | 1.131008% |
| C | 6366 | 147 | 2.309142% |
| D | 6366 | 297 | 4.665410% |

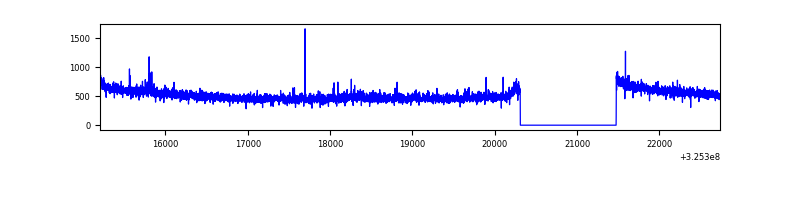

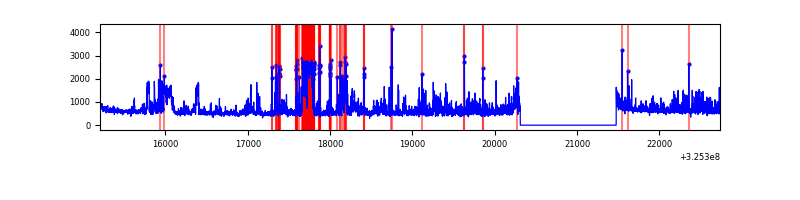

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6365 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7531 | 6366 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7531 | 6366 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7531 | 6366 | 178 | 178 | 2.36% | 2.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11320 | 62.82 | 843 | 827 | 167.0 |
| A | 0 | 226 | 7206 | 38.19 | 843 | 827 | 167.0 |
| A | 3 | 137 | 6931 | 36.55 | 843 | 827 | 167.0 |
| B | 0 | 189 | 26862 | 169.27 | 830 | 811 | 153.9 |
| B | 12 | 111 | 17980 | 111.56 | 830 | 811 | 153.9 |
| B | 11 | 111 | 16366 | 101.07 | 830 | 811 | 153.9 |
| C | 7 | 247 | 321590 | 1731.57 | 809 | 817 | 185.2 |
| C | 14 | 238 | 131193 | 703.78 | 809 | 817 | 185.2 |
| C | 6 | 96 | 54153 | 287.91 | 809 | 817 | 185.2 |
| D | 1 | 52 | 808894 | 4172.69 | 813 | 789 | 193.7 |
| D | 12 | 233 | 555710 | 2865.36 | 813 | 789 | 193.7 |
| D | 8 | 195 | 166228 | 854.25 | 813 | 789 | 193.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

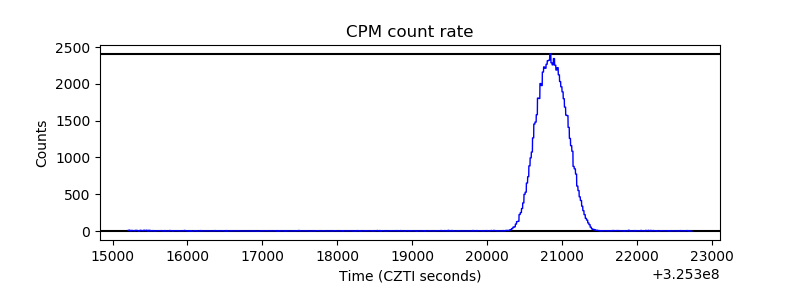

| _CPM_Rate |  |

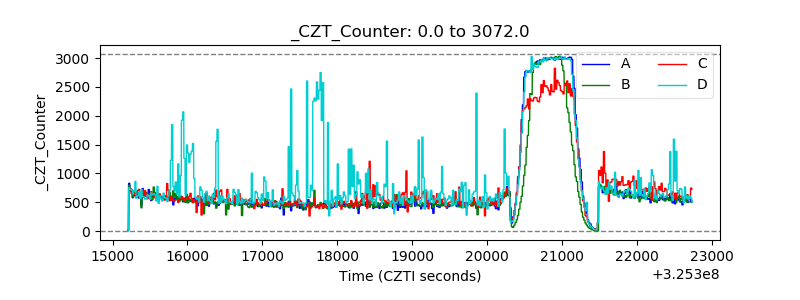

| CZT Counter |  |

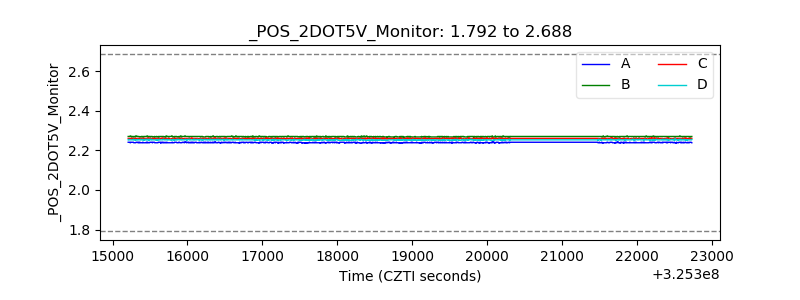

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

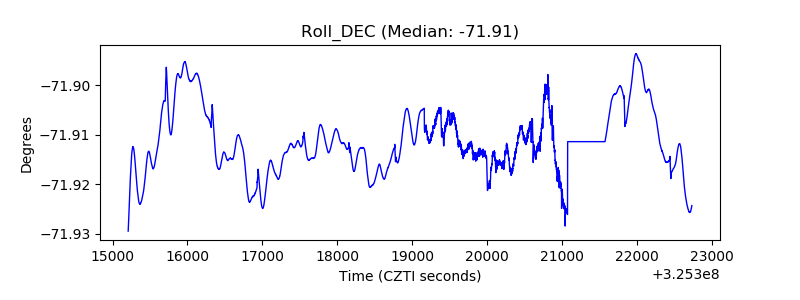

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
