| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_194T01_9000003620_24723cztM0_level2.evt | modeM0/AS1T03_194T01_9000003620_24723cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,090,240 | 93,075,840 |
| Size | 509.3 MB | 88.8 MB |
| Events in quadrant A | 3,660,599 | 615,824 |
| Events in quadrant B | 3,737,498 | 619,153 |
| Events in quadrant C | 4,412,698 | 568,549 |
| Events in quadrant D | 3,925,214 | 563,358 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14905 | 2 |
| B | 0 | 15169 | 2 |
| C | 0 | 18279 | 2 |
| D | 0 | 15540 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6482 | 70 | 1.079914% |
| B | 6482 | 72 | 1.110768% |
| C | 6482 | 141 | 2.175255% |
| D | 6482 | 119 | 1.835853% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7842 | 6482 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7842 | 6482 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7842 | 6482 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7842 | 6483 | 98 | 98 | 1.25% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 255 | 14336 | 71.97 | 945 | 930 | 186.3 |
| A | 13 | 254 | 9739 | 47.29 | 945 | 930 | 186.3 |
| A | 8 | 4 | 8459 | 40.42 | 945 | 930 | 186.3 |
| B | 0 | 189 | 53379 | 303.19 | 924 | 907 | 173.1 |
| B | 0 | 230 | 38985 | 220.02 | 924 | 907 | 173.1 |
| B | 3 | 64 | 34624 | 194.82 | 924 | 907 | 173.1 |
| C | 7 | 247 | 814923 | 4031.17 | 874 | 883 | 201.9 |
| C | 14 | 238 | 142184 | 699.73 | 874 | 883 | 201.9 |
| C | 3 | 233 | 24216 | 115.55 | 874 | 883 | 201.9 |
| D | 1 | 52 | 344487 | 1606.19 | 897 | 876 | 213.9 |
| D | 8 | 195 | 186943 | 869.76 | 897 | 876 | 213.9 |
| D | 2 | 234 | 21497 | 96.39 | 897 | 876 | 213.9 |

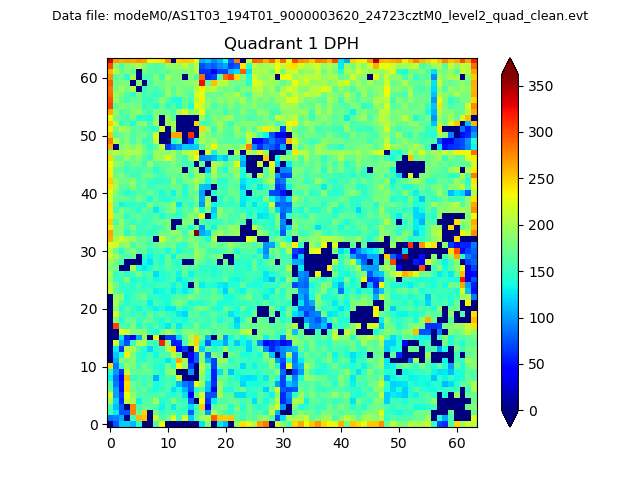

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

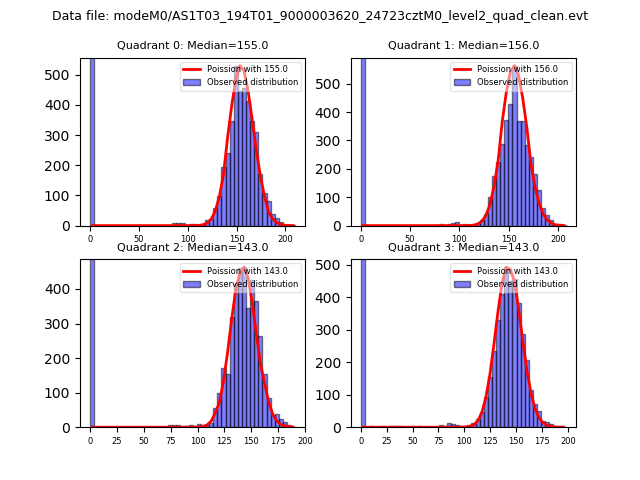

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

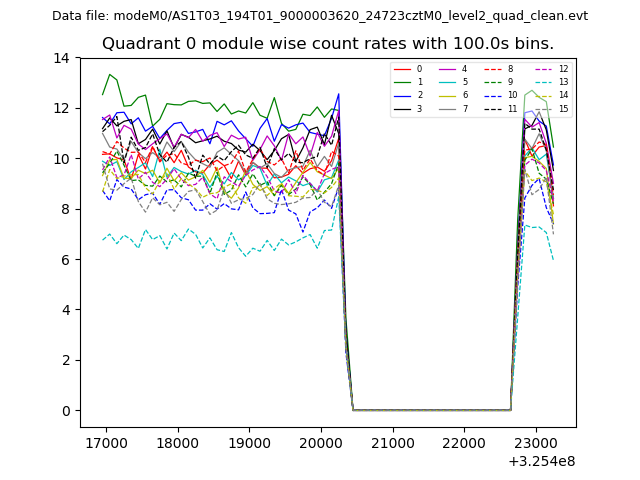

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

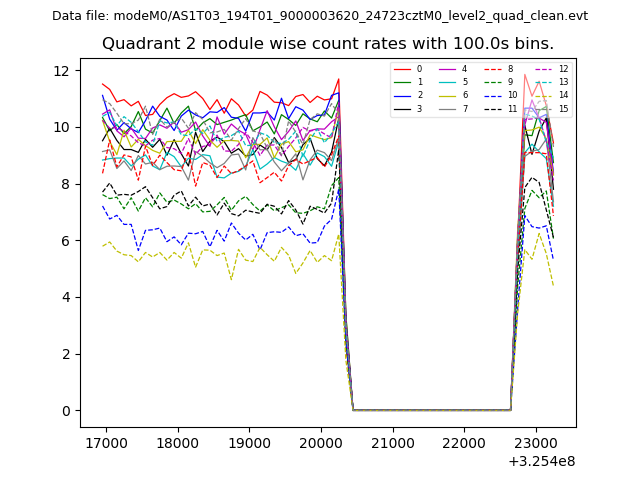

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

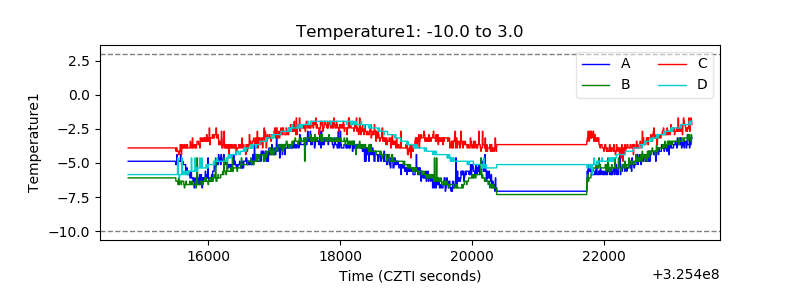

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

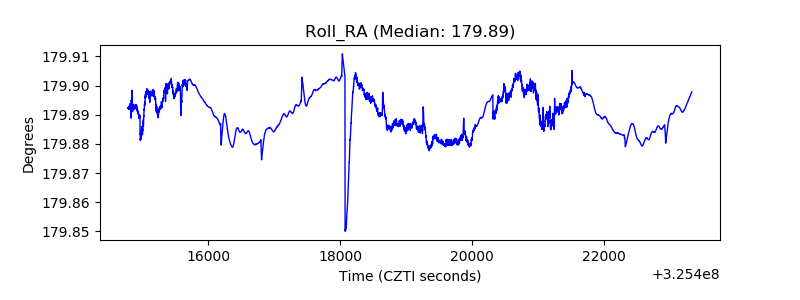

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

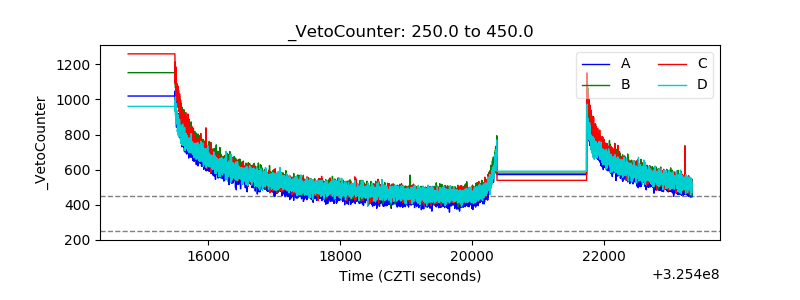

| Veto Counter |  |
