| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_194T01_9000003620_24736cztM0_level2.evt | modeM0/AS1T03_194T01_9000003620_24736cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,151,040 | 67,150,080 |
| Size | 573.3 MB | 64.0 MB |
| Events in quadrant A | 3,573,063 | 410,312 |
| Events in quadrant B | 3,672,778 | 414,105 |
| Events in quadrant C | 6,549,507 | 375,168 |
| Events in quadrant D | 3,972,719 | 381,512 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14475 | 2 |
| B | 0 | 14822 | 2 |
| C | 0 | 24093 | 2 |
| D | 0 | 15786 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6479 | 70 | 1.080414% |
| B | 6479 | 111 | 1.713227% |
| C | 6479 | 272 | 4.198179% |
| D | 6479 | 79 | 1.219324% |

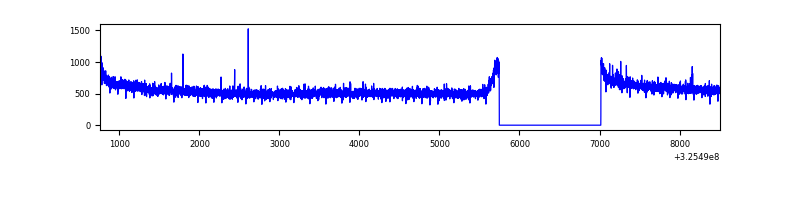

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7749 | 6479 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7749 | 6479 | 11 | 11 | 0.14% | 0.17% |  |
| C | 7749 | 6479 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7749 | 6479 | 27 | 27 | 0.35% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 255 | 11304 | 57.33 | 924 | 909 | 181.3 |
| A | 13 | 254 | 8968 | 44.45 | 924 | 909 | 181.3 |
| A | 0 | 226 | 8067 | 39.48 | 924 | 909 | 181.3 |
| B | 3 | 64 | 59969 | 346.43 | 910 | 890 | 170.5 |
| B | 6 | 36 | 46375 | 266.72 | 910 | 890 | 170.5 |
| B | 12 | 111 | 20309 | 113.87 | 910 | 890 | 170.5 |
| C | 7 | 247 | 3049684 | 15637.0 | 851 | 857 | 195.0 |
| C | 14 | 238 | 139089 | 708.97 | 851 | 857 | 195.0 |
| C | 2 | 16 | 25705 | 127.44 | 851 | 857 | 195.0 |
| D | 1 | 52 | 560689 | 2649.01 | 876 | 855 | 211.3 |
| D | 8 | 195 | 68178 | 318.56 | 876 | 855 | 211.3 |
| D | 7 | 238 | 28734 | 131.92 | 876 | 855 | 211.3 |

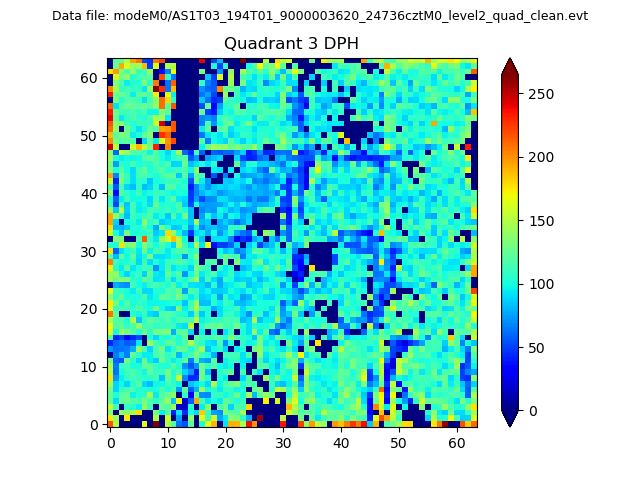

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

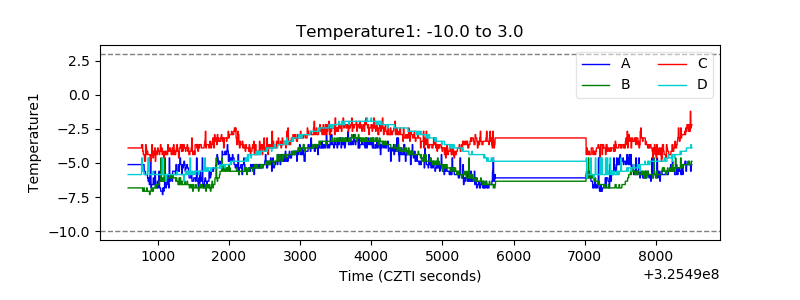

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

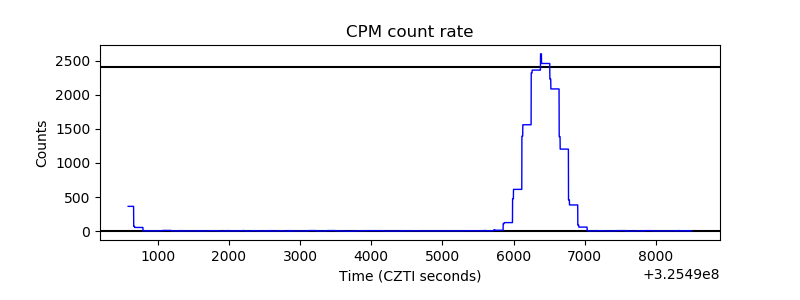

| _CPM_Rate |  |

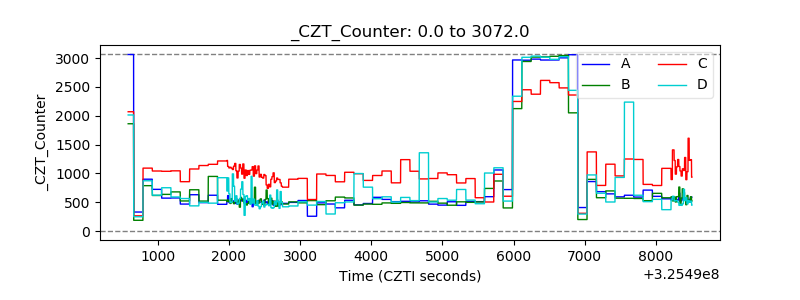

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

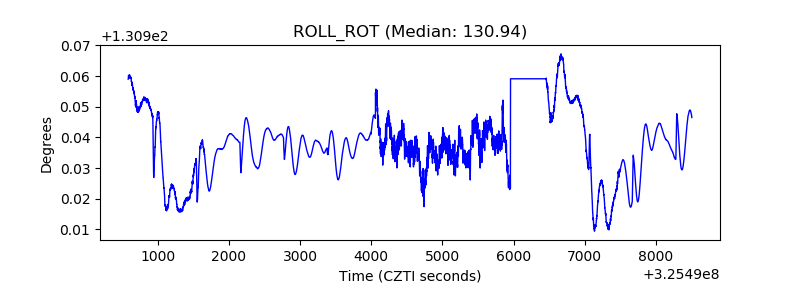

| _ROLL_ROT |  |
| _Roll_DEC |  |

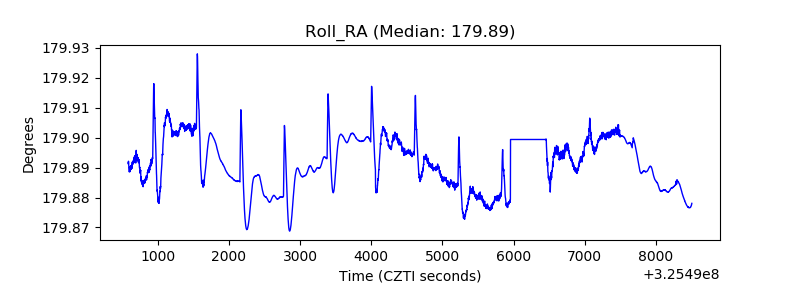

| _Roll_RA |  |

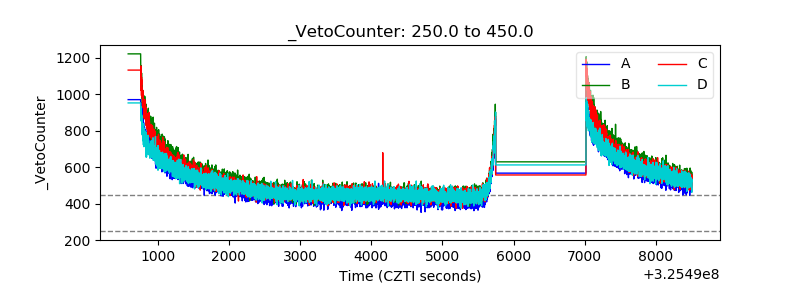

| Veto Counter |  |
