| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T08_9000003622_24741cztM0_level2.evt | modeM0/AS1A07_018T08_9000003622_24741cztM0_level2_quad_clean.evt |
| Size (bytes) | 321,782,400 | 48,646,080 |
| Size | 306.9 MB | 46.4 MB |
| Events in quadrant A | 2,045,188 | 303,671 |
| Events in quadrant B | 2,191,391 | 304,771 |
| Events in quadrant C | 2,718,799 | 287,500 |
| Events in quadrant D | 2,513,400 | 290,993 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8551 | 1 |
| B | 0 | 8956 | 1 |
| C | 0 | 10678 | 1 |
| D | 0 | 10237 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4046 | 159 | 3.929807% |
| B | 4046 | 187 | 4.621849% |
| C | 4046 | 343 | 8.477509% |
| D | 4046 | 189 | 4.671280% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4421 | 4046 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4420 | 4045 | 1 | 1 | 0.02% | 0.02% |  |
| C | 4421 | 4046 | 23 | 23 | 0.52% | 0.57% |  |
| D | 4421 | 4046 | 37 | 37 | 0.84% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6297 | 53.43 | 529 | 518 | 108.2 |
| A | 3 | 137 | 5041 | 41.82 | 529 | 518 | 108.2 |
| A | 0 | 226 | 4496 | 36.78 | 529 | 518 | 108.2 |
| B | 0 | 190 | 83745 | 812.23 | 520 | 506 | 102.5 |
| B | 0 | 189 | 16249 | 153.62 | 520 | 506 | 102.5 |
| B | 12 | 111 | 12659 | 118.59 | 520 | 506 | 102.5 |
| C | 7 | 247 | 713961 | 6079.36 | 492 | 494 | 117.4 |
| C | 14 | 238 | 75191 | 636.48 | 492 | 494 | 117.4 |
| C | 10 | 91 | 5720 | 44.53 | 492 | 494 | 117.4 |
| D | 8 | 195 | 290322 | 2311.49 | 509 | 493 | 125.4 |
| D | 1 | 52 | 208989 | 1662.83 | 509 | 493 | 125.4 |
| D | 10 | 199 | 28511 | 223.45 | 509 | 493 | 125.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

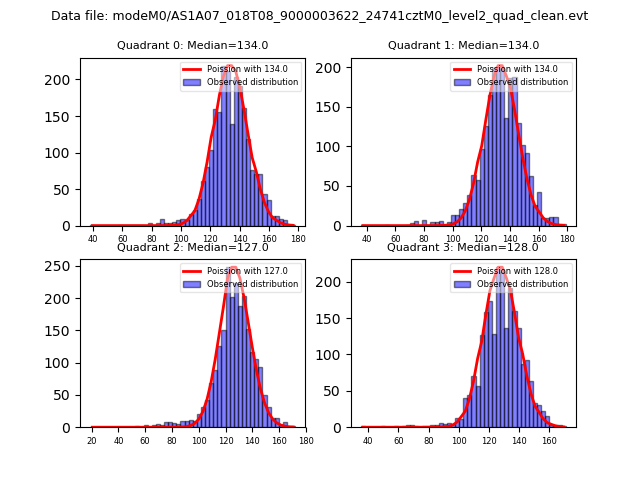

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

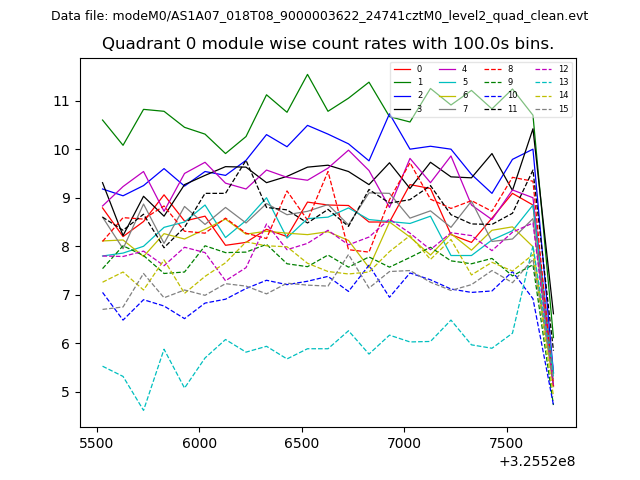

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

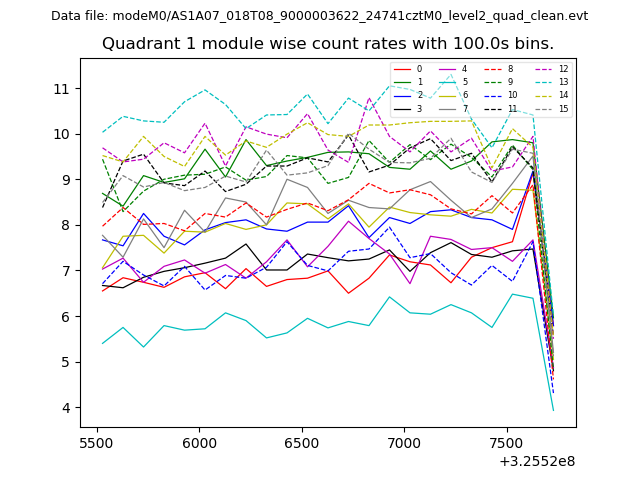

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

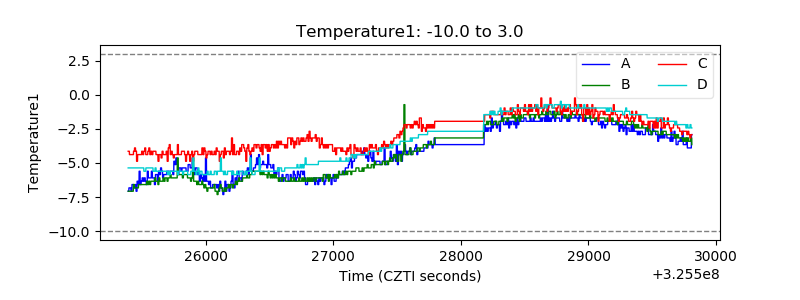

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

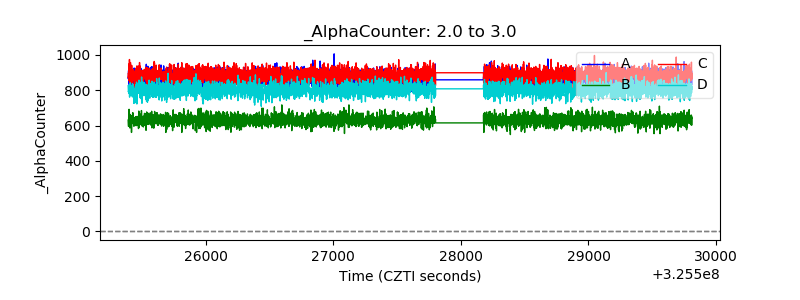

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

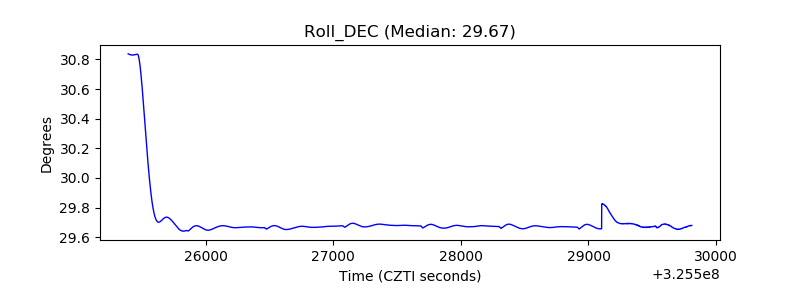

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
