| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T08_9000003622_24755cztM0_level2.evt | modeM0/AS1A07_018T08_9000003622_24755cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,095,360 | 75,142,080 |
| Size | 476.0 MB | 71.7 MB |
| Events in quadrant A | 3,352,473 | 458,082 |
| Events in quadrant B | 3,487,770 | 460,603 |
| Events in quadrant C | 3,907,037 | 440,588 |
| Events in quadrant D | 3,897,746 | 433,694 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14161 | 1 |
| B | 0 | 14590 | 1 |
| C | 0 | 15923 | 1 |
| D | 0 | 15947 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6923 | 79 | 1.141124% |
| B | 6924 | 82 | 1.184287% |
| C | 6924 | 174 | 2.512998% |
| D | 6924 | 164 | 2.368573% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

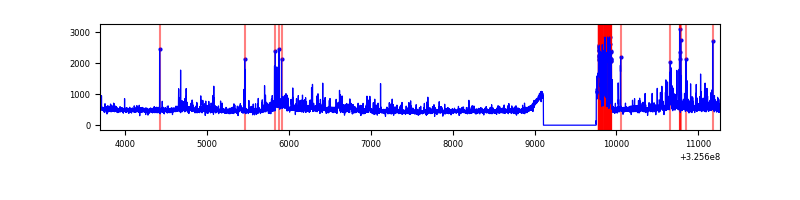

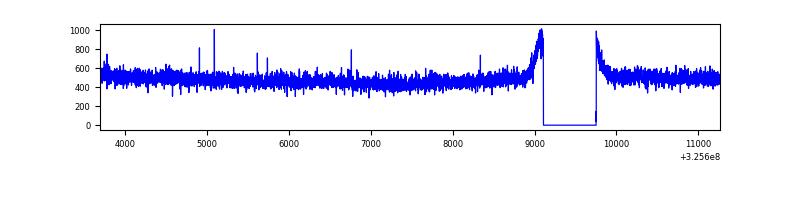

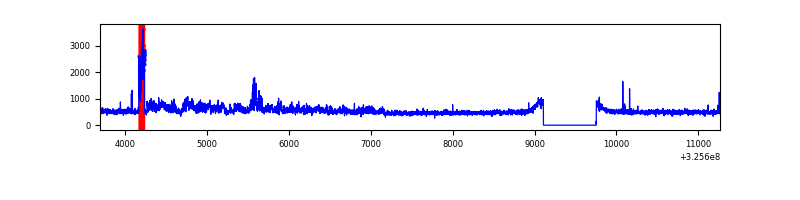

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7568 | 6924 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7569 | 6925 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7569 | 6925 | 45 | 45 | 0.59% | 0.65% |  |
| D | 7569 | 6925 | 78 | 78 | 1.03% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11987 | 63.18 | 869 | 850 | 176.3 |
| A | 3 | 137 | 8029 | 40.73 | 869 | 850 | 176.3 |
| A | 0 | 226 | 7239 | 36.25 | 869 | 850 | 176.3 |
| B | 0 | 189 | 60758 | 361.46 | 856 | 834 | 165.8 |
| B | 0 | 190 | 33892 | 199.4 | 856 | 834 | 165.8 |
| B | 3 | 64 | 25993 | 151.76 | 856 | 834 | 165.8 |
| C | 7 | 247 | 375077 | 1951.08 | 819 | 824 | 191.8 |
| C | 2 | 16 | 209948 | 1090.22 | 819 | 824 | 191.8 |
| C | 14 | 238 | 131002 | 678.65 | 819 | 824 | 191.8 |
| D | 8 | 195 | 238187 | 1168.59 | 834 | 807 | 203.1 |
| D | 10 | 70 | 227651 | 1116.72 | 834 | 807 | 203.1 |
| D | 1 | 52 | 142646 | 698.26 | 834 | 807 | 203.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

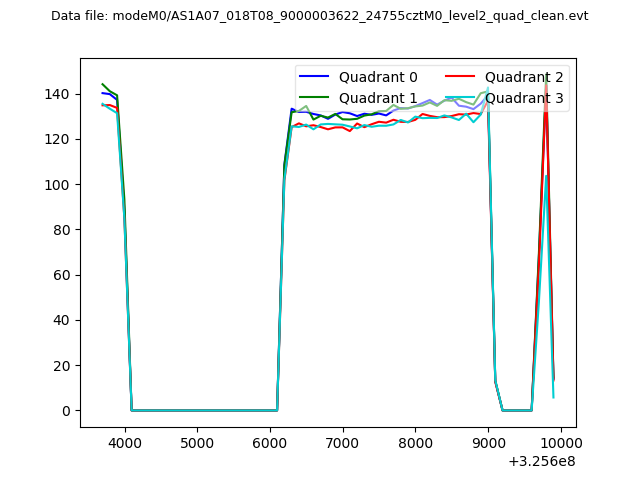

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

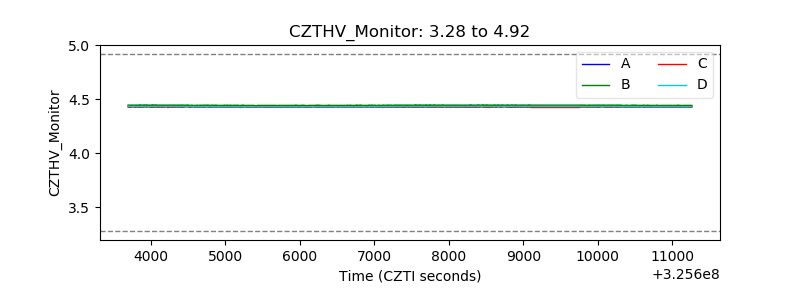

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

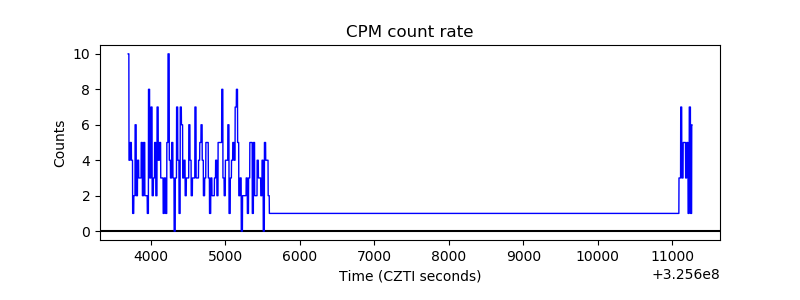

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

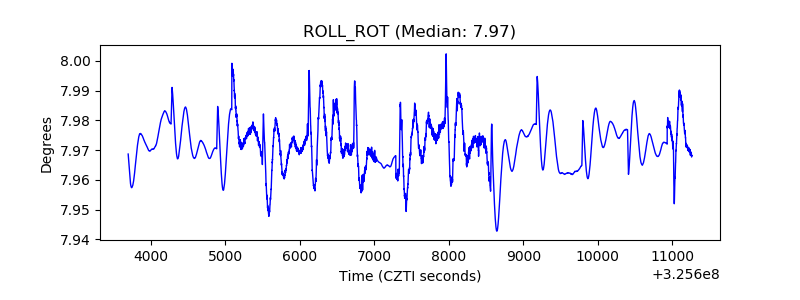

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
