| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003624_24774cztM0_level2.evt | modeM0/AS1A07_147T01_9000003624_24774cztM0_level2_quad_clean.evt |
| Size (bytes) | 846,685,440 | 149,186,880 |
| Size | 807.5 MB | 142.3 MB |
| Events in quadrant A | 5,624,169 | 951,021 |
| Events in quadrant B | 7,031,640 | 937,930 |
| Events in quadrant C | 5,819,182 | 913,084 |
| Events in quadrant D | 6,365,053 | 896,786 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24534 | 3 |
| B | 0 | 28789 | 3 |
| C | 0 | 24795 | 3 |
| D | 0 | 26934 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 240 | 0 |
| B | 0 | 240 | 0 |
| C | 0 | 240 | 0 |
| D | 0 | 240 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11845 | 117 | 0.987759% |
| B | 11845 | 479 | 4.043900% |
| C | 11845 | 221 | 1.865766% |
| D | 11845 | 283 | 2.389194% |

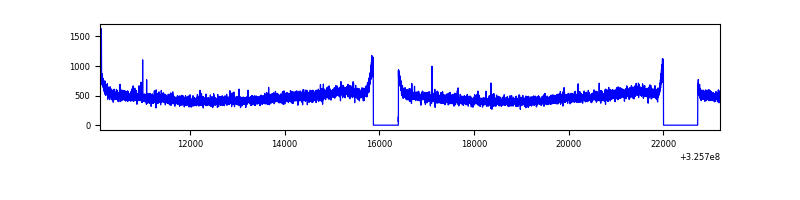

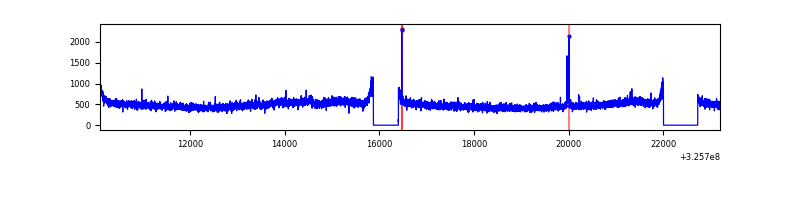

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13100 | 11847 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13100 | 11847 | 183 | 183 | 1.40% | 1.54% |  |
| C | 13100 | 11847 | 3 | 3 | 0.02% | 0.03% |  |
| D | 13100 | 11847 | 190 | 190 | 1.45% | 1.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 17592 | 55.02 | 1455 | 1424 | 293.9 |
| A | 3 | 137 | 13984 | 42.74 | 1455 | 1424 | 293.9 |
| A | 0 | 226 | 12524 | 37.77 | 1455 | 1424 | 293.9 |
| B | 3 | 64 | 1038654 | 3770.13 | 1421 | 1380 | 275.1 |
| B | 10 | 246 | 352433 | 1275.95 | 1421 | 1380 | 275.1 |
| B | 0 | 230 | 40908 | 143.67 | 1421 | 1380 | 275.1 |
| C | 14 | 238 | 220343 | 669.76 | 1391 | 1398 | 326.9 |
| C | 10 | 91 | 133057 | 402.75 | 1391 | 1398 | 326.9 |
| C | 2 | 16 | 35117 | 103.15 | 1391 | 1398 | 326.9 |
| D | 1 | 52 | 590746 | 1705.22 | 1408 | 1366 | 345.6 |
| D | 8 | 195 | 299624 | 862.93 | 1408 | 1366 | 345.6 |
| D | 12 | 233 | 127373 | 364.57 | 1408 | 1366 | 345.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

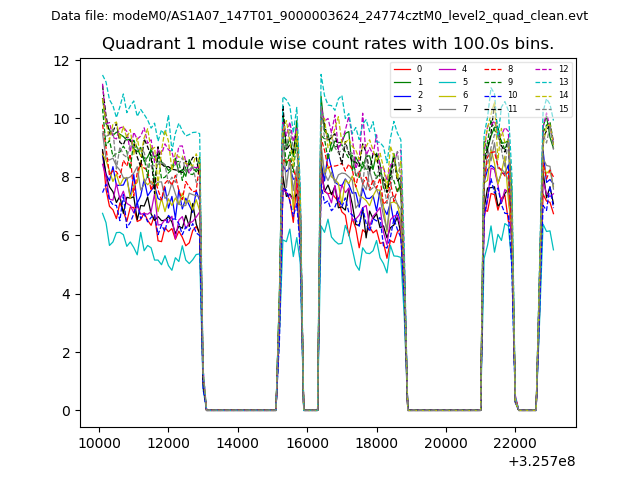

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

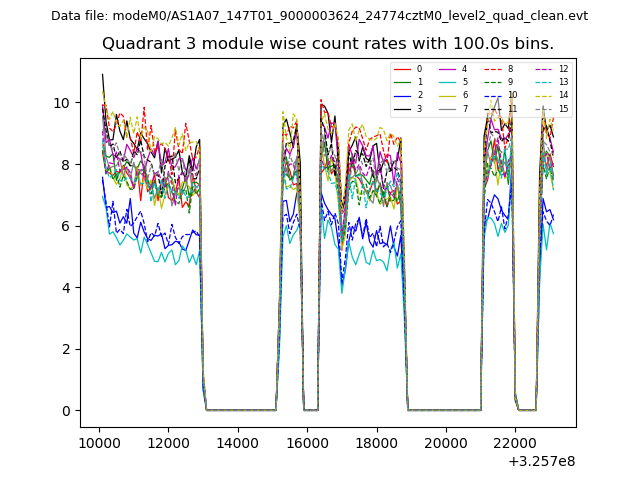

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

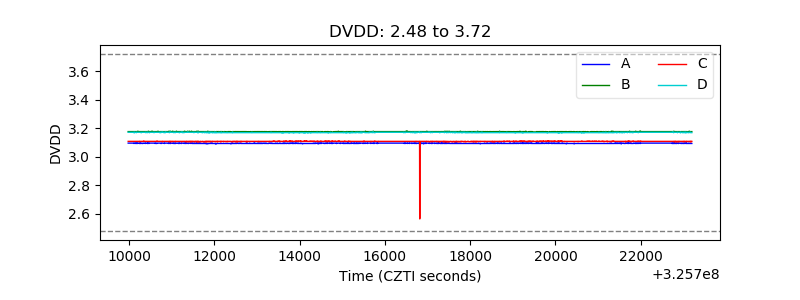

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

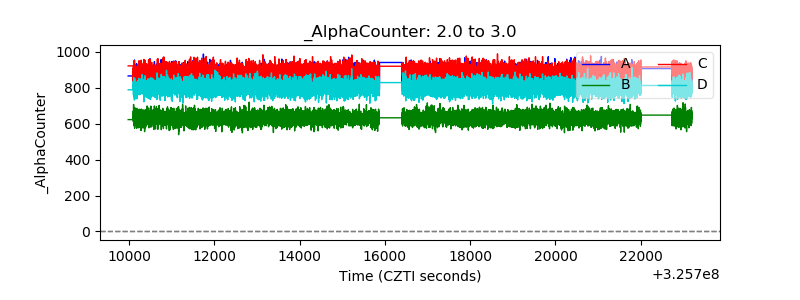

| Alpha Counter |  |

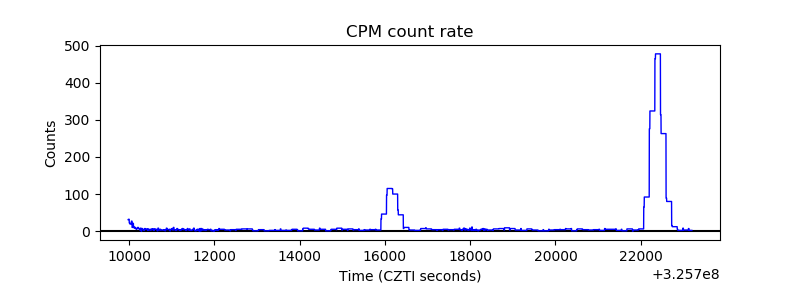

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

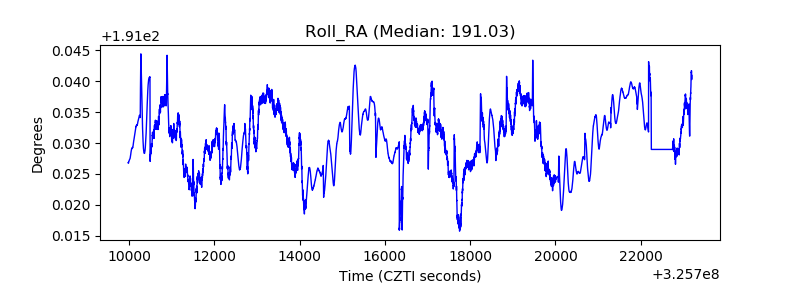

| _Roll_RA |  |
| Veto Counter |  |
