| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003624_24775cztM0_level2.evt | modeM0/AS1A07_147T01_9000003624_24775cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,905,280 | 96,727,680 |
| Size | 467.2 MB | 92.2 MB |
| Events in quadrant A | 3,286,498 | 625,517 |
| Events in quadrant B | 4,277,548 | 620,088 |
| Events in quadrant C | 3,323,062 | 602,101 |
| Events in quadrant D | 3,476,938 | 596,590 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14293 | 2 |
| B | 0 | 17061 | 2 |
| C | 0 | 14325 | 2 |
| D | 0 | 15083 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6958 | 40 | 0.574878% |
| B | 6959 | 294 | 4.224745% |
| C | 6958 | 94 | 1.350963% |
| D | 6958 | 46 | 0.661110% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8558 | 6960 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8559 | 6961 | 171 | 171 | 2.00% | 2.46% |  |
| C | 8558 | 6960 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8558 | 6960 | 12 | 12 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9972 | 53.09 | 851 | 833 | 172.2 |
| A | 3 | 137 | 8046 | 41.9 | 851 | 833 | 172.2 |
| A | 0 | 226 | 7246 | 37.25 | 851 | 833 | 172.2 |
| B | 3 | 64 | 972347 | 6003.48 | 831 | 808 | 161.8 |
| B | 12 | 111 | 20132 | 119.41 | 831 | 808 | 161.8 |
| B | 11 | 111 | 18139 | 107.09 | 831 | 808 | 161.8 |
| C | 14 | 238 | 127327 | 656.49 | 817 | 823 | 192.7 |
| C | 2 | 16 | 7529 | 34.8 | 817 | 823 | 192.7 |
| C | 13 | 61 | 5463 | 24.08 | 817 | 823 | 192.7 |
| D | 1 | 52 | 213248 | 1051.48 | 826 | 801 | 202.0 |
| D | 8 | 195 | 78310 | 383.62 | 826 | 801 | 202.0 |
| D | 2 | 234 | 26084 | 125.14 | 826 | 801 | 202.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

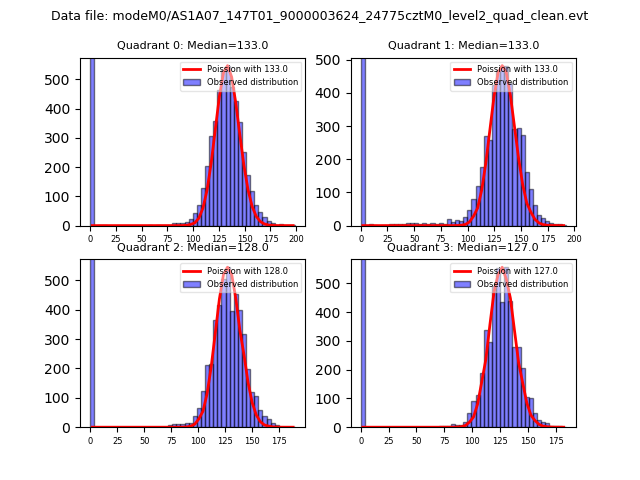

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

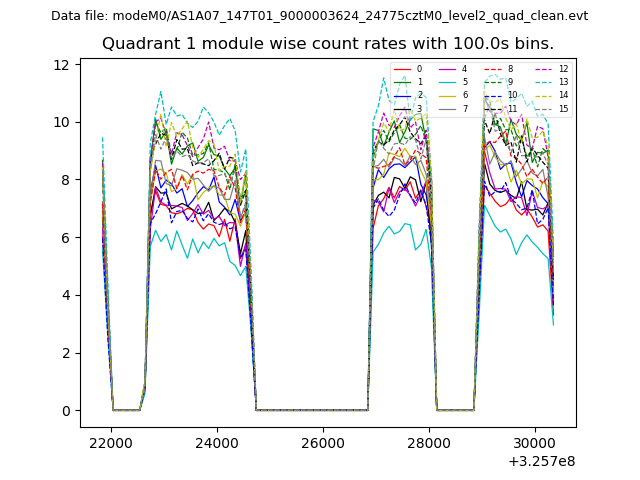

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

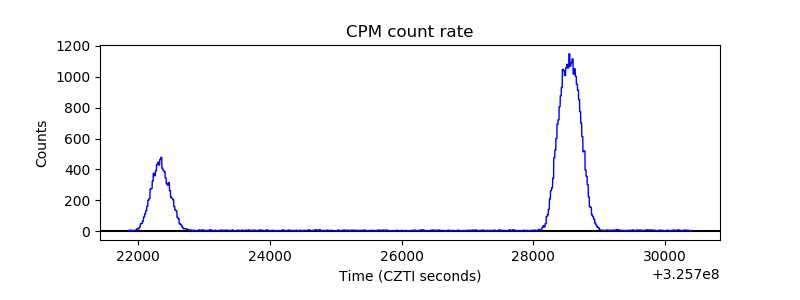

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

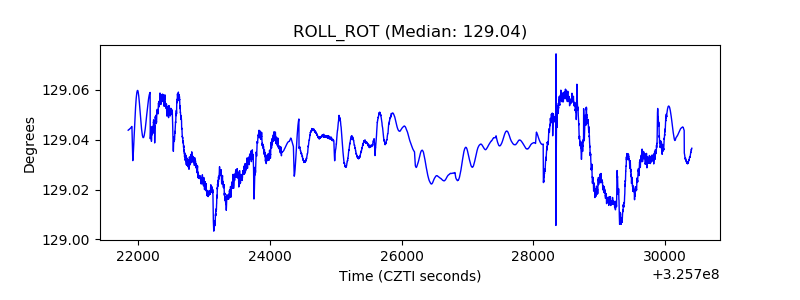

| _ROLL_ROT |  |

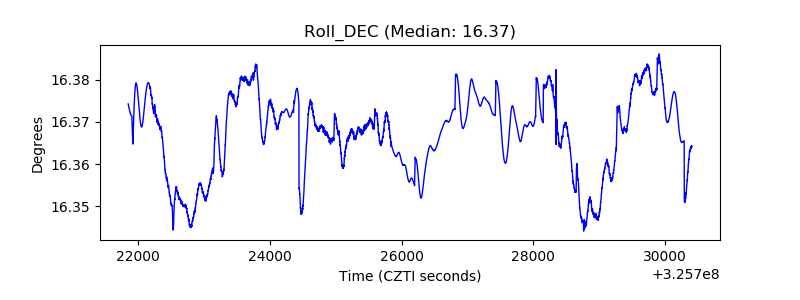

| _Roll_DEC |  |

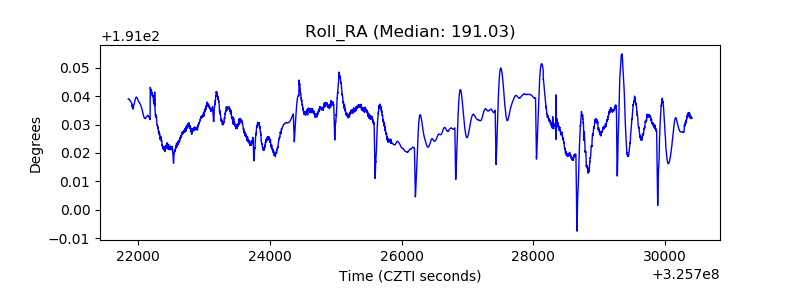

| _Roll_RA |  |

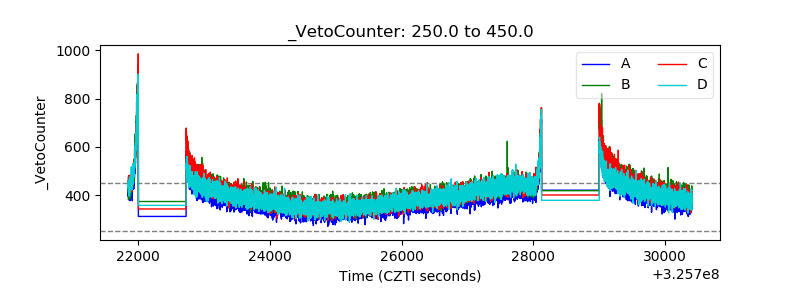

| Veto Counter |  |
