| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003624_24778cztM0_level2.evt | modeM0/AS1A07_147T01_9000003624_24778cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,024,000 | 81,043,200 |
| Size | 449.2 MB | 77.3 MB |
| Events in quadrant A | 3,175,877 | 524,168 |
| Events in quadrant B | 4,113,821 | 500,814 |
| Events in quadrant C | 3,225,887 | 497,787 |
| Events in quadrant D | 3,314,279 | 484,361 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13259 | 2 |
| B | 0 | 16073 | 2 |
| C | 0 | 13426 | 2 |
| D | 0 | 14058 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6397 | 22 | 0.343911% |
| B | 6397 | 349 | 5.455682% |
| C | 6397 | 40 | 0.625293% |
| D | 6398 | 23 | 0.359487% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7542 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7542 | 6398 | 251 | 251 | 3.33% | 3.92% |  |
| C | 7542 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7543 | 6399 | 11 | 11 | 0.15% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9171 | 50.28 | 824 | 810 | 166.3 |
| A | 3 | 137 | 7296 | 39.0 | 824 | 810 | 166.3 |
| A | 0 | 226 | 6957 | 36.97 | 824 | 810 | 166.3 |
| B | 3 | 64 | 914027 | 6045.39 | 796 | 777 | 151.1 |
| B | 4 | 52 | 34955 | 226.25 | 796 | 777 | 151.1 |
| B | 0 | 230 | 21132 | 134.74 | 796 | 777 | 151.1 |
| C | 14 | 238 | 126629 | 686.2 | 783 | 791 | 183.4 |
| C | 2 | 16 | 24266 | 128.01 | 783 | 791 | 183.4 |
| C | 10 | 91 | 19165 | 100.19 | 783 | 791 | 183.4 |
| D | 1 | 52 | 212248 | 1117.23 | 785 | 766 | 189.3 |
| D | 8 | 195 | 112585 | 590.72 | 785 | 766 | 189.3 |
| D | 12 | 233 | 26352 | 135.17 | 785 | 766 | 189.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

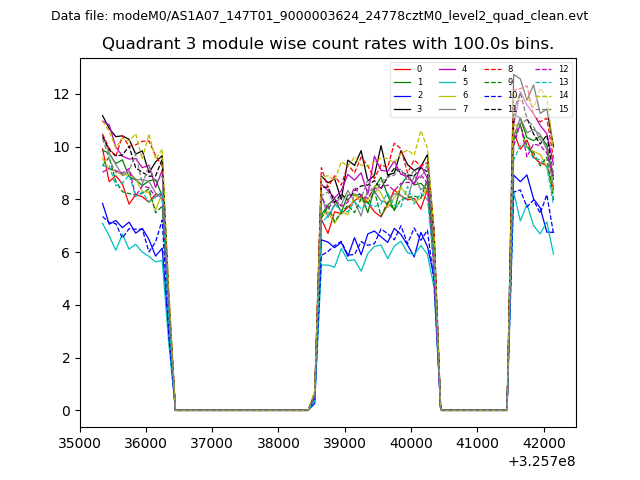

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

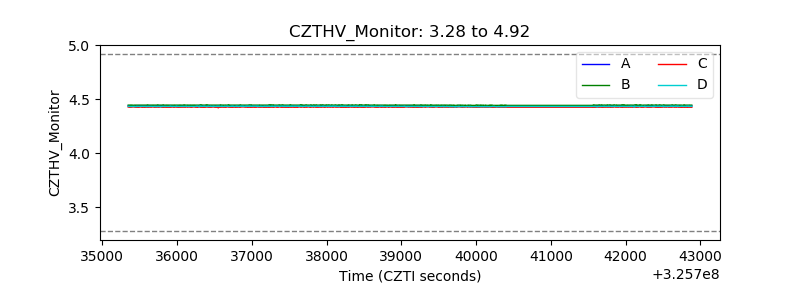

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

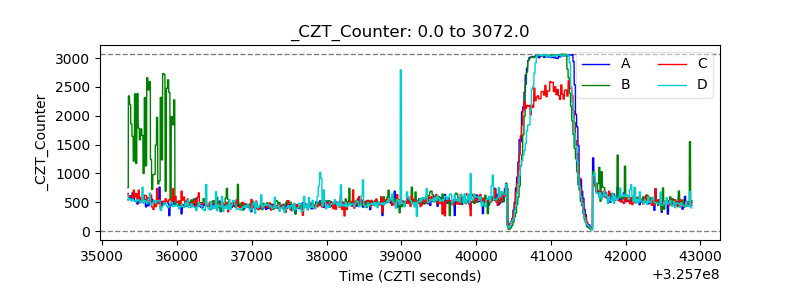

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

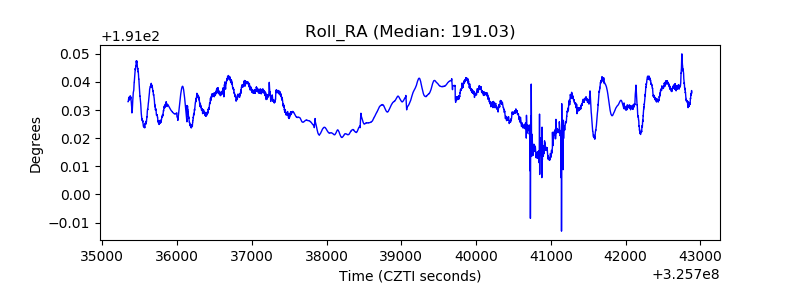

| _Roll_RA |  |
| Veto Counter |  |
