| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003624_24786cztM0_level2.evt | modeM0/AS1A07_147T01_9000003624_24786cztM0_level2_quad_clean.evt |
| Size (bytes) | 130,636,800 | 26,147,520 |
| Size | 124.6 MB | 24.9 MB |
| Events in quadrant A | 680,603 | 184,226 |
| Events in quadrant B | 1,618,531 | 151,657 |
| Events in quadrant C | 734,885 | 175,863 |
| Events in quadrant D | 823,114 | 173,771 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2857 | 0 |
| B | 0 | 5707 | 0 |
| C | 0 | 3018 | 0 |
| D | 0 | 3336 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1419 | 0 | 0.000000% |
| B | 1420 | 386 | 27.183099% |
| C | 1420 | 7 | 0.492958% |
| D | 1420 | 2 | 0.140845% |

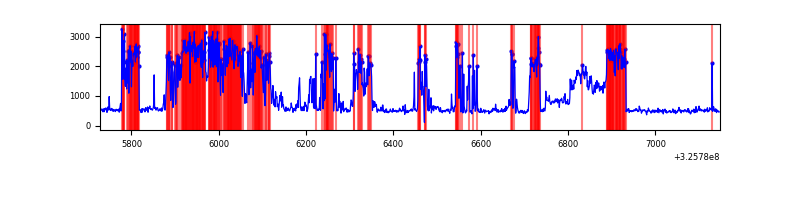

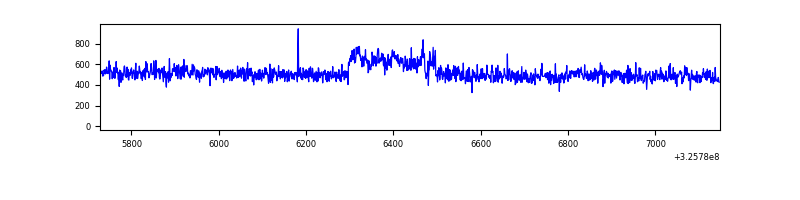

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1419 | 1419 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1420 | 1420 | 288 | 288 | 20.28% | 20.28% |  |
| C | 1420 | 1420 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1420 | 1420 | 1 | 1 | 0.07% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 1893 | 45.89 | 176 | 172 | 37.5 |
| A | 3 | 137 | 1642 | 39.2 | 176 | 172 | 37.5 |
| A | 0 | 226 | 1507 | 35.6 | 176 | 172 | 37.5 |
| B | 3 | 64 | 1049537 | 34984.74 | 143 | 140 | 30.0 |
| B | 12 | 111 | 3360 | 107.35 | 143 | 140 | 30.0 |
| B | 11 | 111 | 3065 | 97.51 | 143 | 140 | 30.0 |
| C | 8 | 208 | 27211 | 659.32 | 169 | 170 | 41.0 |
| C | 14 | 238 | 26581 | 643.96 | 169 | 170 | 41.0 |
| C | 10 | 91 | 18536 | 447.8 | 169 | 170 | 41.0 |
| D | 1 | 52 | 128648 | 2923.8 | 173 | 168 | 43.9 |
| D | 8 | 195 | 30787 | 696.79 | 173 | 168 | 43.9 |
| D | 2 | 234 | 5785 | 127.83 | 173 | 168 | 43.9 |

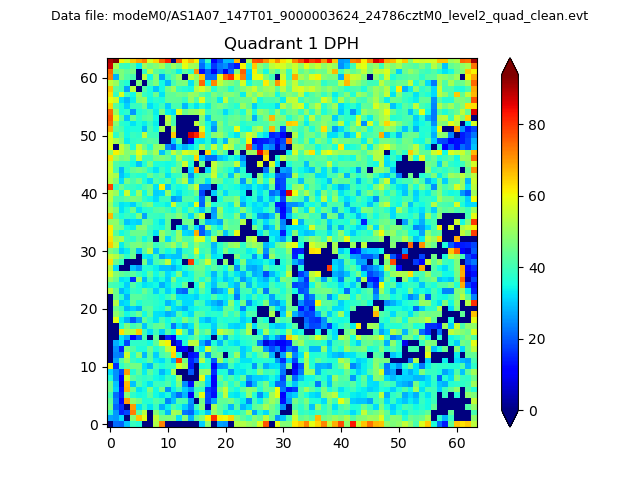

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

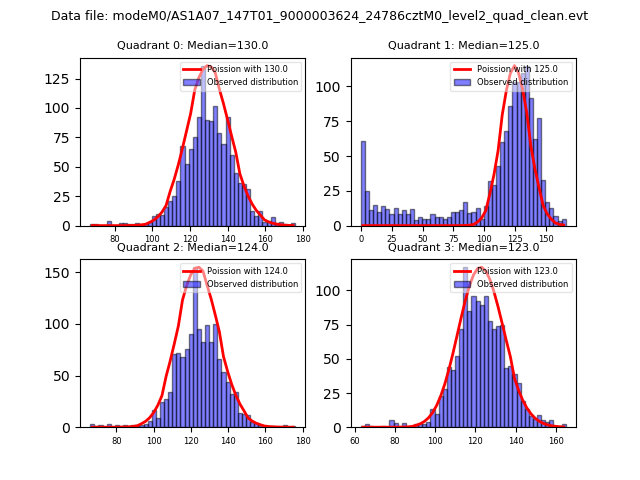

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

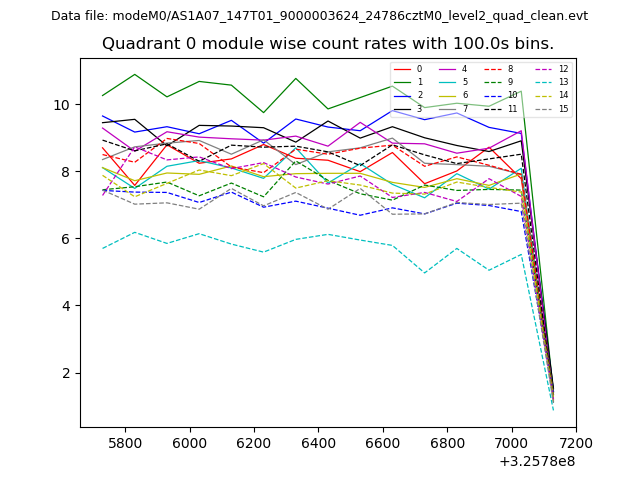

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

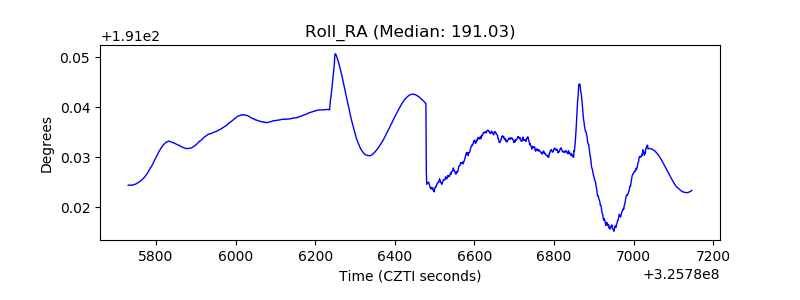

| _Roll_RA |  |

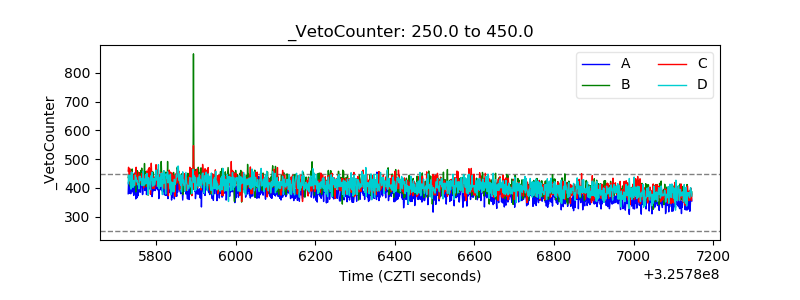

| Veto Counter |  |
