| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_197T01_9000003626_24799cztM0_level2.evt | modeM0/AS1T03_197T01_9000003626_24799cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,875,520 | 83,165,760 |
| Size | 481.5 MB | 79.3 MB |
| Events in quadrant A | 3,623,845 | 508,350 |
| Events in quadrant B | 3,912,673 | 509,353 |
| Events in quadrant C | 3,676,327 | 492,544 |
| Events in quadrant D | 3,570,329 | 489,000 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15439 | 2 |
| B | 0 | 16287 | 2 |
| C | 0 | 15593 | 2 |
| D | 0 | 15463 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7457 | 174 | 2.333378% |
| B | 7457 | 265 | 3.553708% |
| C | 7457 | 229 | 3.070940% |
| D | 7457 | 142 | 1.904251% |

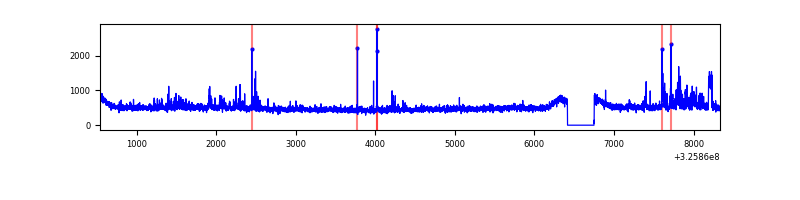

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

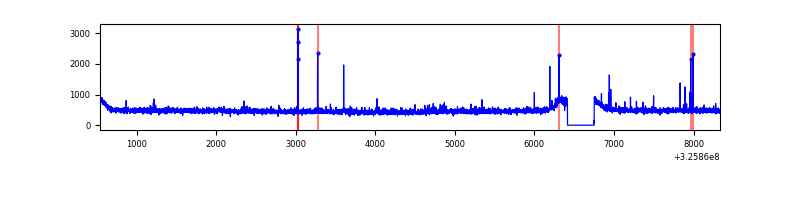

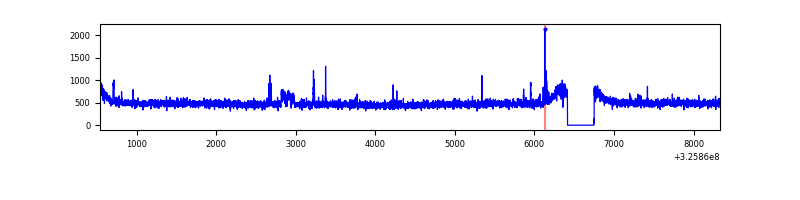

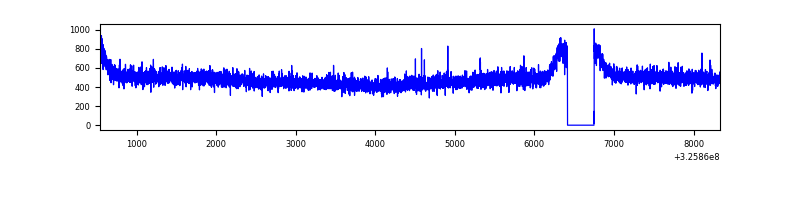

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7792 | 7458 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7792 | 7458 | 6 | 6 | 0.08% | 0.08% |  |
| C | 7792 | 7458 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7792 | 7458 | 7 | 7 | 0.09% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11329 | 55.14 | 936 | 917 | 188.8 |
| A | 3 | 137 | 8934 | 42.46 | 936 | 917 | 188.8 |
| A | 0 | 226 | 7939 | 37.19 | 936 | 917 | 188.8 |
| B | 0 | 189 | 175361 | 974.29 | 922 | 897 | 179.1 |
| B | 3 | 64 | 51887 | 284.75 | 922 | 897 | 179.1 |
| B | 12 | 111 | 22440 | 120.31 | 922 | 897 | 179.1 |
| C | 14 | 238 | 141973 | 682.94 | 885 | 888 | 206.6 |
| C | 5 | 112 | 32484 | 152.95 | 885 | 888 | 206.6 |
| C | 8 | 208 | 29108 | 136.6 | 885 | 888 | 206.6 |
| D | 8 | 195 | 105313 | 481.27 | 906 | 877 | 217.0 |
| D | 2 | 234 | 31168 | 139.59 | 906 | 877 | 217.0 |
| D | 1 | 52 | 23945 | 106.3 | 906 | 877 | 217.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

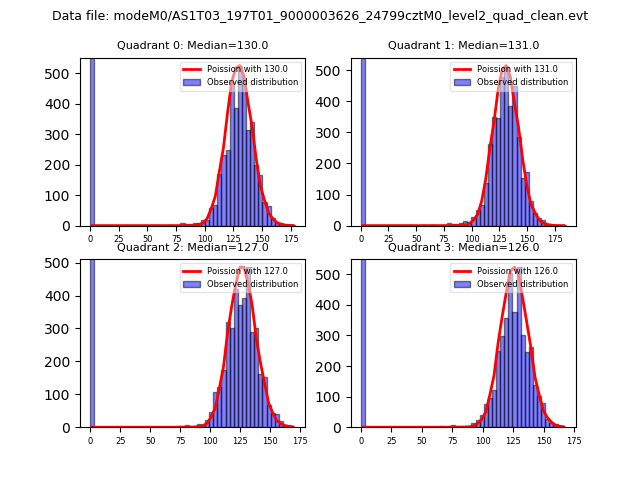

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

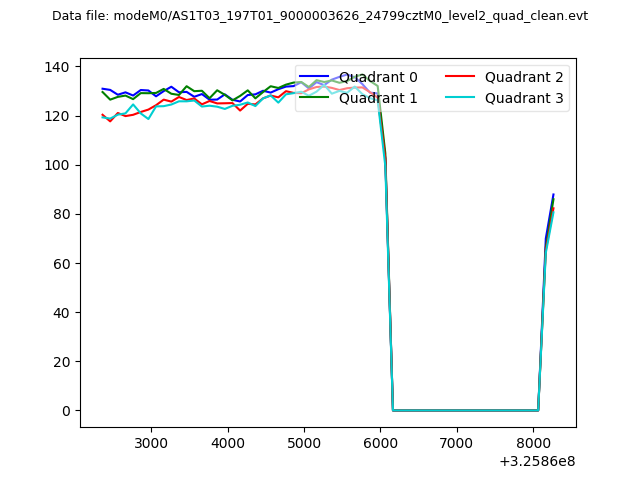

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

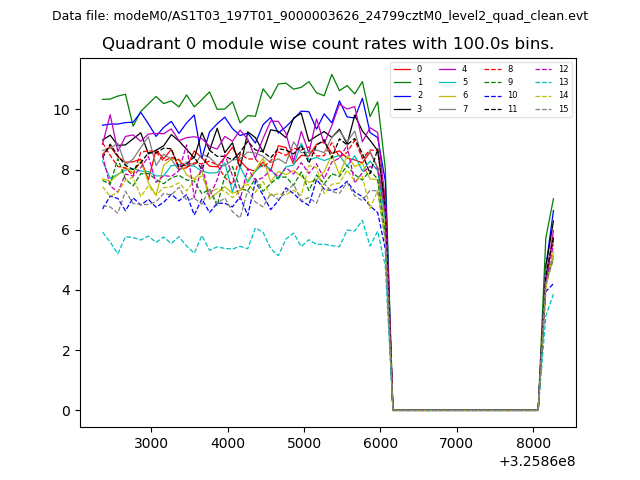

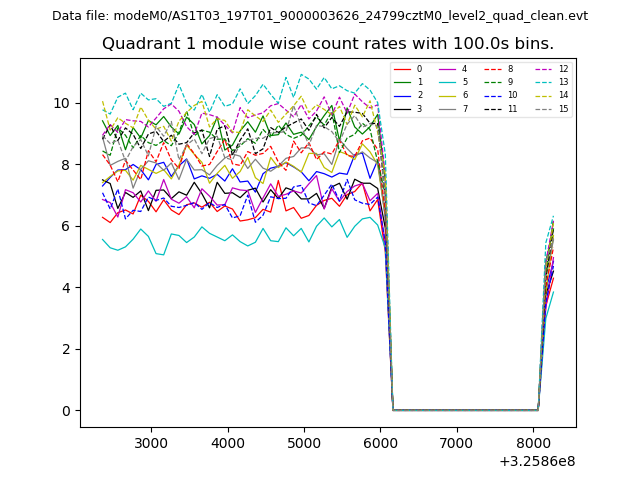

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

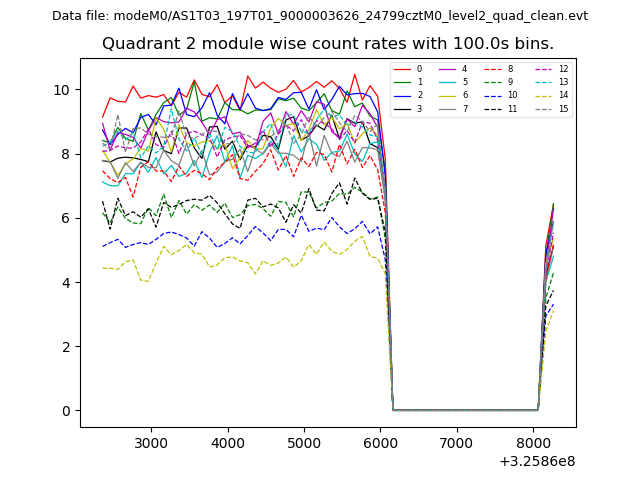

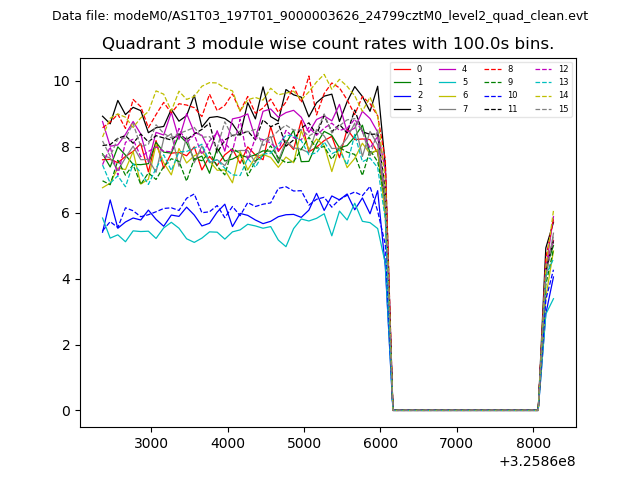

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

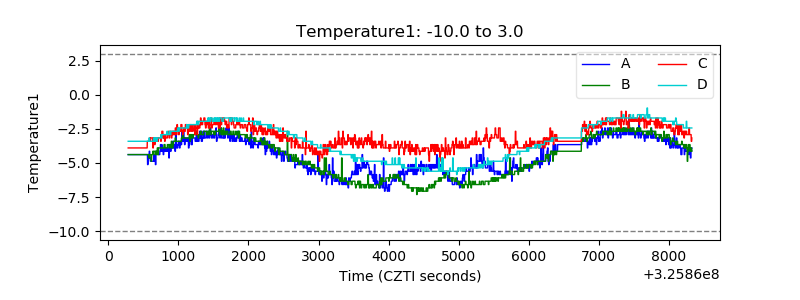

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

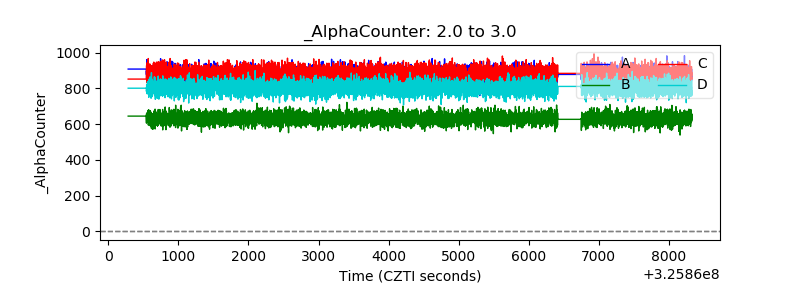

| Alpha Counter |  |

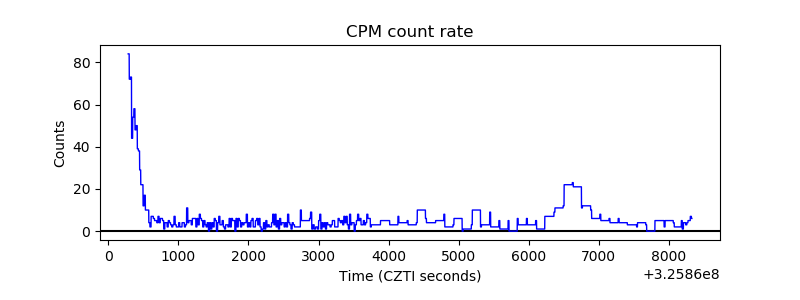

| _CPM_Rate |  |

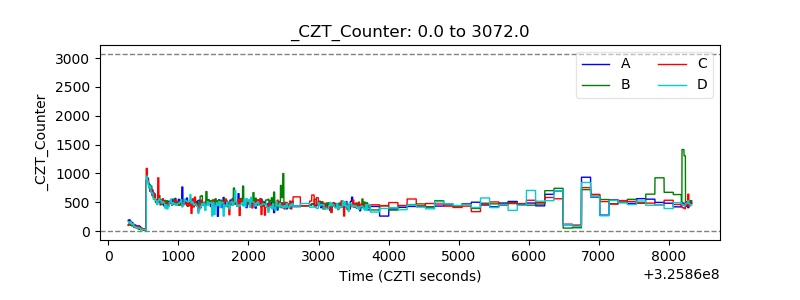

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

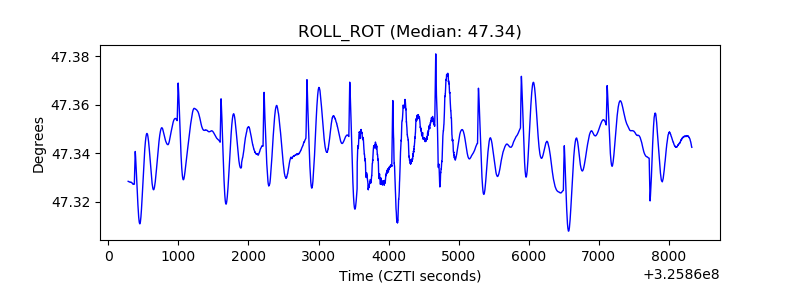

| _ROLL_ROT |  |

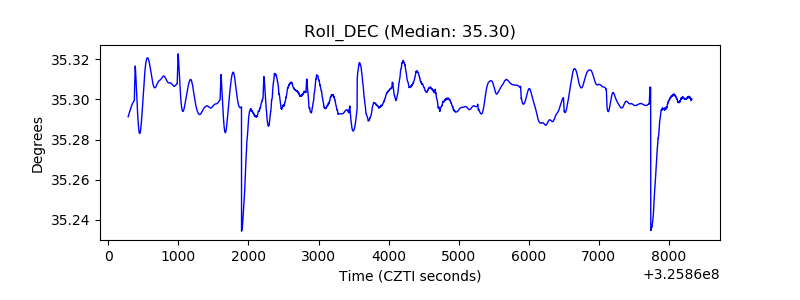

| _Roll_DEC |  |

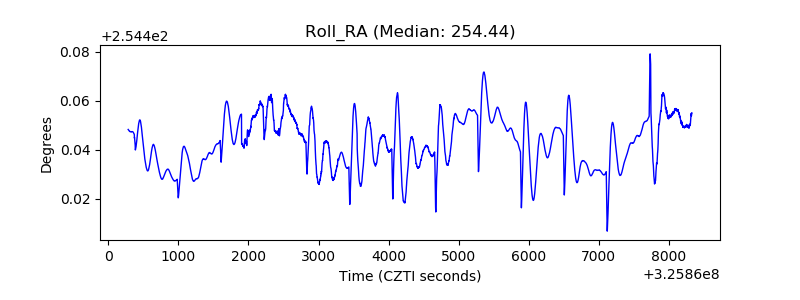

| _Roll_RA |  |

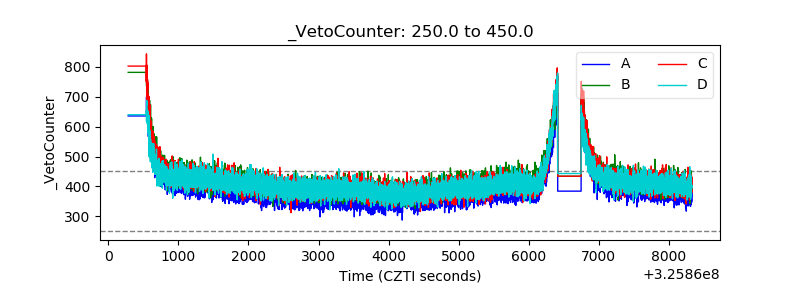

| Veto Counter |  |
