| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_197T01_9000003626_24800cztM0_level2.evt | modeM0/AS1T03_197T01_9000003626_24800cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,994,560 | 88,151,040 |
| Size | 467.3 MB | 84.1 MB |
| Events in quadrant A | 3,481,949 | 550,163 |
| Events in quadrant B | 3,795,989 | 549,136 |
| Events in quadrant C | 3,602,059 | 532,574 |
| Events in quadrant D | 3,461,396 | 527,387 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15034 | 1 |
| B | 0 | 16016 | 1 |
| C | 0 | 15401 | 1 |
| D | 0 | 15253 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7331 | 75 | 1.023053% |
| B | 7331 | 169 | 2.305279% |
| C | 7332 | 140 | 1.909438% |
| D | 7332 | 78 | 1.063830% |

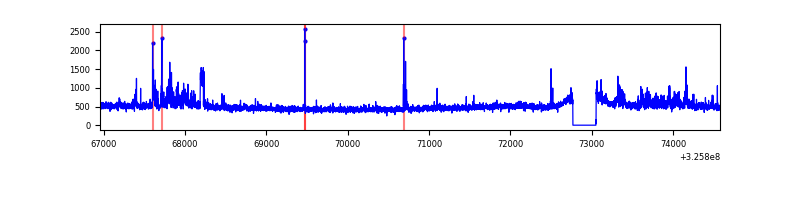

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7616 | 7332 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7616 | 7332 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7617 | 7333 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7617 | 7333 | 23 | 23 | 0.30% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10938 | 55.43 | 899 | 880 | 181.5 |
| A | 3 | 137 | 8520 | 42.1 | 899 | 880 | 181.5 |
| A | 0 | 226 | 7733 | 37.77 | 899 | 880 | 181.5 |
| B | 0 | 189 | 219301 | 1270.72 | 889 | 866 | 171.9 |
| B | 12 | 111 | 21403 | 119.47 | 889 | 866 | 171.9 |
| B | 11 | 111 | 19331 | 107.42 | 889 | 866 | 171.9 |
| C | 14 | 238 | 138190 | 682.29 | 856 | 859 | 201.3 |
| C | 7 | 247 | 108980 | 537.17 | 856 | 859 | 201.3 |
| C | 10 | 91 | 9981 | 45.32 | 856 | 859 | 201.3 |
| D | 1 | 52 | 80399 | 376.81 | 872 | 848 | 211.1 |
| D | 8 | 195 | 57596 | 268.8 | 872 | 848 | 211.1 |
| D | 2 | 234 | 33568 | 154.98 | 872 | 848 | 211.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

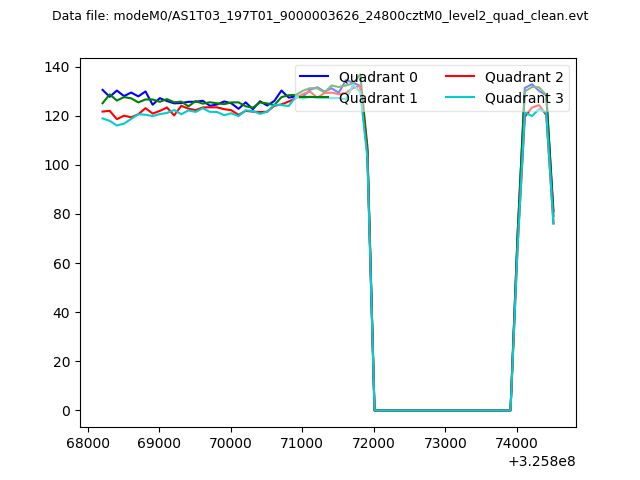

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

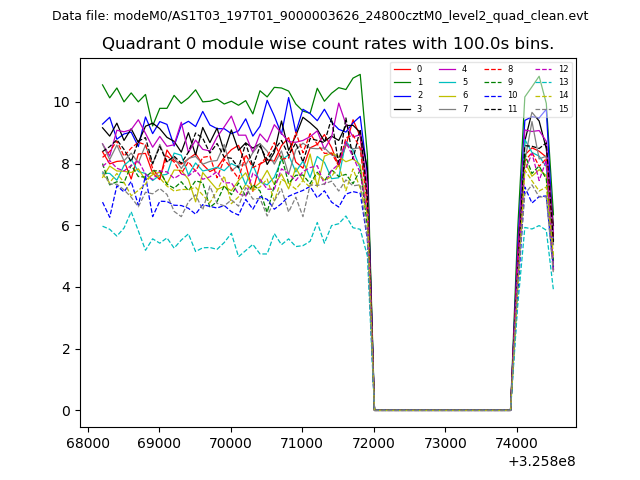

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

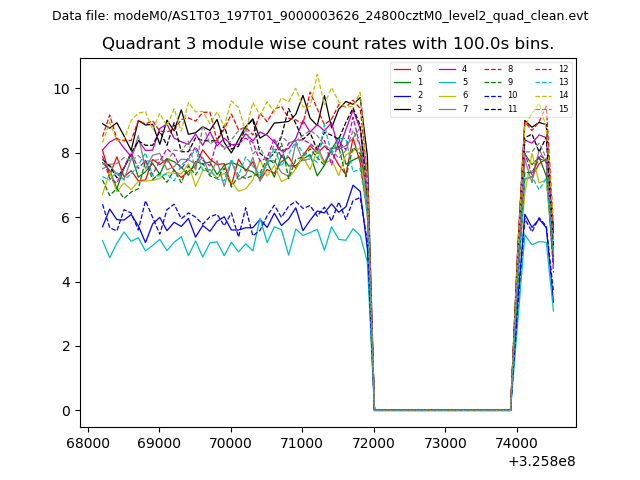

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

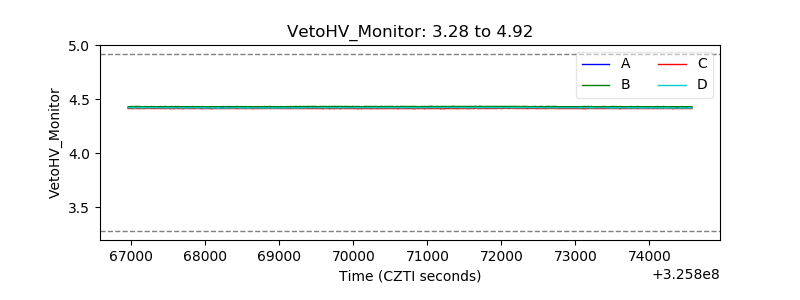

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

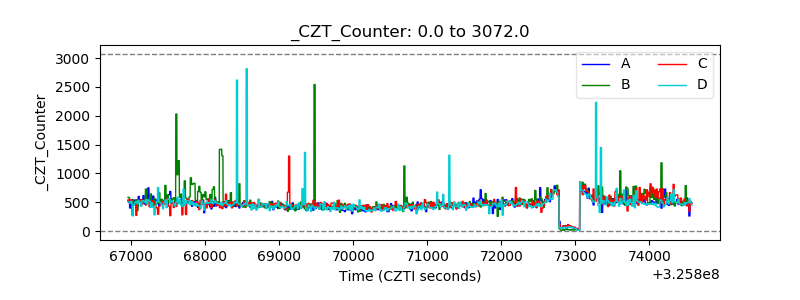

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

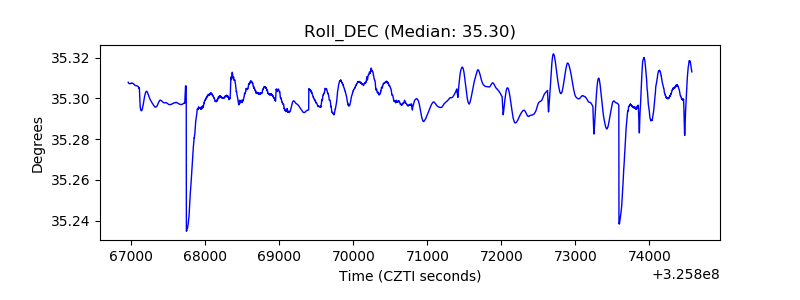

| _Roll_DEC |  |

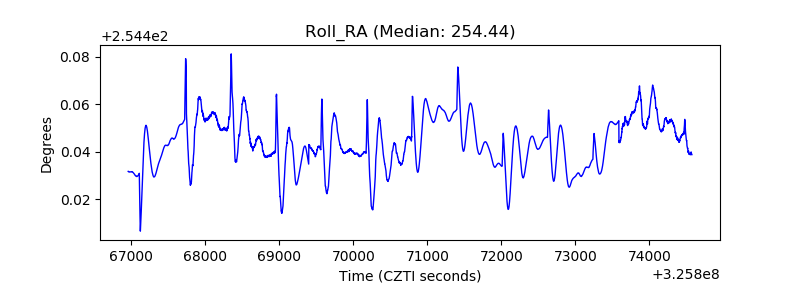

| _Roll_RA |  |
| Veto Counter |  |
