| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_197T01_9000003626_24801cztM0_level2.evt | modeM0/AS1T03_197T01_9000003626_24801cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,317,440 | 99,783,360 |
| Size | 548.7 MB | 95.2 MB |
| Events in quadrant A | 4,016,484 | 622,391 |
| Events in quadrant B | 4,317,300 | 623,094 |
| Events in quadrant C | 4,553,276 | 599,912 |
| Events in quadrant D | 3,971,988 | 598,768 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17223 | 2 |
| B | 0 | 18239 | 2 |
| C | 0 | 18812 | 2 |
| D | 0 | 17360 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8316 | 110 | 1.322751% |
| B | 8317 | 195 | 2.344595% |
| C | 8317 | 228 | 2.741373% |
| D | 8317 | 108 | 1.298545% |

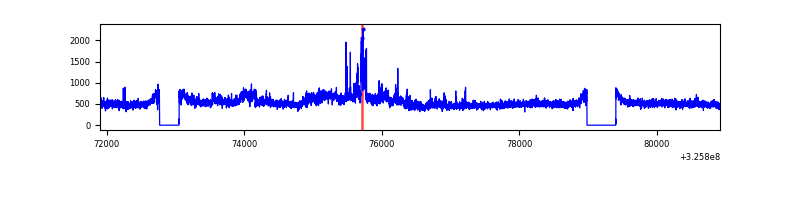

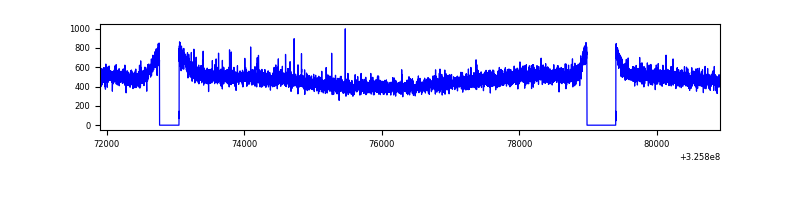

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9021 | 8318 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9022 | 8319 | 4 | 4 | 0.04% | 0.05% |  |
| C | 9022 | 8319 | 2 | 2 | 0.02% | 0.02% |  |
| D | 9022 | 8319 | 16 | 16 | 0.18% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 208 | 14949 | 66.37 | 1035 | 1012 | 210.0 |
| A | 13 | 254 | 12582 | 55.1 | 1035 | 1012 | 210.0 |
| A | 3 | 137 | 9865 | 42.16 | 1035 | 1012 | 210.0 |
| B | 0 | 189 | 180047 | 914.95 | 1021 | 991 | 195.7 |
| B | 3 | 64 | 69154 | 348.3 | 1021 | 991 | 195.7 |
| B | 12 | 111 | 24864 | 121.99 | 1021 | 991 | 195.7 |
| C | 7 | 247 | 460832 | 1991.88 | 985 | 989 | 230.9 |
| C | 14 | 238 | 157869 | 679.55 | 985 | 989 | 230.9 |
| C | 5 | 112 | 77556 | 331.66 | 985 | 989 | 230.9 |
| D | 8 | 195 | 82656 | 331.75 | 1005 | 973 | 246.2 |
| D | 1 | 52 | 66642 | 266.71 | 1005 | 973 | 246.2 |
| D | 2 | 234 | 37109 | 146.77 | 1005 | 973 | 246.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

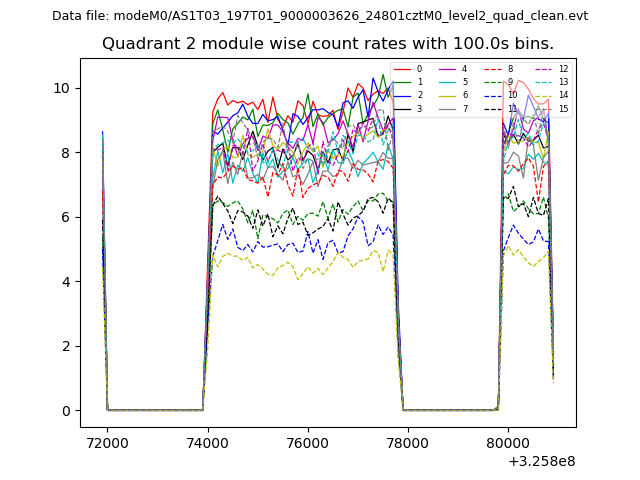

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

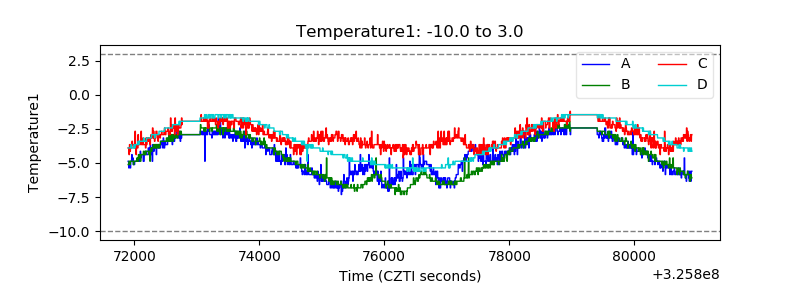

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

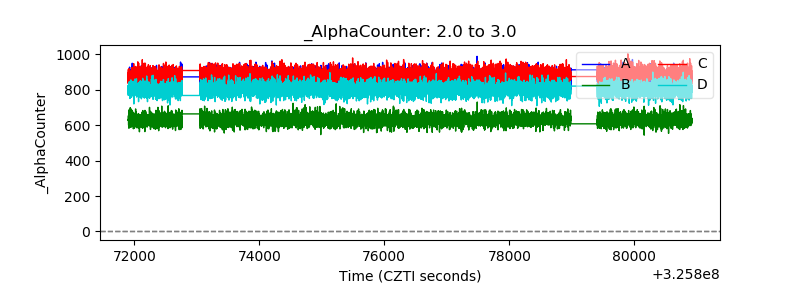

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

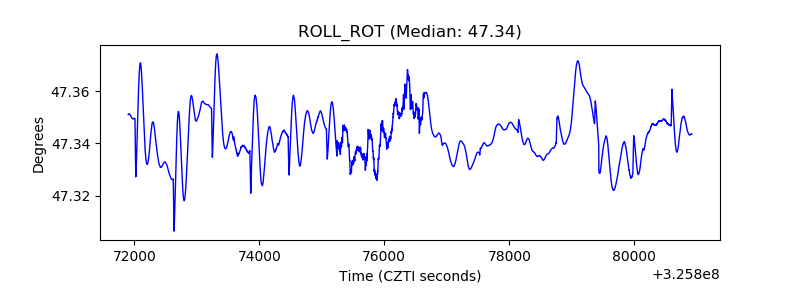

| _ROLL_ROT |  |
| _Roll_DEC |  |

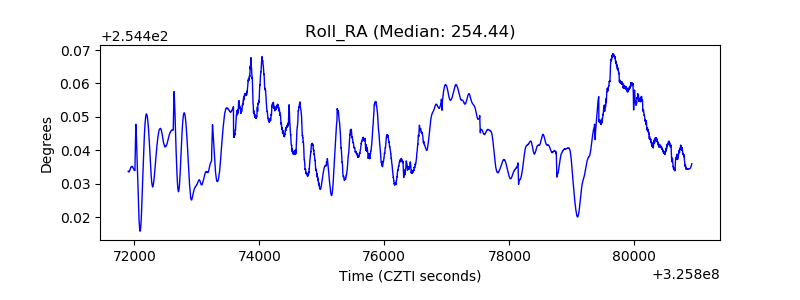

| _Roll_RA |  |

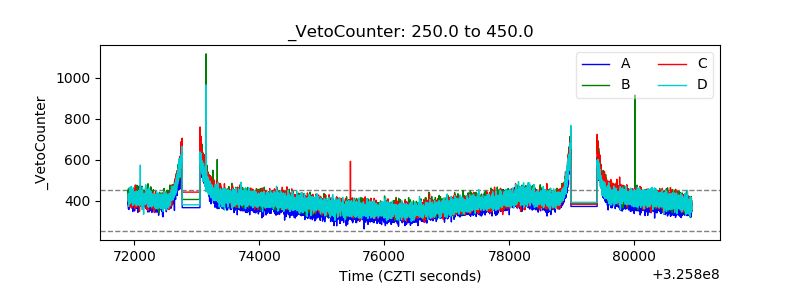

| Veto Counter |  |
