| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_197T01_9000003626_24812cztM0_level2.evt | modeM0/AS1T03_197T01_9000003626_24812cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,334,720 | 77,561,280 |
| Size | 497.2 MB | 74.0 MB |
| Events in quadrant A | 3,467,913 | 477,154 |
| Events in quadrant B | 4,863,688 | 472,032 |
| Events in quadrant C | 3,443,036 | 461,355 |
| Events in quadrant D | 3,546,134 | 457,664 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14351 | 2 |
| B | 0 | 18593 | 2 |
| C | 0 | 14290 | 2 |
| D | 0 | 14766 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6892 | 114 | 1.654092% |
| B | 6891 | 570 | 8.271659% |
| C | 6891 | 143 | 2.075171% |
| D | 6891 | 103 | 1.494703% |

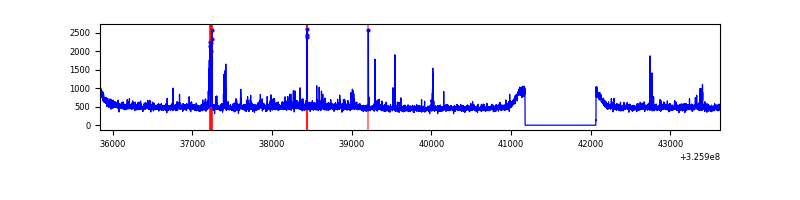

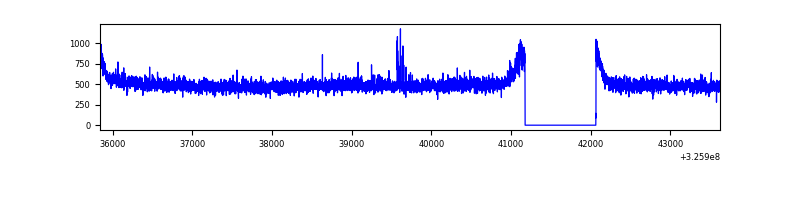

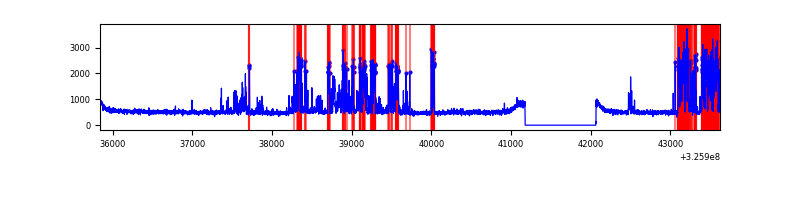

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 6893 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7781 | 6892 | 376 | 376 | 4.83% | 5.46% |  |
| C | 7781 | 6892 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7781 | 6892 | 10 | 10 | 0.13% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 10337 | 52.34 | 897 | 878 | 180.7 |
| A | 13 | 254 | 9934 | 50.11 | 897 | 878 | 180.7 |
| A | 3 | 137 | 8411 | 41.68 | 897 | 878 | 180.7 |
| B | 3 | 64 | 1413575 | 8593.98 | 857 | 836 | 164.4 |
| B | 4 | 52 | 66009 | 396.46 | 857 | 836 | 164.4 |
| B | 12 | 111 | 20300 | 118.4 | 857 | 836 | 164.4 |
| C | 14 | 238 | 133497 | 675.79 | 843 | 848 | 196.3 |
| C | 5 | 112 | 11756 | 55.57 | 843 | 848 | 196.3 |
| C | 13 | 61 | 5965 | 26.07 | 843 | 848 | 196.3 |
| D | 8 | 195 | 165368 | 789.28 | 865 | 840 | 208.5 |
| D | 1 | 52 | 72570 | 344.1 | 865 | 840 | 208.5 |
| D | 2 | 234 | 23729 | 109.8 | 865 | 840 | 208.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

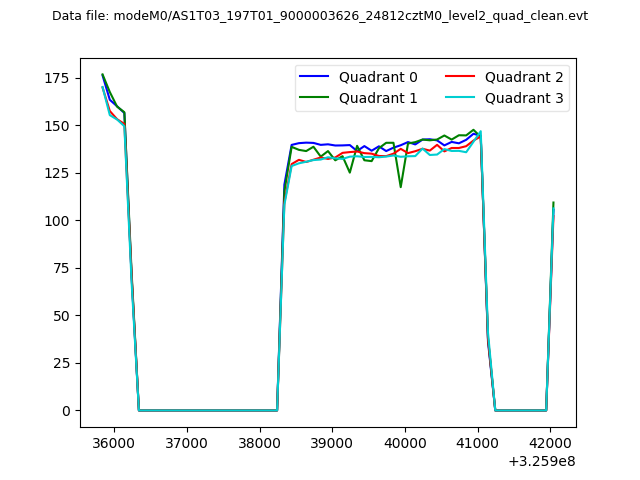

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

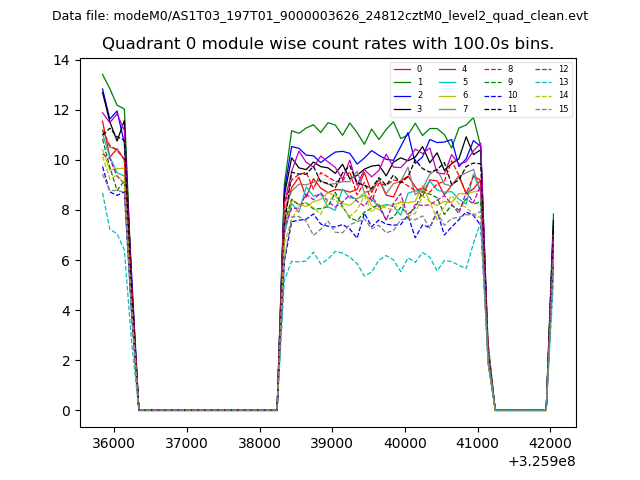

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

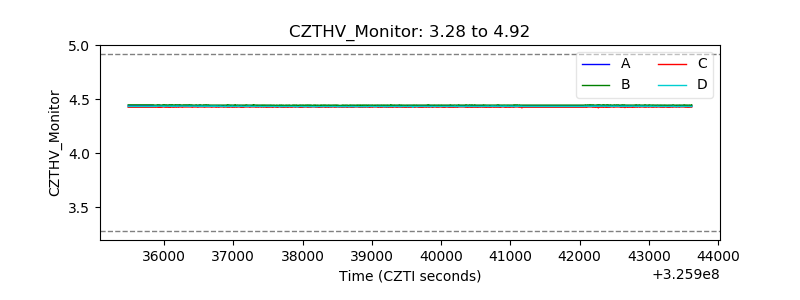

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

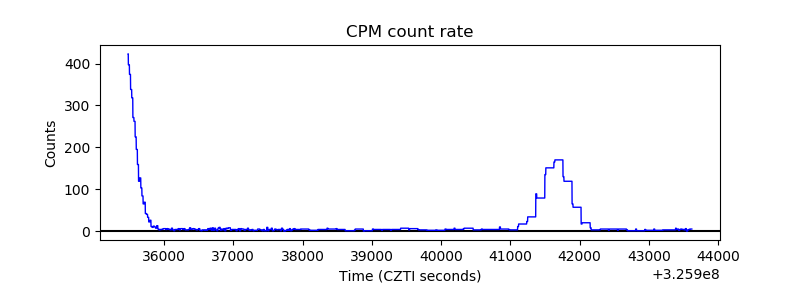

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

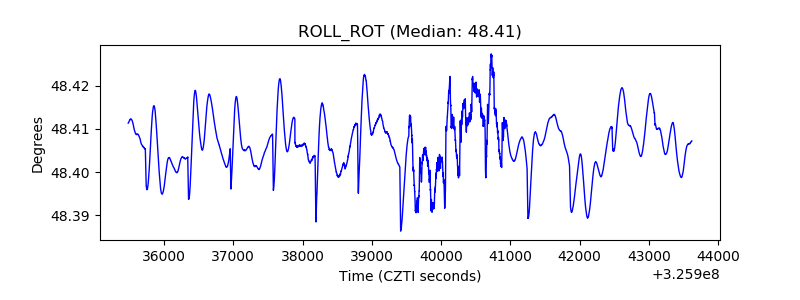

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
