| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_197T01_9000003626_24815cztM0_level2.evt | modeM0/AS1T03_197T01_9000003626_24815cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,721,920 | 93,424,320 |
| Size | 504.2 MB | 89.1 MB |
| Events in quadrant A | 3,694,001 | 584,838 |
| Events in quadrant B | 3,889,080 | 585,019 |
| Events in quadrant C | 3,788,359 | 566,237 |
| Events in quadrant D | 4,118,963 | 558,570 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15913 | 2 |
| B | 0 | 16515 | 2 |
| C | 0 | 15925 | 2 |
| D | 0 | 17041 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7683 | 166 | 2.160614% |
| B | 7683 | 204 | 2.655213% |
| C | 7683 | 235 | 3.058701% |
| D | 7683 | 164 | 2.134583% |

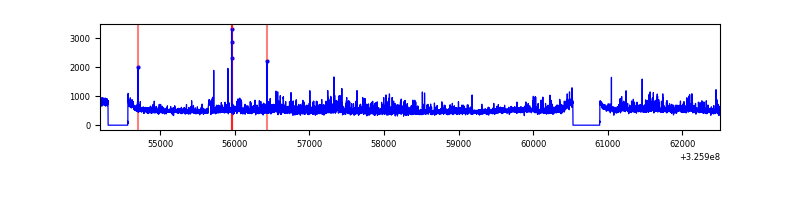

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8308 | 7685 | 4 | 4 | 0.05% | 0.05% |  |
| B | 8308 | 7685 | 4 | 4 | 0.05% | 0.05% |  |
| C | 8308 | 7685 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8308 | 7685 | 5 | 5 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 17893 | 88.29 | 953 | 932 | 192.1 |
| A | 13 | 254 | 12251 | 58.92 | 953 | 932 | 192.1 |
| A | 3 | 137 | 9188 | 42.98 | 953 | 932 | 192.1 |
| B | 0 | 189 | 87814 | 477.11 | 942 | 915 | 182.1 |
| B | 3 | 64 | 31589 | 168.41 | 942 | 915 | 182.1 |
| B | 7 | 202 | 28750 | 152.83 | 942 | 915 | 182.1 |
| C | 14 | 238 | 144247 | 674.58 | 906 | 909 | 212.5 |
| C | 7 | 247 | 88828 | 413.77 | 906 | 909 | 212.5 |
| C | 5 | 112 | 17735 | 79.18 | 906 | 909 | 212.5 |
| D | 8 | 195 | 571654 | 2536.54 | 924 | 894 | 225.0 |
| D | 1 | 52 | 46349 | 202.01 | 924 | 894 | 225.0 |
| D | 2 | 234 | 31316 | 135.2 | 924 | 894 | 225.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

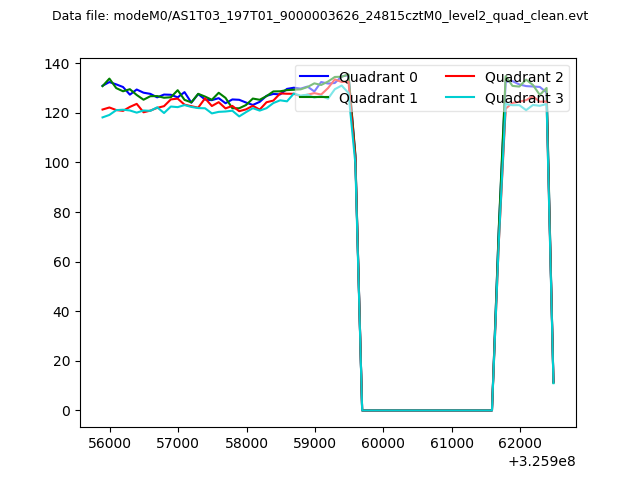

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

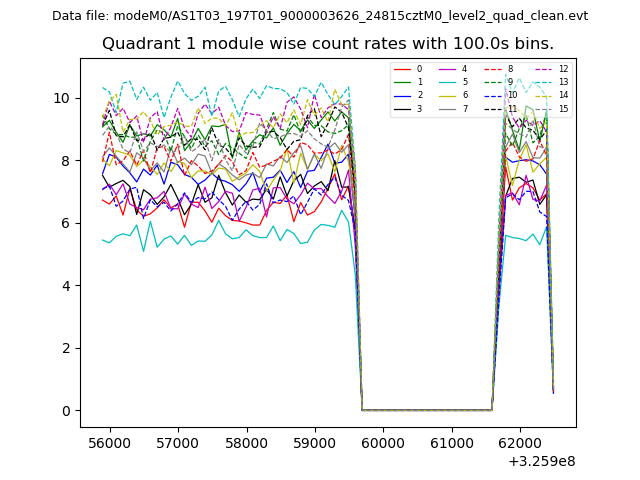

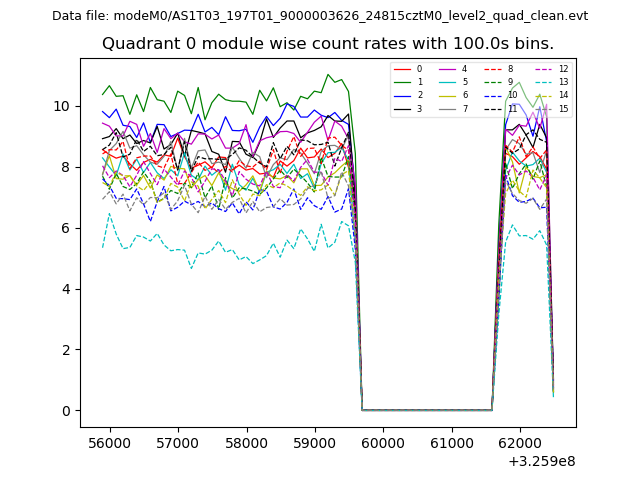

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

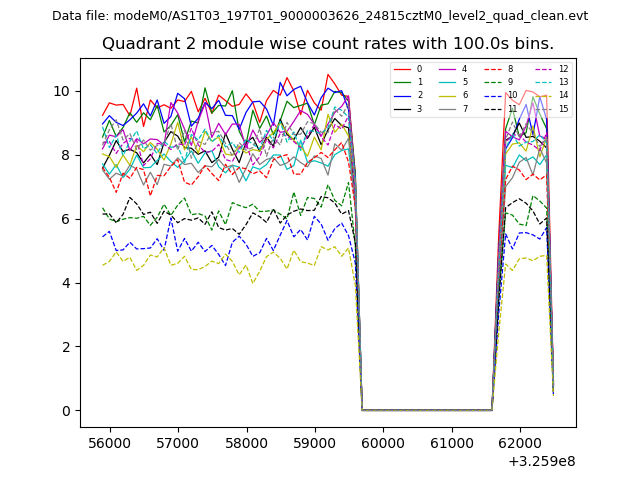

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

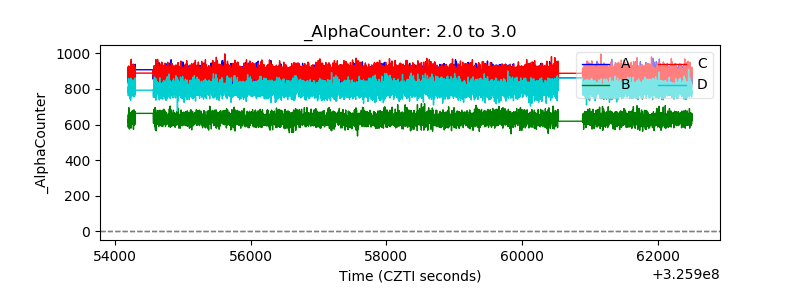

| Alpha Counter |  |
| _CPM_Rate |  |

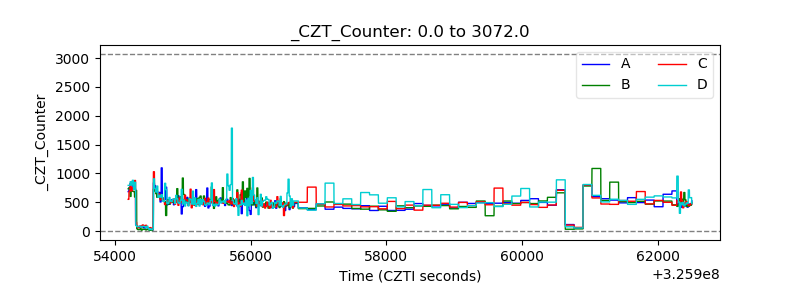

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

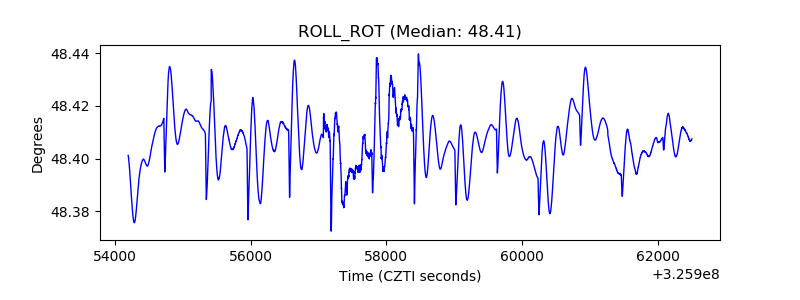

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
