| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_197T01_9000003626_24818cztM0_level2.evt | modeM0/AS1T03_197T01_9000003626_24818cztM0_level2_quad_clean.evt |
| Size (bytes) | 851,016,960 | 172,883,520 |
| Size | 811.6 MB | 164.9 MB |
| Events in quadrant A | 5,959,974 | 1,106,353 |
| Events in quadrant B | 6,272,933 | 1,106,391 |
| Events in quadrant C | 6,225,403 | 1,078,846 |
| Events in quadrant D | 6,454,421 | 1,066,861 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26078 | 3 |
| B | 0 | 26962 | 3 |
| C | 0 | 26528 | 3 |
| D | 0 | 27641 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12701 | 83 | 0.653492% |
| B | 12702 | 176 | 1.385609% |
| C | 12702 | 240 | 1.889466% |
| D | 12702 | 85 | 0.669186% |

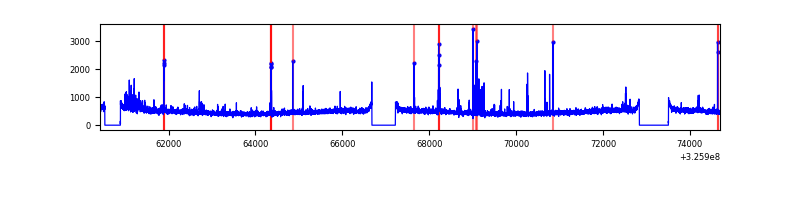

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14271 | 12704 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14272 | 12705 | 18 | 18 | 0.13% | 0.14% |  |
| C | 14272 | 12705 | 11 | 11 | 0.08% | 0.09% |  |
| D | 14272 | 12705 | 4 | 4 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 20638 | 61.96 | 1540 | 1509 | 308.7 |
| A | 3 | 137 | 14751 | 42.89 | 1540 | 1509 | 308.7 |
| A | 0 | 226 | 13194 | 37.85 | 1540 | 1509 | 308.7 |
| B | 0 | 189 | 101464 | 339.67 | 1528 | 1488 | 294.3 |
| B | 4 | 80 | 62004 | 205.6 | 1528 | 1488 | 294.3 |
| B | 10 | 251 | 46107 | 151.59 | 1528 | 1488 | 294.3 |
| C | 14 | 238 | 235445 | 675.47 | 1477 | 1484 | 346.4 |
| C | 2 | 16 | 97814 | 278.11 | 1477 | 1484 | 346.4 |
| C | 7 | 247 | 86734 | 246.13 | 1477 | 1484 | 346.4 |
| D | 8 | 195 | 682498 | 1888.04 | 1500 | 1454 | 360.7 |
| D | 1 | 52 | 58296 | 157.58 | 1500 | 1454 | 360.7 |
| D | 2 | 234 | 51269 | 138.1 | 1500 | 1454 | 360.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

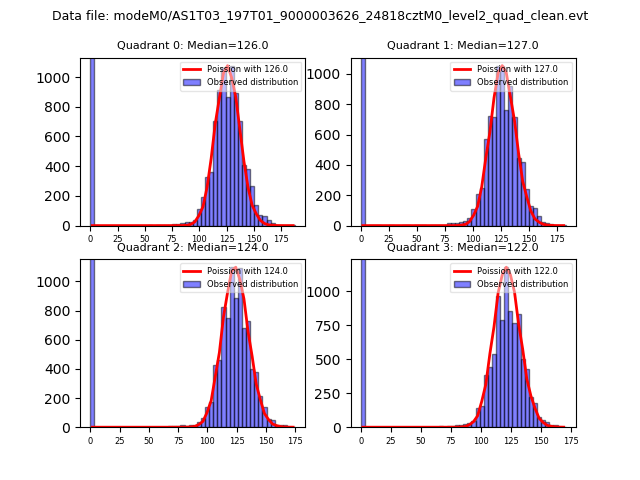

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

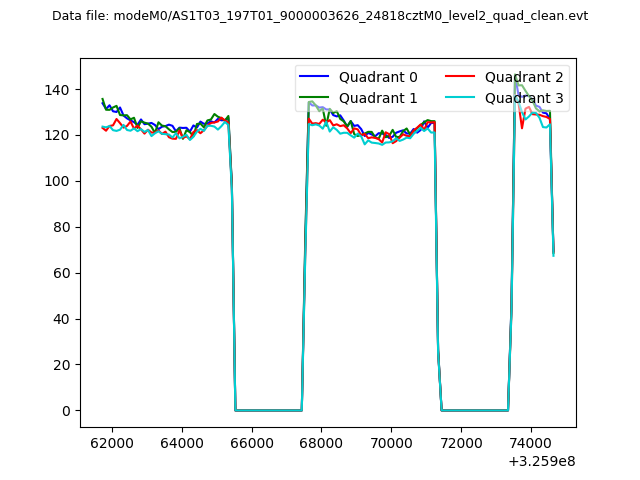

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

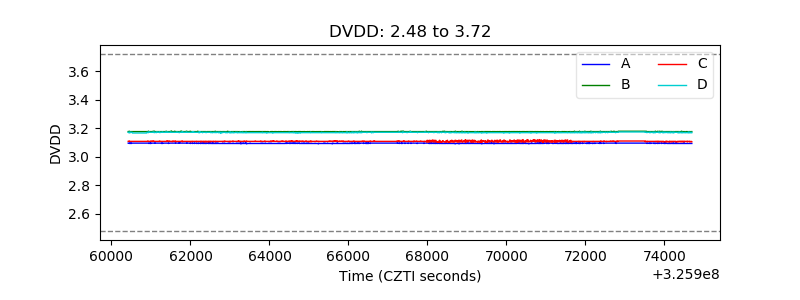

| D_VDD |  |
| Temperature 1 |  |

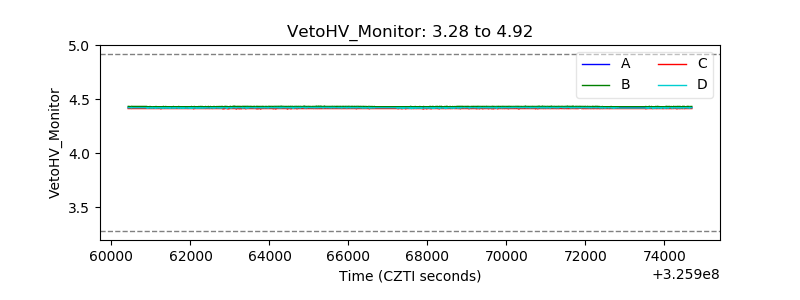

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

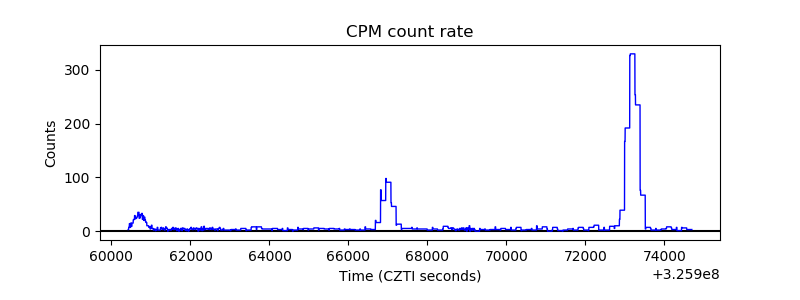

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

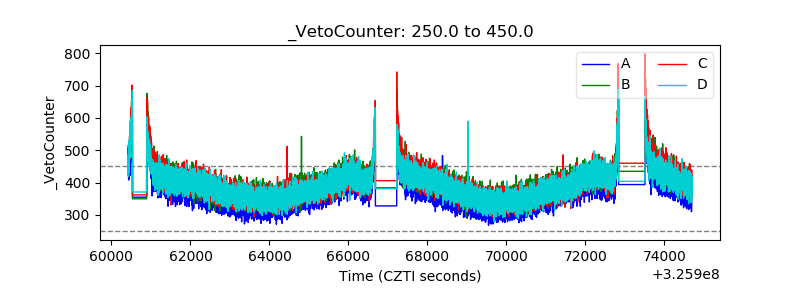

| Veto Counter |  |
