| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_045T01_9000003628_24827cztM0_level2.evt | modeM0/AS1A07_045T01_9000003628_24827cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,846,400 | 107,976,960 |
| Size | 572.1 MB | 103.0 MB |
| Events in quadrant A | 4,093,697 | 697,663 |
| Events in quadrant B | 4,869,034 | 694,883 |
| Events in quadrant C | 4,322,360 | 662,291 |
| Events in quadrant D | 4,336,402 | 656,738 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16916 | 2 |
| B | 0 | 19363 | 2 |
| C | 0 | 17614 | 2 |
| D | 0 | 17831 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8042 | 218 | 2.710768% |
| B | 8043 | 418 | 5.197066% |
| C | 8043 | 299 | 3.717518% |
| D | 8043 | 174 | 2.163372% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9772 | 8044 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9773 | 8045 | 105 | 105 | 1.07% | 1.31% |  |
| C | 9773 | 8045 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9773 | 8045 | 4 | 4 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12002 | 51.25 | 1062 | 1039 | 213.9 |
| A | 3 | 137 | 10041 | 42.08 | 1062 | 1039 | 213.9 |
| A | 0 | 226 | 8818 | 36.37 | 1062 | 1039 | 213.9 |
| B | 3 | 64 | 700207 | 3478.27 | 1037 | 1009 | 201.0 |
| B | 0 | 189 | 55730 | 272.22 | 1037 | 1009 | 201.0 |
| B | 12 | 111 | 25321 | 120.94 | 1037 | 1009 | 201.0 |
| C | 7 | 247 | 199966 | 840.26 | 1005 | 1012 | 236.8 |
| C | 14 | 238 | 158003 | 663.03 | 1005 | 1012 | 236.8 |
| C | 2 | 16 | 49263 | 203.78 | 1005 | 1012 | 236.8 |
| D | 8 | 195 | 430668 | 1718.44 | 1025 | 996 | 250.0 |
| D | 2 | 234 | 31234 | 120.93 | 1025 | 996 | 250.0 |
| D | 1 | 52 | 27771 | 107.08 | 1025 | 996 | 250.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

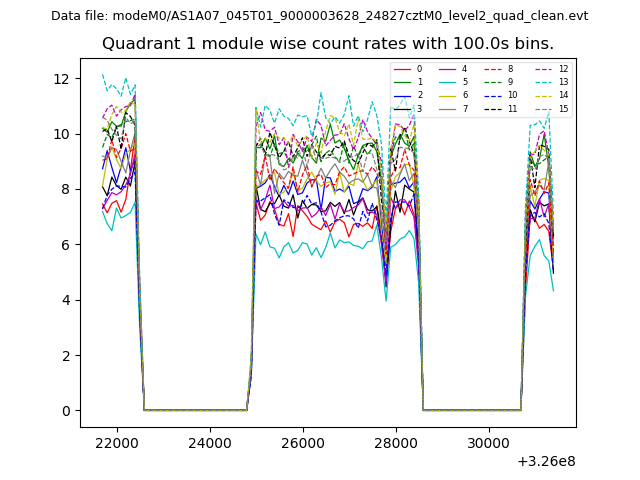

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

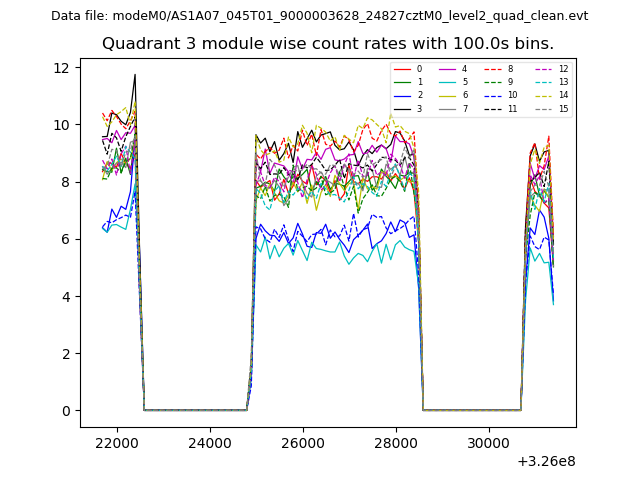

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

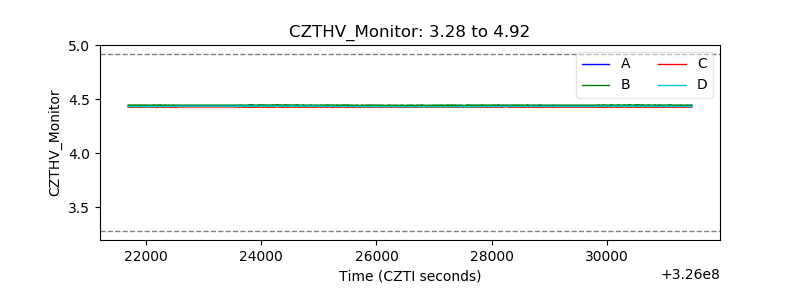

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

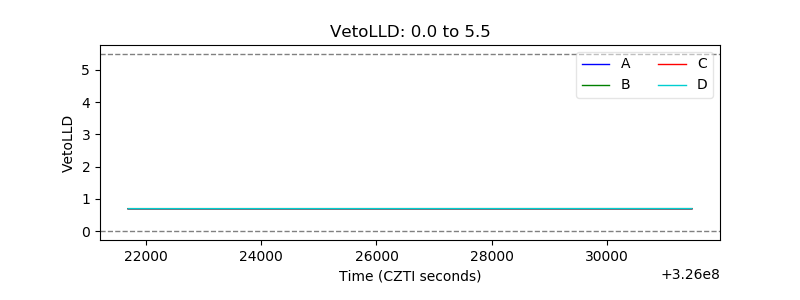

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

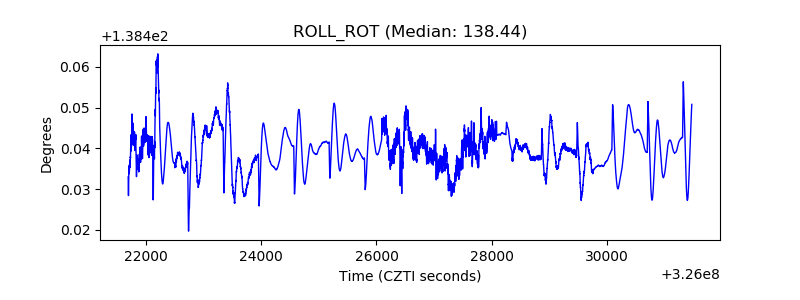

| _ROLL_ROT |  |

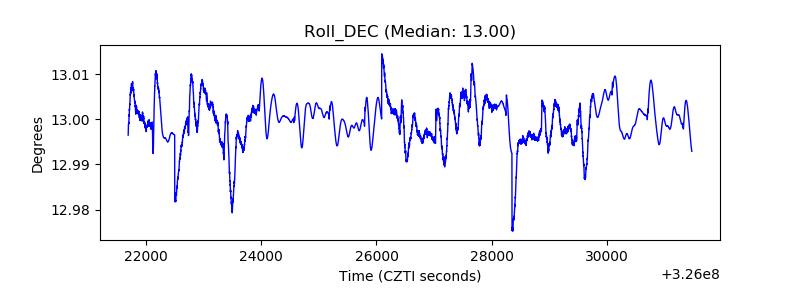

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
