| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T03_9000003632_24836cztM0_level2.evt | modeM0/AS1A08_003T03_9000003632_24836cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,328,640 | 93,018,240 |
| Size | 450.4 MB | 88.7 MB |
| Events in quadrant A | 3,285,917 | 605,255 |
| Events in quadrant B | 3,448,451 | 620,521 |
| Events in quadrant C | 3,366,626 | 576,980 |
| Events in quadrant D | 3,757,180 | 555,845 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13731 | 2 |
| B | 0 | 14240 | 2 |
| C | 0 | 13990 | 2 |
| D | 0 | 15426 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6576 | 33 | 0.501825% |
| B | 6576 | 59 | 0.897202% |
| C | 6577 | 75 | 1.140338% |
| D | 6577 | 187 | 2.843242% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8846 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8846 | 6578 | 7 | 7 | 0.08% | 0.11% |  |
| C | 8847 | 6579 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8847 | 6579 | 151 | 151 | 1.71% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9328 | 49.88 | 851 | 834 | 170.3 |
| A | 3 | 137 | 7684 | 40.22 | 851 | 834 | 170.3 |
| A | 0 | 226 | 7277 | 37.83 | 851 | 834 | 170.3 |
| B | 10 | 251 | 60471 | 370.32 | 848 | 829 | 161.1 |
| B | 0 | 189 | 41285 | 251.19 | 848 | 829 | 161.1 |
| B | 12 | 111 | 19649 | 116.85 | 848 | 829 | 161.1 |
| C | 14 | 238 | 131080 | 685.79 | 812 | 818 | 189.9 |
| C | 5 | 112 | 38048 | 196.0 | 812 | 818 | 189.9 |
| C | 7 | 247 | 37009 | 190.53 | 812 | 818 | 189.9 |
| D | 12 | 218 | 534952 | 2720.28 | 805 | 785 | 196.4 |
| D | 8 | 195 | 140879 | 713.44 | 805 | 785 | 196.4 |
| D | 2 | 234 | 26193 | 129.39 | 805 | 785 | 196.4 |

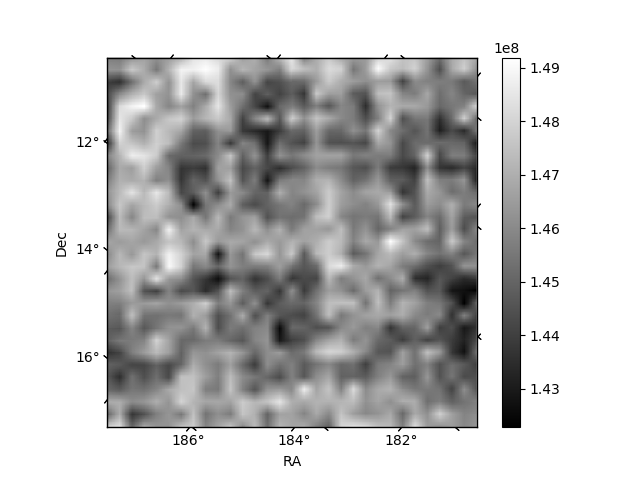

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

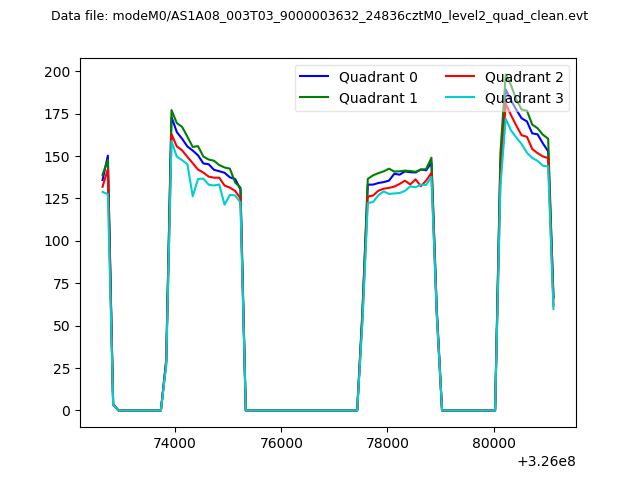

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

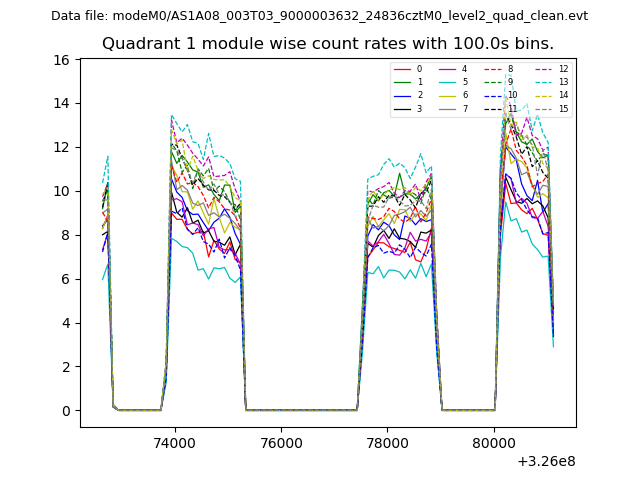

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

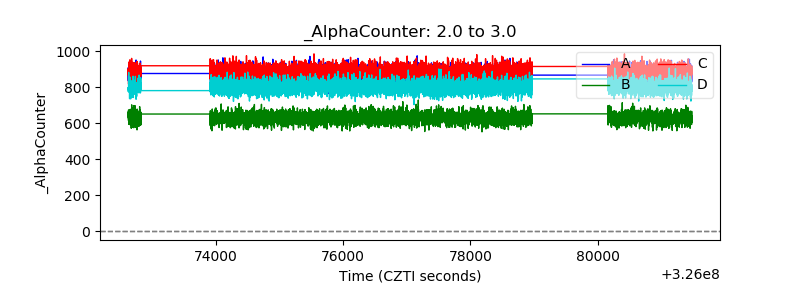

| Alpha Counter |  |
| _CPM_Rate |  |

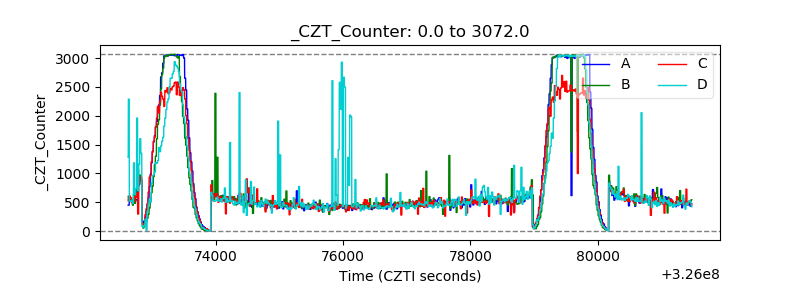

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

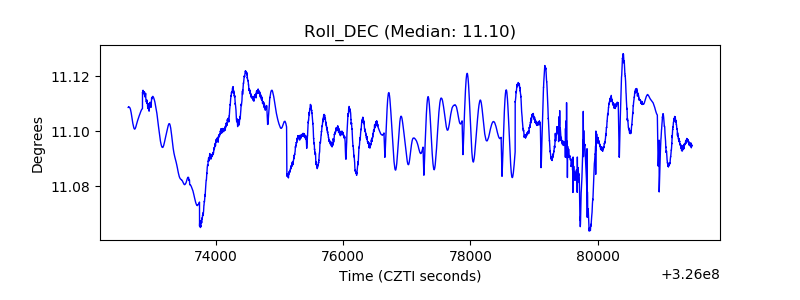

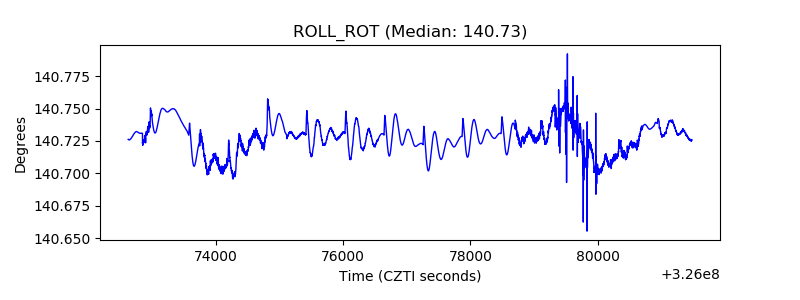

| _ROLL_ROT |  |
| _Roll_DEC |  |

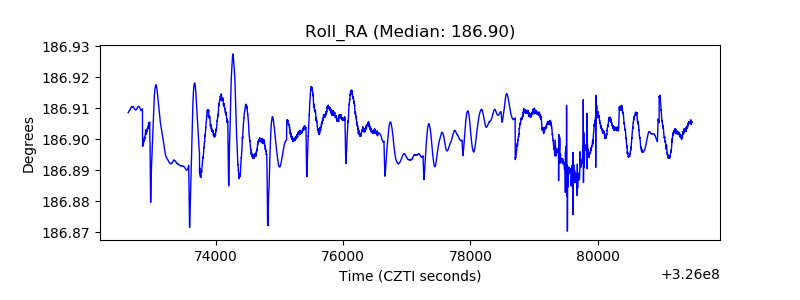

| _Roll_RA |  |
| Veto Counter |  |
