| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T02_9000003640_24867cztM0_level2.evt | modeM0/AS1A07_027T02_9000003640_24867cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,250,240 | 118,316,160 |
| Size | 494.2 MB | 112.8 MB |
| Events in quadrant A | 3,295,661 | 790,274 |
| Events in quadrant B | 3,362,654 | 813,341 |
| Events in quadrant C | 3,520,543 | 793,330 |
| Events in quadrant D | 5,097,782 | 755,188 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13523 | 2 |
| B | 0 | 13828 | 2 |
| C | 0 | 14360 | 2 |
| D | 0 | 19421 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6185 | 34 | 0.549717% |
| B | 6185 | 39 | 0.630558% |
| C | 6184 | 106 | 1.714101% |
| D | 6184 | 276 | 4.463131% |

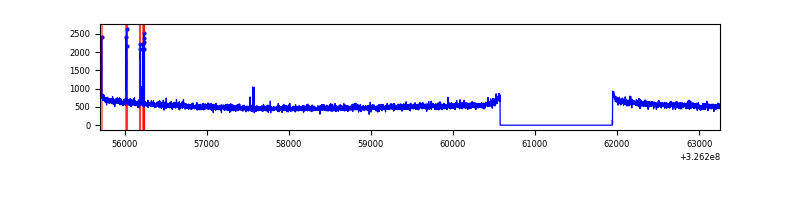

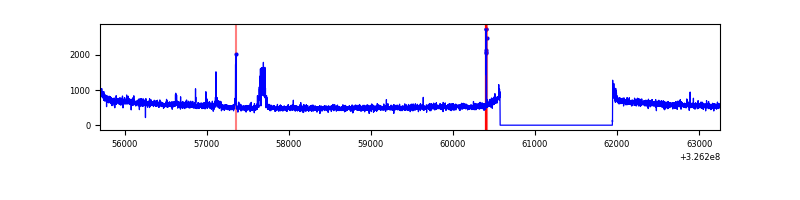

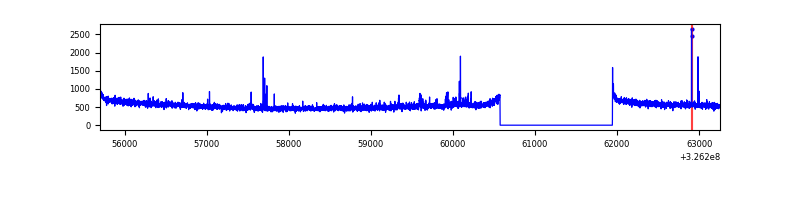

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7555 | 6186 | 11 | 11 | 0.15% | 0.18% |  |
| B | 7555 | 6186 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7554 | 6185 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7554 | 6185 | 234 | 234 | 3.10% | 3.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 39965 | 234.21 | 842 | 827 | 167.1 |
| A | 8 | 160 | 9939 | 54.53 | 842 | 827 | 167.1 |
| A | 13 | 254 | 9538 | 52.13 | 842 | 827 | 167.1 |
| B | 0 | 189 | 25295 | 157.55 | 843 | 822 | 155.3 |
| B | 12 | 111 | 18384 | 113.06 | 843 | 822 | 155.3 |
| B | 11 | 111 | 16518 | 101.05 | 843 | 822 | 155.3 |
| C | 14 | 238 | 135539 | 696.49 | 836 | 844 | 193.4 |
| C | 2 | 16 | 96062 | 492.36 | 836 | 844 | 193.4 |
| C | 7 | 220 | 21789 | 108.3 | 836 | 844 | 193.4 |
| D | 12 | 218 | 1035594 | 5201.67 | 831 | 808 | 198.9 |
| D | 1 | 52 | 774972 | 3891.57 | 831 | 808 | 198.9 |
| D | 8 | 195 | 82280 | 409.54 | 831 | 808 | 198.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

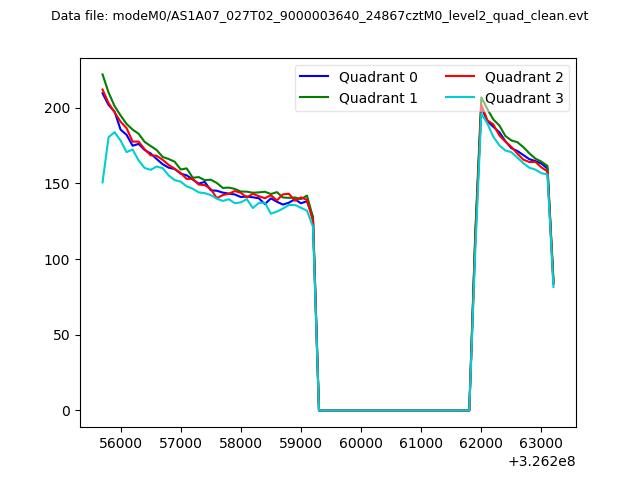

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

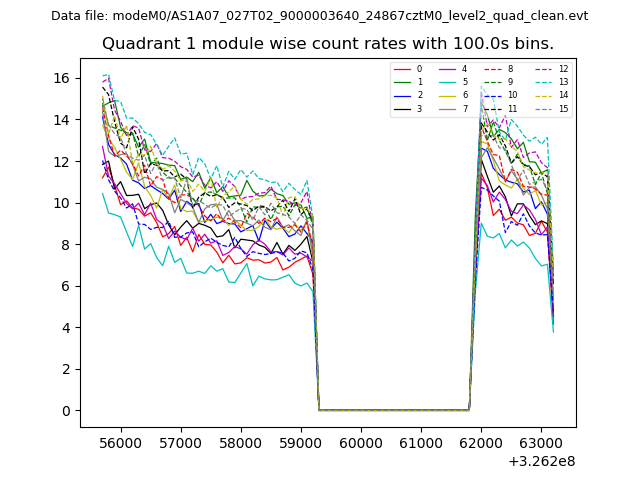

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

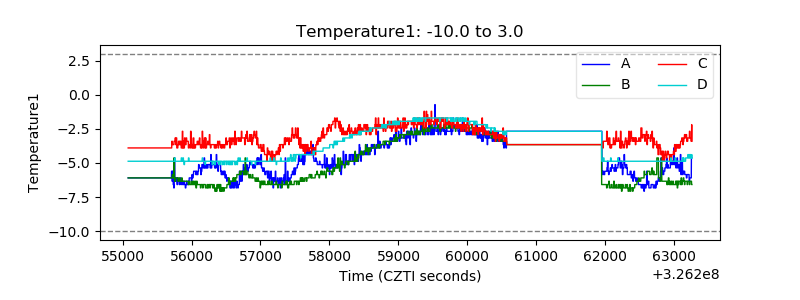

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

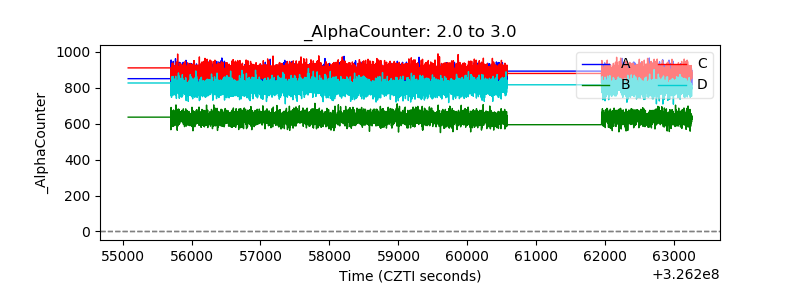

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

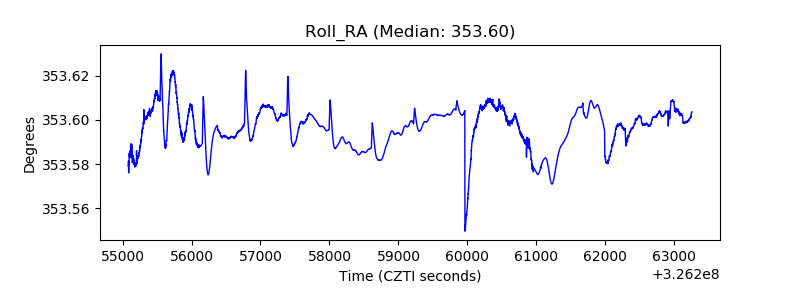

| _Roll_RA |  |
| Veto Counter |  |
