| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T02_9000003640_24869cztM0_level2.evt | modeM0/AS1A07_027T02_9000003640_24869cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,148,160 | 93,421,440 |
| Size | 539.0 MB | 89.1 MB |
| Events in quadrant A | 3,364,347 | 601,423 |
| Events in quadrant B | 3,351,120 | 614,788 |
| Events in quadrant C | 3,990,997 | 587,232 |
| Events in quadrant D | 5,967,193 | 570,538 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13913 | 1 |
| B | 0 | 13788 | 1 |
| C | 0 | 15932 | 1 |
| D | 0 | 22318 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6525 | 80 | 1.226054% |
| B | 6526 | 96 | 1.471039% |
| C | 6526 | 246 | 3.769537% |
| D | 6526 | 444 | 6.803555% |

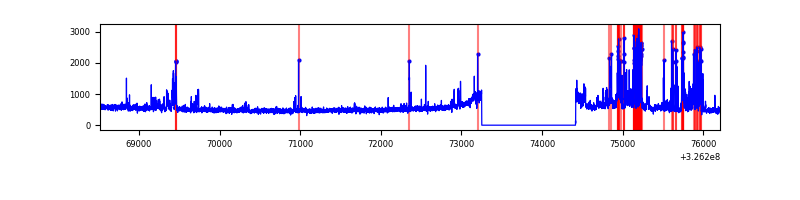

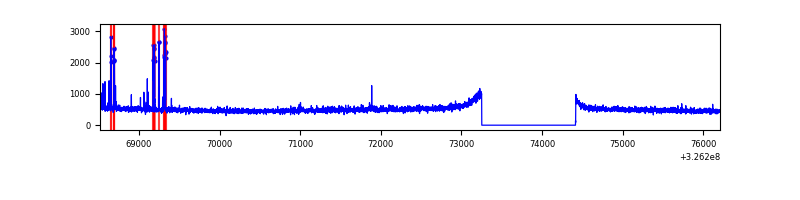

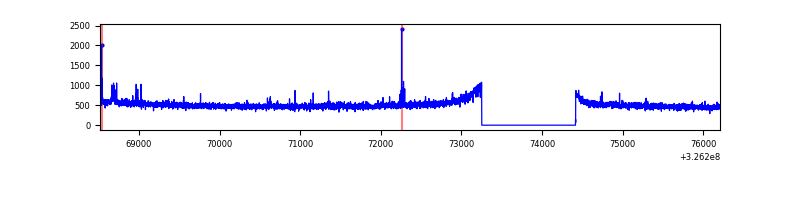

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7690 | 6526 | 30 | 30 | 0.39% | 0.46% |  |
| B | 7691 | 6527 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7691 | 6527 | 90 | 90 | 1.17% | 1.38% |  |
| D | 7691 | 6527 | 391 | 391 | 5.08% | 5.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 97153 | 570.51 | 842 | 825 | 168.8 |
| A | 15 | 192 | 22167 | 126.4 | 842 | 825 | 168.8 |
| A | 13 | 254 | 9782 | 53.05 | 842 | 825 | 168.8 |
| B | 7 | 205 | 58099 | 363.44 | 831 | 812 | 157.6 |
| B | 12 | 111 | 18816 | 114.22 | 831 | 812 | 157.6 |
| B | 11 | 111 | 17249 | 104.28 | 831 | 812 | 157.6 |
| C | 7 | 247 | 546038 | 2863.14 | 814 | 821 | 190.4 |
| C | 14 | 238 | 128084 | 668.31 | 814 | 821 | 190.4 |
| C | 2 | 16 | 126680 | 660.93 | 814 | 821 | 190.4 |
| D | 1 | 52 | 1278024 | 6386.8 | 825 | 801 | 200.0 |
| D | 8 | 195 | 863834 | 4315.63 | 825 | 801 | 200.0 |
| D | 12 | 218 | 659396 | 3293.33 | 825 | 801 | 200.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

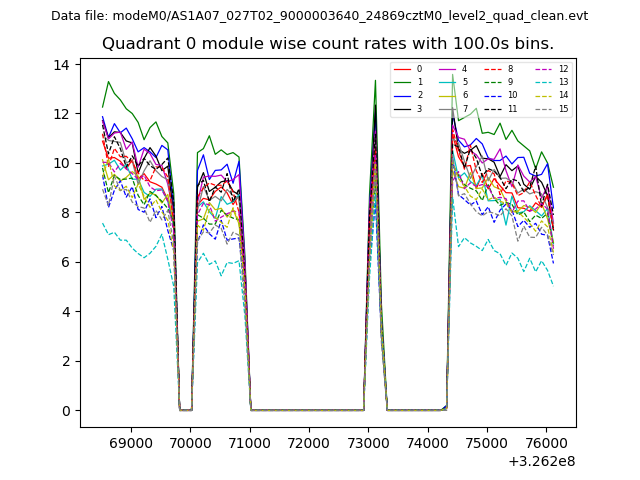

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

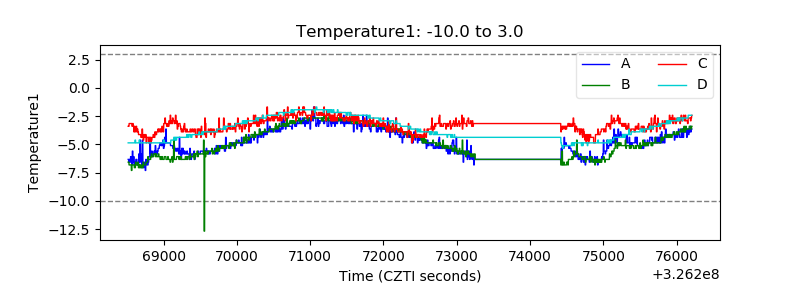

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

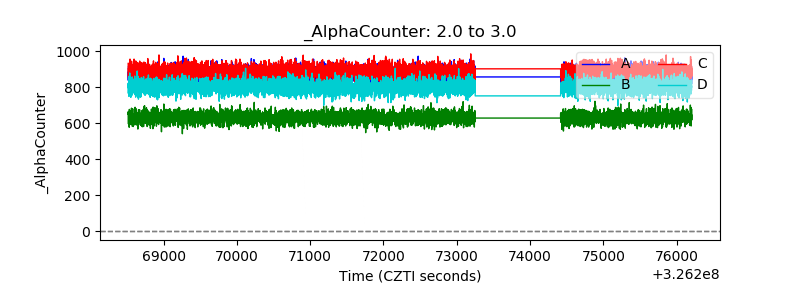

| Alpha Counter |  |

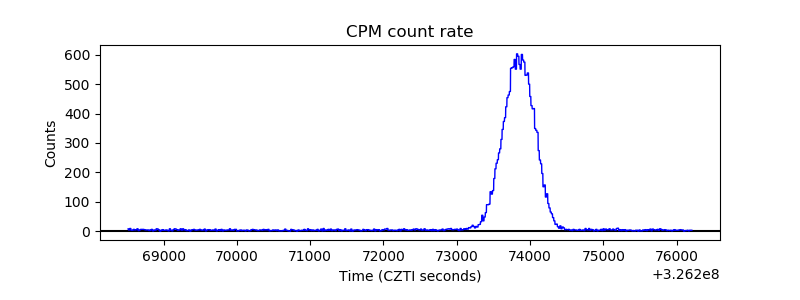

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

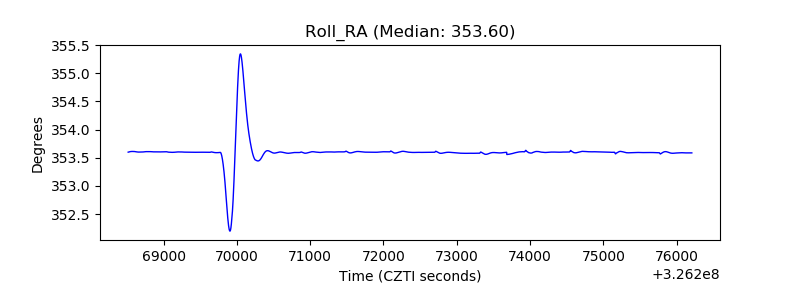

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
