| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T08_9000003638_24857cztM0_level2.evt | modeM0/AS1A08_003T08_9000003638_24857cztM0_level2_quad_clean.evt |
| Size (bytes) | 247,132,800 | 19,414,080 |
| Size | 235.7 MB | 18.5 MB |
| Events in quadrant A | 1,772,133 | 101,913 |
| Events in quadrant B | 1,479,570 | 104,775 |
| Events in quadrant C | 1,489,242 | 97,144 |
| Events in quadrant D | 2,550,305 | 82,284 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6985 | 2 |
| B | 0 | 6046 | 2 |
| C | 0 | 6040 | 2 |
| D | 0 | 9432 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2812 | 294 | 10.455192% |
| B | 2812 | 194 | 6.899004% |
| C | 2812 | 190 | 6.756757% |
| D | 2811 | 558 | 19.850587% |

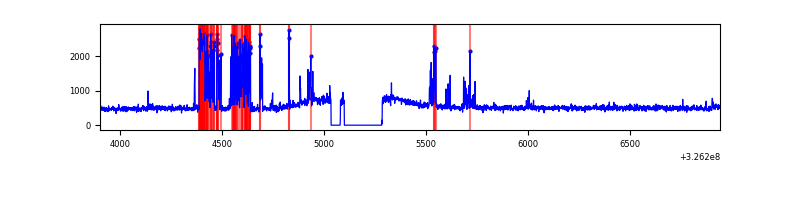

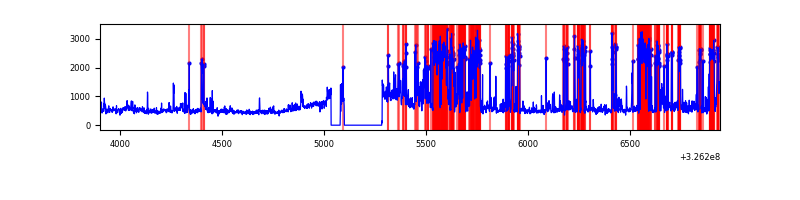

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3042 | 2813 | 90 | 90 | 2.96% | 3.20% |  |
| B | 3042 | 2813 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3042 | 2813 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3041 | 2812 | 377 | 377 | 12.40% | 13.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 323653 | 4138.73 | 374 | 364 | 78.1 |
| A | 15 | 223 | 4782 | 56.56 | 374 | 364 | 78.1 |
| A | 13 | 254 | 3965 | 46.1 | 374 | 364 | 78.1 |
| B | 12 | 111 | 9688 | 123.51 | 375 | 365 | 75.5 |
| B | 11 | 111 | 8963 | 113.9 | 375 | 365 | 75.5 |
| B | 14 | 111 | 8186 | 103.61 | 375 | 365 | 75.5 |
| C | 14 | 238 | 57402 | 658.17 | 359 | 359 | 86.7 |
| C | 7 | 247 | 27045 | 307.91 | 359 | 359 | 86.7 |
| C | 10 | 91 | 5182 | 55.65 | 359 | 359 | 86.7 |
| D | 1 | 52 | 824980 | 9894.73 | 335 | 323 | 83.3 |
| D | 12 | 218 | 432787 | 5188.96 | 335 | 323 | 83.3 |
| D | 8 | 195 | 23503 | 278.13 | 335 | 323 | 83.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

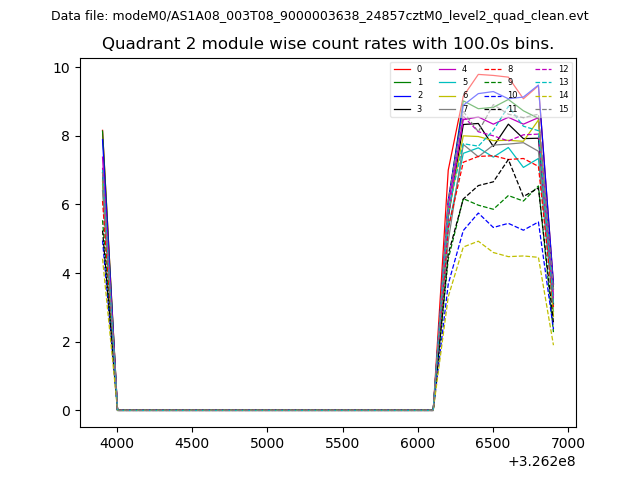

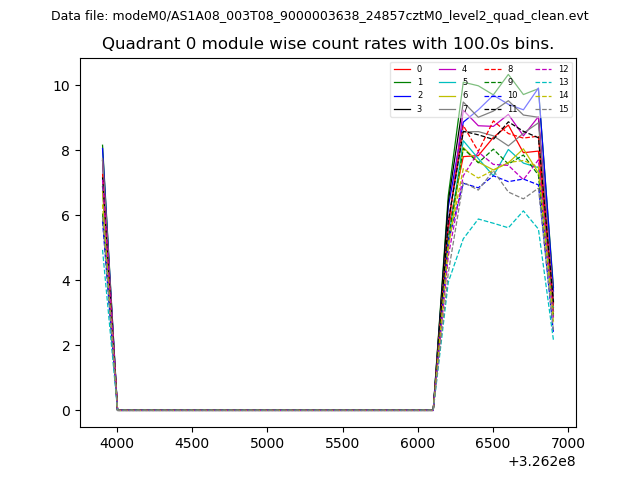

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

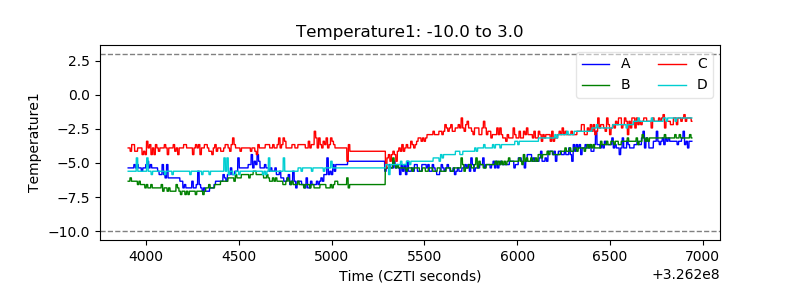

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

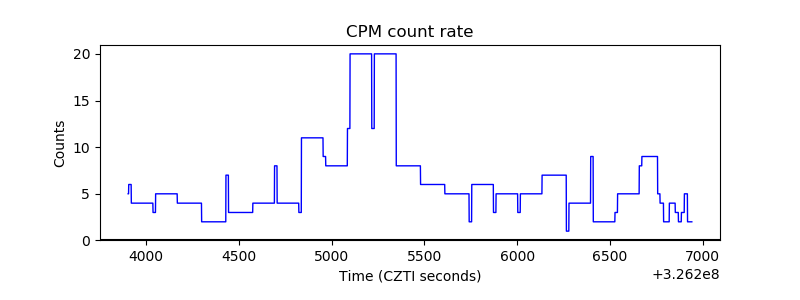

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

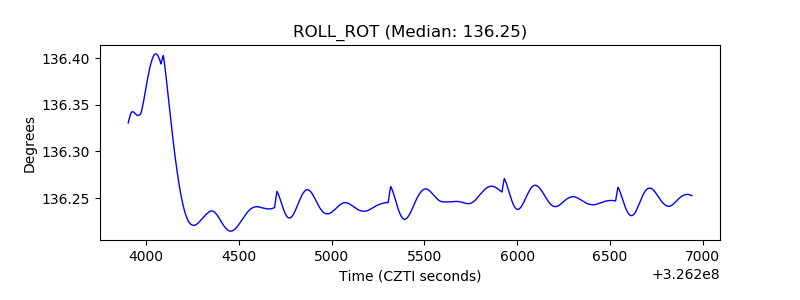

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

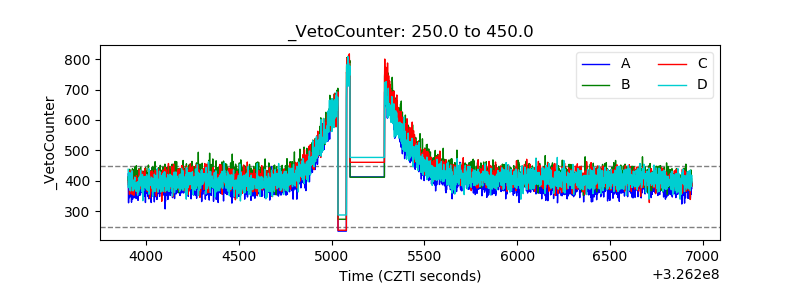

| Veto Counter |  |
