| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T16_9000003642_24877cztM0_level2.evt | modeM0/AS1A07_027T16_9000003642_24877cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,781,120 | 88,646,400 |
| Size | 540.5 MB | 84.5 MB |
| Events in quadrant A | 3,129,036 | 575,006 |
| Events in quadrant B | 3,160,960 | 579,565 |
| Events in quadrant C | 4,909,120 | 539,525 |
| Events in quadrant D | 5,527,866 | 539,364 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13422 | 0 |
| B | 0 | 13466 | 0 |
| C | 0 | 18980 | 0 |
| D | 0 | 20794 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6462 | 41 | 0.634478% |
| B | 6462 | 44 | 0.680904% |
| C | 6462 | 387 | 5.988858% |
| D | 6461 | 569 | 8.806686% |

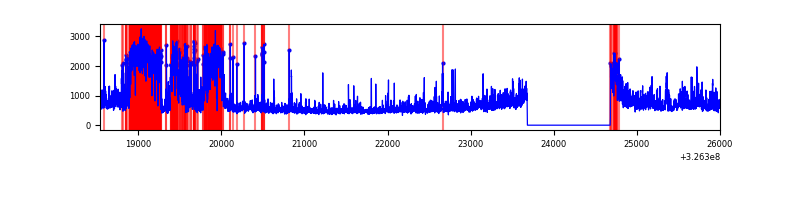

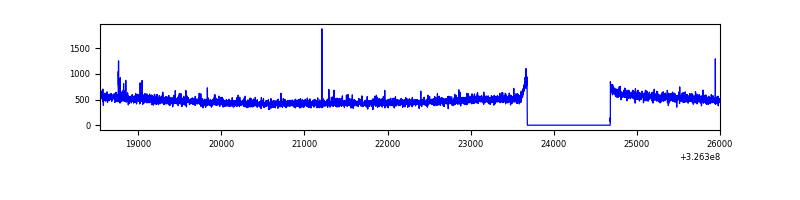

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7462 | 6463 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7462 | 6463 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7462 | 6463 | 191 | 191 | 2.56% | 2.96% |  |
| D | 7461 | 6462 | 539 | 539 | 7.22% | 8.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 25059 | 150.51 | 803 | 785 | 161.3 |
| A | 13 | 254 | 10503 | 60.26 | 803 | 785 | 161.3 |
| A | 3 | 137 | 7217 | 39.88 | 803 | 785 | 161.3 |
| B | 12 | 111 | 18501 | 116.06 | 796 | 777 | 152.7 |
| B | 4 | 80 | 16752 | 104.6 | 796 | 777 | 152.7 |
| B | 11 | 111 | 16584 | 103.5 | 796 | 777 | 152.7 |
| C | 7 | 247 | 1762878 | 9998.62 | 757 | 762 | 176.2 |
| C | 14 | 238 | 119664 | 674.68 | 757 | 762 | 176.2 |
| C | 2 | 16 | 72324 | 406.06 | 757 | 762 | 176.2 |
| D | 1 | 52 | 1724082 | 9372.71 | 761 | 739 | 183.9 |
| D | 8 | 195 | 783296 | 4256.08 | 761 | 739 | 183.9 |
| D | 7 | 238 | 90415 | 487.72 | 761 | 739 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

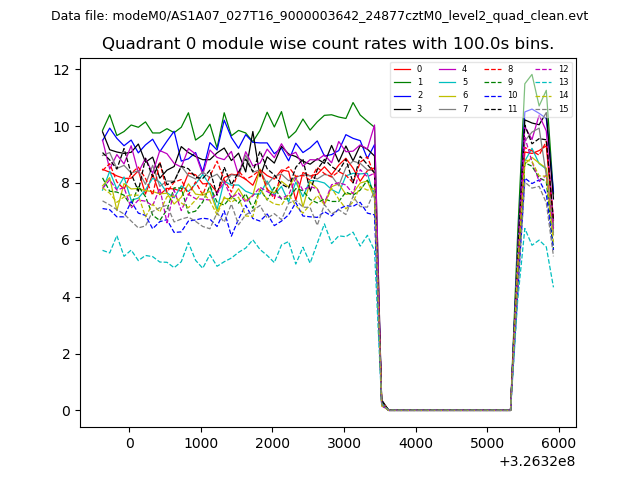

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

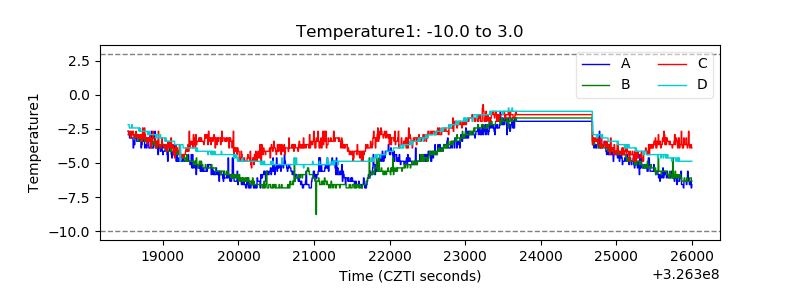

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

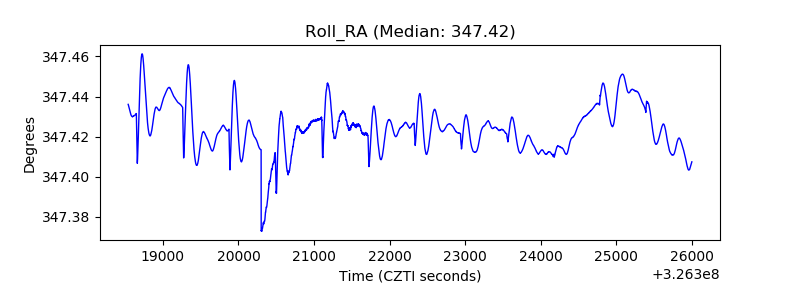

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

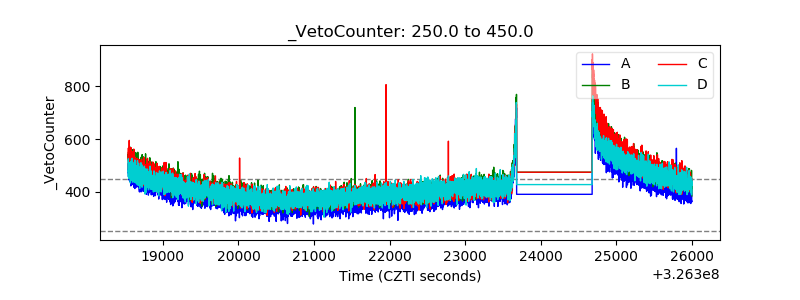

| Veto Counter |  |
