| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T16_9000003642_24880cztM0_level2.evt | modeM0/AS1A07_027T16_9000003642_24880cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,104,000 | 117,645,120 |
| Size | 501.7 MB | 112.2 MB |
| Events in quadrant A | 3,243,731 | 790,333 |
| Events in quadrant B | 3,314,874 | 806,168 |
| Events in quadrant C | 4,357,985 | 773,274 |
| Events in quadrant D | 4,589,245 | 753,486 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13612 | 2 |
| B | 0 | 13861 | 3 |
| C | 0 | 16983 | 2 |
| D | 0 | 18175 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6304 | 15 | 0.237944% |
| B | 6303 | 55 | 0.872600% |
| C | 6303 | 349 | 5.537046% |
| D | 6303 | 129 | 2.046644% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6305 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7563 | 6304 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7563 | 6304 | 183 | 183 | 2.42% | 2.90% |  |
| D | 7563 | 6304 | 89 | 89 | 1.18% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 14403 | 82.11 | 834 | 817 | 165.5 |
| A | 4 | 2 | 12878 | 72.89 | 834 | 817 | 165.5 |
| A | 13 | 254 | 10021 | 55.62 | 834 | 817 | 165.5 |
| B | 0 | 190 | 24979 | 155.45 | 834 | 816 | 155.4 |
| B | 12 | 111 | 18366 | 112.9 | 834 | 816 | 155.4 |
| B | 11 | 111 | 16549 | 101.21 | 834 | 816 | 155.4 |
| C | 7 | 247 | 1052481 | 5667.2 | 804 | 812 | 185.6 |
| C | 14 | 238 | 129388 | 692.87 | 804 | 812 | 185.6 |
| C | 2 | 16 | 34159 | 179.7 | 804 | 812 | 185.6 |
| D | 8 | 195 | 963346 | 4853.17 | 823 | 802 | 198.3 |
| D | 1 | 52 | 466440 | 2347.76 | 823 | 802 | 198.3 |
| D | 2 | 234 | 24215 | 118.05 | 823 | 802 | 198.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

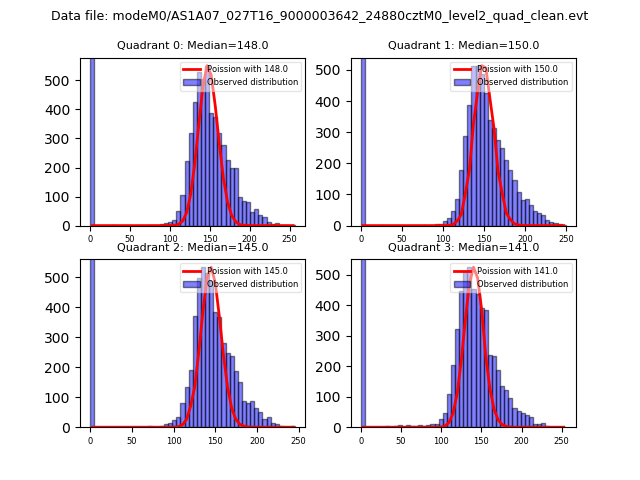

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

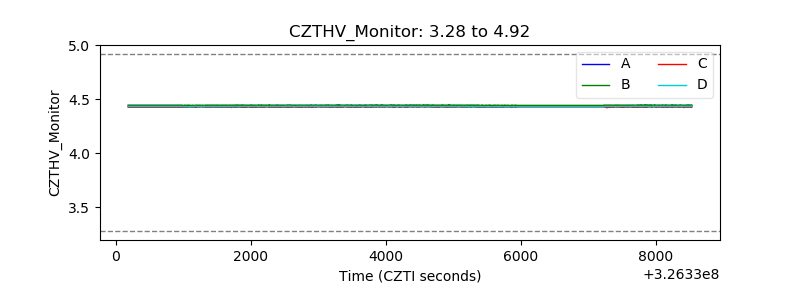

| CZT HV Monitor |  |
| D_VDD |  |

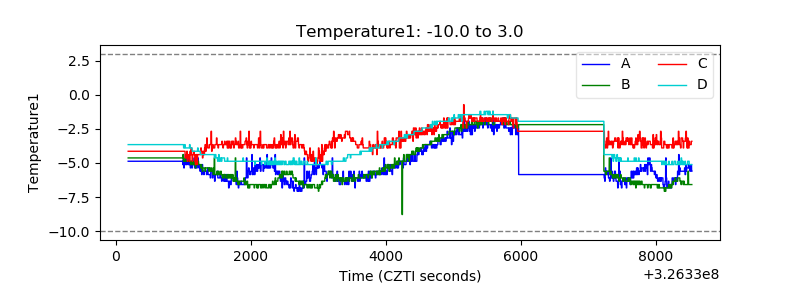

| Temperature 1 |  |

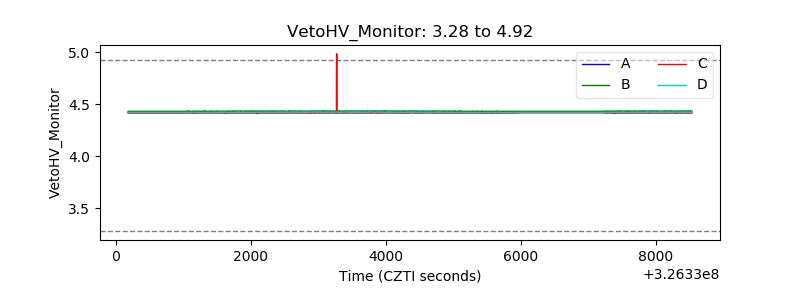

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

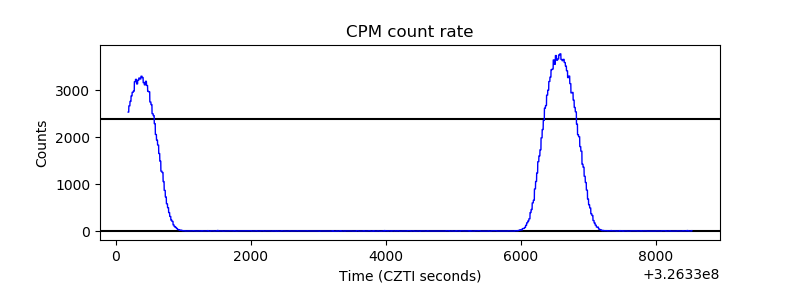

| _CPM_Rate |  |

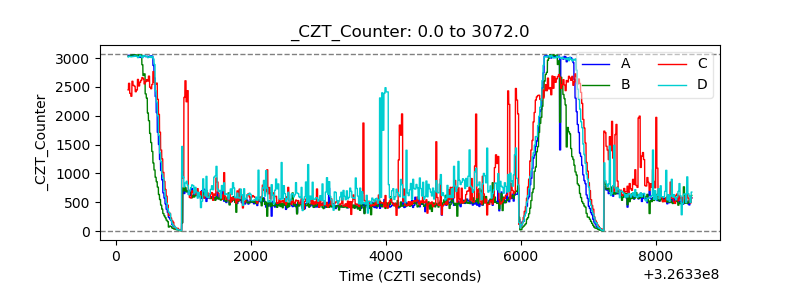

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

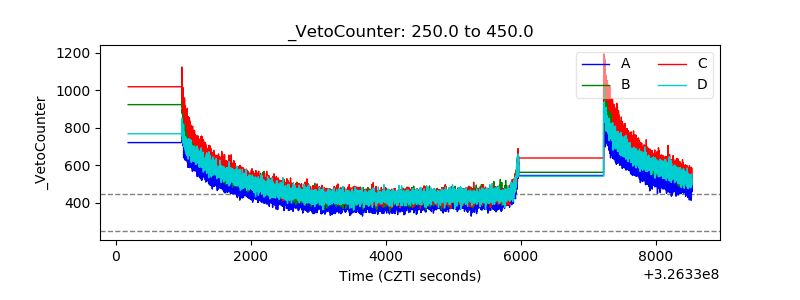

| Veto Counter |  |
