| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T16_9000003642_24883cztM0_level2.evt | modeM0/AS1A07_027T16_9000003642_24883cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,927,360 | 105,537,600 |
| Size | 515.9 MB | 100.6 MB |
| Events in quadrant A | 3,567,030 | 694,137 |
| Events in quadrant B | 3,338,576 | 710,174 |
| Events in quadrant C | 3,710,736 | 687,678 |
| Events in quadrant D | 5,330,711 | 656,710 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14511 | 2 |
| B | 0 | 13726 | 2 |
| C | 0 | 14887 | 3 |
| D | 0 | 20043 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6414 | 56 | 0.873090% |
| B | 6414 | 59 | 0.919863% |
| C | 6413 | 257 | 4.007485% |
| D | 6413 | 723 | 11.273975% |

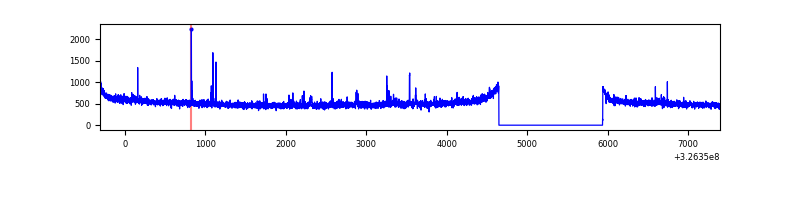

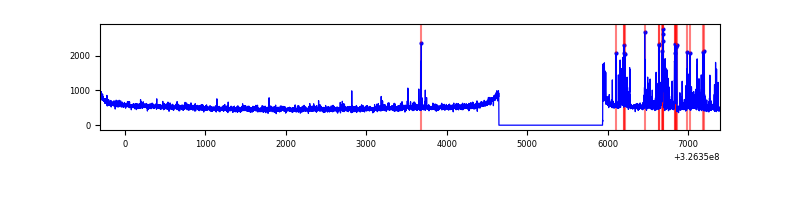

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7704 | 6415 | 21 | 21 | 0.27% | 0.33% |  |
| B | 7704 | 6415 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7703 | 6414 | 125 | 125 | 1.62% | 1.95% |  |
| D | 7703 | 6414 | 563 | 563 | 7.31% | 8.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 299995 | 1784.86 | 848 | 832 | 167.6 |
| A | 13 | 254 | 10147 | 55.57 | 848 | 832 | 167.6 |
| A | 0 | 226 | 7240 | 38.23 | 848 | 832 | 167.6 |
| B | 12 | 111 | 18465 | 112.35 | 840 | 819 | 157.1 |
| B | 11 | 111 | 16620 | 100.6 | 840 | 819 | 157.1 |
| B | 14 | 111 | 14994 | 90.25 | 840 | 819 | 157.1 |
| C | 7 | 247 | 317838 | 1649.63 | 829 | 838 | 192.2 |
| C | 14 | 238 | 131683 | 680.9 | 829 | 838 | 192.2 |
| C | 0 | 10 | 23782 | 119.4 | 829 | 838 | 192.2 |
| D | 1 | 52 | 1923197 | 9931.74 | 804 | 781 | 193.6 |
| D | 8 | 195 | 322579 | 1662.5 | 804 | 781 | 193.6 |
| D | 7 | 238 | 44707 | 226.93 | 804 | 781 | 193.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

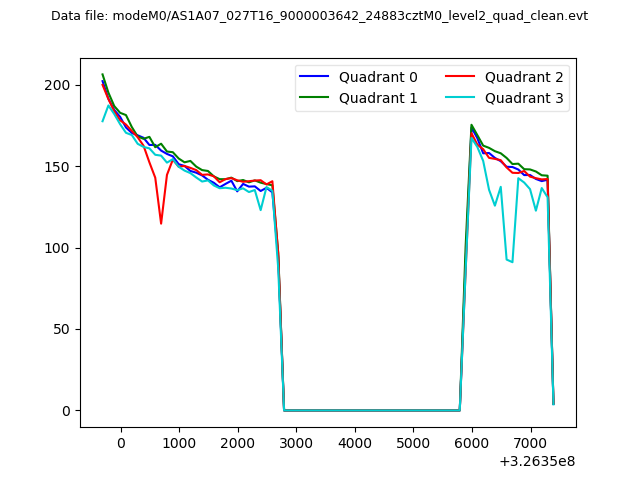

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

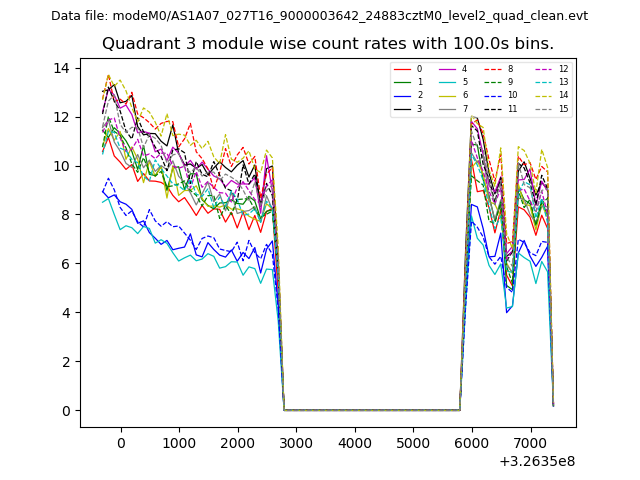

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

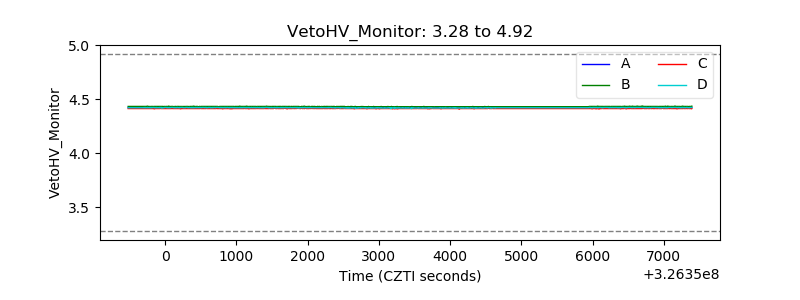

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

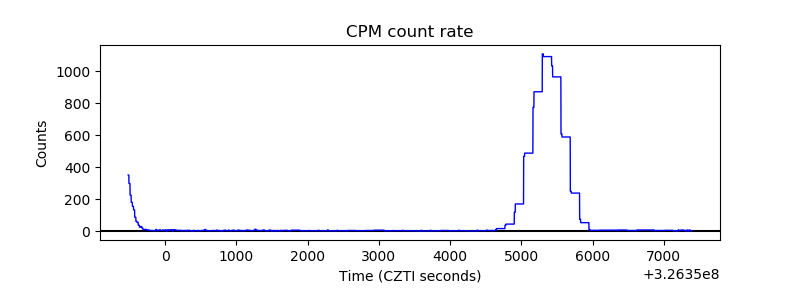

| _CPM_Rate |  |

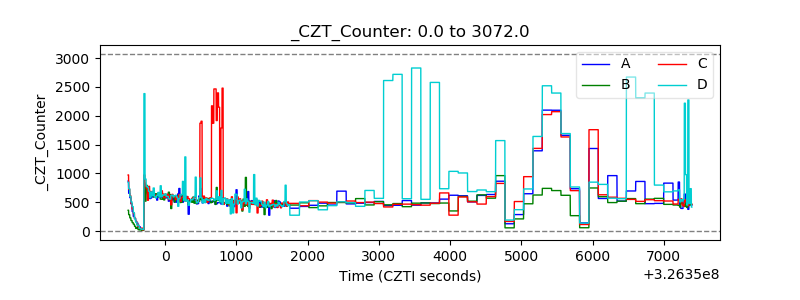

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

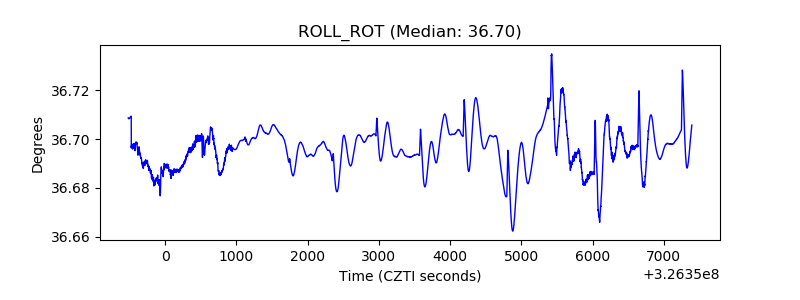

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
