| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T16_9000003642_24887cztM0_level2.evt | modeM0/AS1A07_027T16_9000003642_24887cztM0_level2_quad_clean.evt |
| Size (bytes) | 244,028,160 | 39,257,280 |
| Size | 232.7 MB | 37.4 MB |
| Events in quadrant A | 1,681,468 | 231,940 |
| Events in quadrant B | 1,719,364 | 235,762 |
| Events in quadrant C | 1,705,626 | 227,747 |
| Events in quadrant D | 2,025,247 | 225,669 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7582 | 0 |
| B | 0 | 7640 | 0 |
| C | 0 | 7582 | 0 |
| D | 0 | 8393 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3783 | 4 | 0.105736% |
| B | 3784 | 2 | 0.052854% |
| C | 3784 | 12 | 0.317125% |
| D | 3784 | 2 | 0.052854% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3783 | 3783 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3784 | 3784 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3784 | 3784 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3784 | 3784 | 1 | 1 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 5663 | 59.11 | 434 | 425 | 88.6 |
| A | 3 | 137 | 3873 | 38.91 | 434 | 425 | 88.6 |
| A | 0 | 226 | 3775 | 37.8 | 434 | 425 | 88.6 |
| B | 0 | 190 | 21399 | 253.54 | 427 | 417 | 82.8 |
| B | 12 | 111 | 9906 | 114.66 | 427 | 417 | 82.8 |
| B | 0 | 230 | 8833 | 101.7 | 427 | 417 | 82.8 |
| C | 14 | 238 | 65616 | 666.6 | 413 | 415 | 97.8 |
| C | 7 | 247 | 28283 | 284.91 | 413 | 415 | 97.8 |
| C | 13 | 61 | 2890 | 25.3 | 413 | 415 | 97.8 |
| D | 8 | 195 | 367456 | 3515.09 | 424 | 411 | 104.4 |
| D | 2 | 244 | 21709 | 203.97 | 424 | 411 | 104.4 |
| D | 2 | 234 | 17218 | 160.96 | 424 | 411 | 104.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

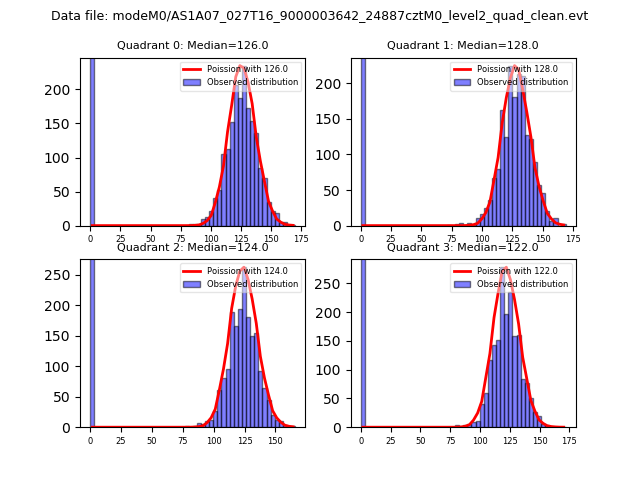

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

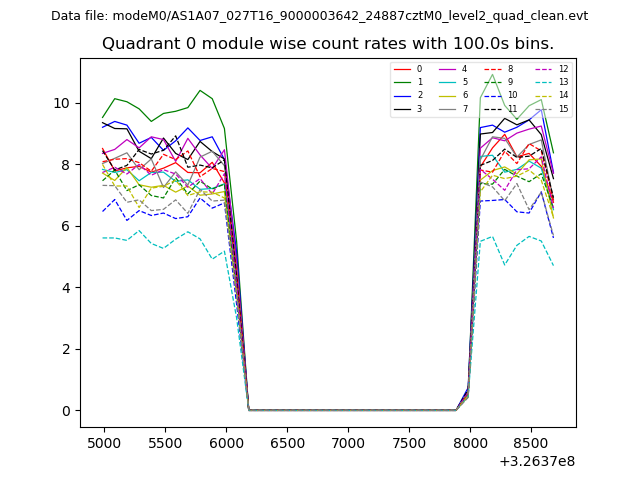

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

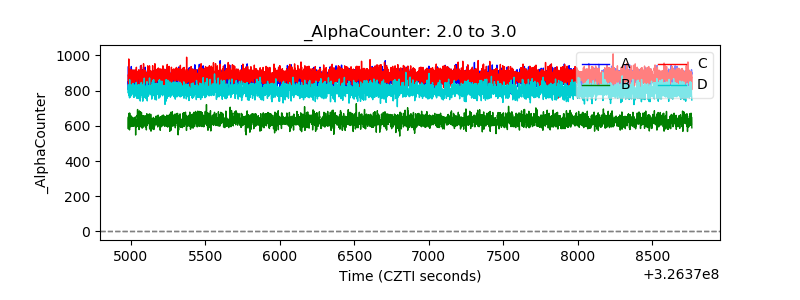

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

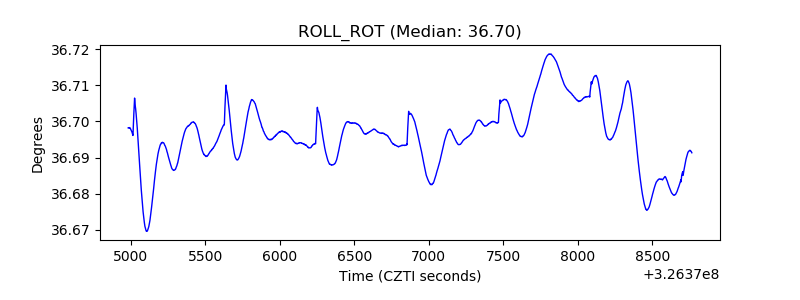

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

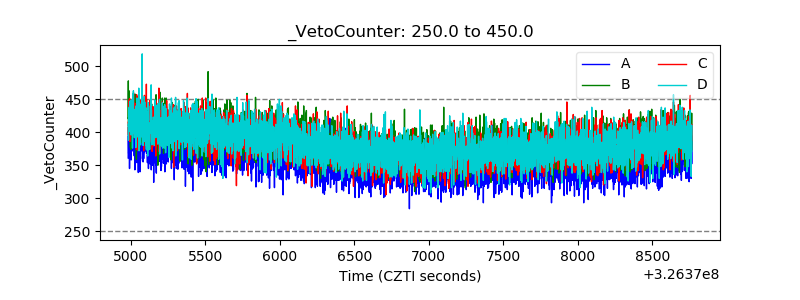

| Veto Counter |  |
